Broadcast grey processing gives more image details
Superior brightness and color uniformity maintains smooth and complete image quality

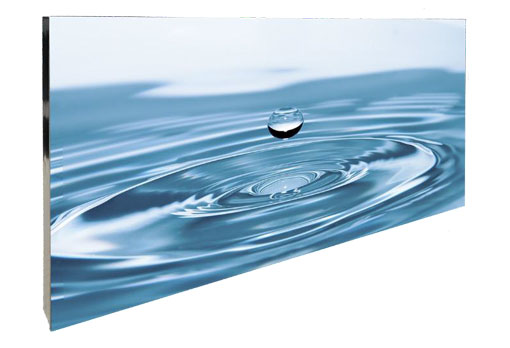

Bezel-free native 1080P, 4K and customized resolution LED video wall system
High brightness provides vivid images in a range of lighting conditions
Superior contrast ratio
Ultra high refresh rate
Wide view of field:160°(H)/ 140°(V)
Low heating and natural heat dissipation mechanism enables fan-less design, no noise
Support 7*24 working and lower power consumption
Long service life
| Model | MW7225-M |
| LED Module | |
| Pixel Pitch | P2.5 |
| Resolution(W×H) | 128×64 |
| Dimensions(mm) | 320(W)×160(H)×12(D) |
| Pixel Density(dots/m2) | 160000 |
| Surface Evenness(mm) | ≤0.2 |
| Module Weight(kg) | 0.4 |
| Optical | |
| Single Pixel Brightness Correction | Support |
| Single Pixel Color Correction | Support |
| Brightness(nits) | 800 |
| Color Temperature(K) | 3000 to 9000 adjustable |
| Viewing Angle | Horizontal 160°, Vertical 140° |
| Center distance deviation of LED | <3% |
| Brightness Uniformity | ≥97% |
| Color Uniformity | ±0.003Cx,Cy |
| Contrast | 4000:1 |
| Processing Performance | |
| Grey Level | 14bit |
| Driving Mode（S） | Constant current driving, 1/32 scan |
| Frame Frequency(Hz) | 50/60 |
| Refresh Rate(Hz) | 3840 |
| Electrical | |
| Power Supply(V) | AC 200-240 |
| Average Consumption(W/㎡) | 133 |
| Max Consumption(W/㎡) | 400 |
| General | |
| Maintenance Mode | Front/Rear |
| Ingress Protection | IP30 |
| Operation Temperature/Humidity (℃/ RH) | -10～+40℃/10～80%RH(No Condensation) |
| Storage Temperature/Humidity(℃/RH) | -20～+60℃/10～85%(No Condensation) |
| Working Hours(H) | 50000 |
