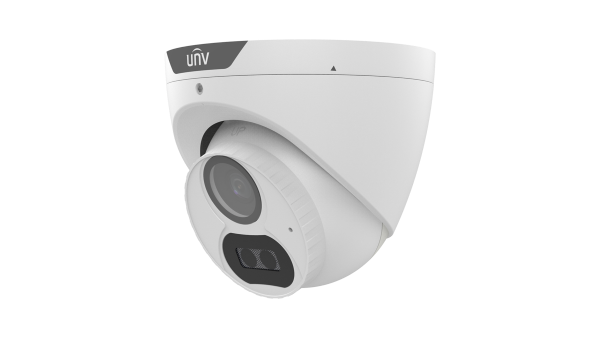

| UAC-T125-APF28LM | ||||||||
| Camera | ||||||||
| Max Resolution | 5 MP | |||||||
| Sensor Size | 1/2.7" CMOS | |||||||
| Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |||||||
| Lens | ||||||||
| Focus | 2.8 mm | |||||||
| Lens Mount | M12 | |||||||
| Angle of View (H) | 109.1° | |||||||
| Angle of View (V) | 60.9° | |||||||
| Angle of View (D) | 126.7° | |||||||
| Illuminator | ||||||||
| Illuminator Number | Two IR illuminators | |||||||
| Illumination Distance | 40m | |||||||
| Lifetime | ≥ 60000 hours | |||||||
| Video | ||||||||
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |||||||
| Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC | |||||||
| Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
| Image | ||||||||
| Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
| Day/Night | Three modes: Auto (default), Day, Night | |||||||
| Digital Noise Reduction | 2D | |||||||
| White Balance | Two modes: Auto (default), Manual | |||||||
| WDR | DWDR | |||||||
| Smart IR | Support | |||||||
| Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
| Audio | ||||||||
| Built-in Mic | Support | |||||||
| Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps * Audio function of the POC series camera is only available when the camera is used with our POC series XVRs. | |||||||
| Interface | ||||||||
| Power Interface | 5.5 mm Power Interface | |||||||
| Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
| Operating Environment | ||||||||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
| Humidity | ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
| General | ||||||||
| Power | DC 12 V±25%/PoC | |||||||
| Power Consumption | MAX 3.4W | |||||||
| Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
| Dimensions | Φ111mm*98mm (diameter*height) | |||||||
| Material | Metal + Plastic | |||||||
| Weight | 370g (0.82lb) | |||||||
| OSD Menu Language | 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
| Safety | CE-LVD (EN 62368-1) | |||||||
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) | |||||||
