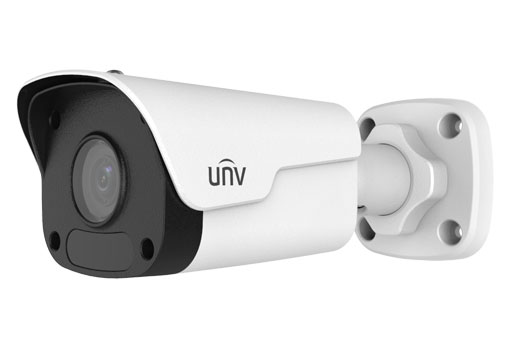

IPC2122LR3-PF40(60)M-D 2MP MiniFixed Bullet Network Camera—Zhejiang Uniview Technologies Co., Ltd.

Optics
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -30°C to 60°C (-22°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis

		IPC2122LR3-PF40M-D				IPC2122LR3-PF60M-D
Camera
Sensor		1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens		4.0mm@F2.0				6.0mm@F2.0
DORI Distance		Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
		4.0	66.7		26.7		13.3		6.7
		6.0	90		36		18		9
Angle of View (H)		86.5°				55.4°
Angle of View (V)		44.1°				30.2°
Angle of View (O)		106.4°				68.1°
Adjustment angle		Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate: 0° ~ 360°
Shutter		Auto/Manual, 1 ~ 1/100000s
Minimum Illumination		Colour: 0.02Lux (F2.0, AGC ON) 0Lux with IR on
Digital noise reduction		2D/3D DNR
Day/Night		IR-cut filter with auto switch (ICR)
S/N		>52dB
IR Range		Up to 30m (98ft) IR range
Wavelength		850nm
IR On/Off Control		Auto/Manual
Defog		Digital Defog
WDR		DWDR
Video
Video Compression		Ultra 265, H.265, H.264, MJPEG
H.264 code profile		Baseline profile, Main Profile
Frame Rate		Main Stream: 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; Third Stream: CIF (352*288), Max 30fps
Video Bit Rate		128 Kbps~16 Mbps
OSD		Up to 4 OSDs
Privacy Mask		Up to 8 areas
ROI		Up to 2 areas
Motion Detection		Up to 4 areas
White Balance		Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction		2D/3D DNR
Smart IR		Support
Flip		Normal/Vertical/Horizontal/180°
Dewarping		Supported
HLC		Supported
BLC		Supported
Network
Protocols		IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration		ONVIF (Profile S, Profile T), API
Client		EZStation EZView EZLive
Web Browser		Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
		Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network		10/100M Base-TX Ethernet
Certifications
Certifications	CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15
General
Power		DC 12V±25%, PoE (IEEE 802.3af)
		Power consumption: Max 4.5W
Dimensions (L × W × H)		167.3 × 62.9 × 62.7mm (6.6” × 2.5” × 2.5”)
Net Weight		0.45kg (0.99lb)
Material		Metal
Working Environment		-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment		-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection		2KV
Ingress Protection		IP67
Reset Button		Supported
