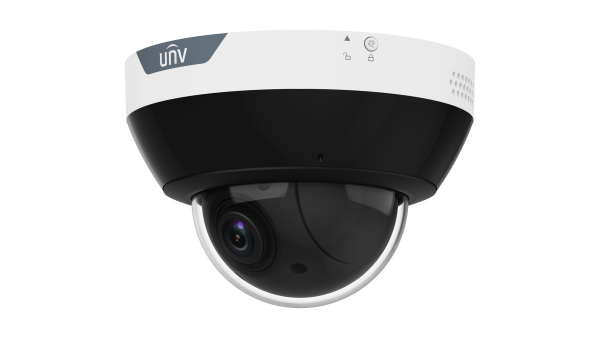

| IPC6234LR-AX5C-VG3 | ||||||||
| Camera | ||||||||
| Max Resolution | 4 MP | |||||||
| Sensor | 1/2.9" CMOS | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| WDR | 120 dB | |||||||
| S/N | > 56 dB | |||||||
| Case Type | PT | |||||||
| Lens | ||||||||
| Focal Length | 2.7 to 13.5 mm | |||||||
| Digital Zoom | 16X | |||||||
| Optical Zoom | 5X | |||||||
| Iris | F1.68 to F3.18 | |||||||
| DORI | ||||||||
| DORI Distance (Detect) | 75.8 m to 227.9 m (248.8 ft. to 747.8 ft) | |||||||
| DORI Distance (Observe) | 30.3 m to 91.2 m (99.4 ft. to 299.1 ft) | |||||||
| DORI Distance (Recognize) | 15.2 m to 45.6 m (49.9 ft. to 149.6 ft) | |||||||
| DORI Distance (Identify) | 7.6 m to 22.8 m (24.9 ft. to 74.8 ft) | |||||||
| Video | ||||||||
| Video Compression | H.265, H.264, MJPEG, Ultra 265 | |||||||
| Frame Rate | Main Stream Max: 4 MP (2560 × 1440), 30 fps Main Stream Default: 4 MP (2560 × 1440), 25 fps Sub Stream Max: 720 × 576, 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 6144 Kbps | |||||||
| U-code | Support | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video Stream | Dual streams | |||||||
| OSD | Up to 4 OSDs | |||||||
| Events | ||||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication | |||||||
| Audio | ||||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Audio Compression | G.711U, G.711A, AAC-LC | |||||||
| Sampling Rate | G.711U/G.711A: 8 kHz, 16 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz | |||||||
| Storage | ||||||||
| Edge Storage | MicroSD, up to 512 GB | |||||||
| Network Storage | NAS (NFS) | |||||||
| Network | ||||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Protocols | SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP | |||||||
| Compatible Integration | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 | |||||||
| Client | EZStation, UniEase, UniTools Pro | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| PTZ | ||||||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
| Patrol Stay Time | 200 s to 1800 s | |||||||
| Preset Image Freeze | N/A | |||||||
| Tilt Range | 10° to 90° | |||||||
| Home Position | Support | |||||||
| Pan Speed | 0.1°/s to 55°/s | |||||||
| Pan Range | 355° | |||||||
| Tilt Speed | 0.1°/s to 55°/s | |||||||
| Number of Presets | 1024 | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance | |||||||
| BLC | Support | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180° | |||||||
| HLC | Support | |||||||
| Defog | N/A | |||||||
| Low Illumination Characteristics | LightHunter | |||||||
| Image Stabilization | DIS | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Alarm I/O | 1/1 | |||||||
| Built-in Speaker | Support | |||||||
| Built-in Mic | Built-in dual-mic | |||||||
| Intelligent | ||||||||
| People Counting | Support people flow counting and crowd density detection | |||||||
| Exception Detection | Object removed, Object Left Behind | |||||||
| Auto Tracking | Support | |||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Illuminator | ||||||||
| Illumination Distance (IR) | 20 m (65.6 ft) | |||||||
| Certification | ||||||||
| Safety | UL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1) | |||||||
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B) | |||||||
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) ; IK10 (IEC62262) | |||||||
| General | ||||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø129 mm × 91 mm (Ø5.1" × 3.6") (Ø × H) | |||||||
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Power | DC 12 V (±25%), PoE af | |||||||
| Configurable | ||||||||
| P/N | Support | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
