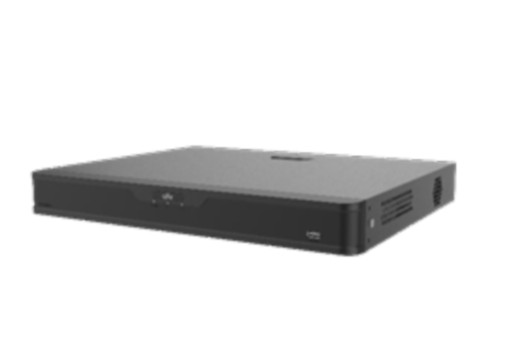

NVR302-B-IQ - Uniview - Leader of AIoT Solution

Model

NVR302-09B-IQ

NVR302-16B-IQ

NVR302-32B-IQ

Decoding

Decoding Format

Ultra 265,H.265,H.264

Decoding Capability

Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 9 x1080P@30Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 9 x720P@30

Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x1080P@30, 16 x 720P@30Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x720P@30

Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x1080P@30, 20 x 720P@30, 32 x D1Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x720P@30, 32 x D1

Decoding CapabilityDescription

The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

128Mbps

Remote Users

128

Protocols

TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP,IPv6, IPv4, 802.1x, UPnP IGMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

Browser (Plugin)

IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input

9-ch

16-ch

32-ch

RCA Audio Input

1-ch

Peripheral Input

Ip Speaker

16-ch

POS

All channels

Video/Audio Output

HDMI Output

4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz,1024 × 768/60 Hz

RCA Audio Output

1-ch

Liveview Display

1/4/6/8/9

1/4/6/8/9/16

1/4/6/8/9/16/25/32

Corridor Mode Screen

3/4/5/7/9

3/4/5/7/9/10/12/16

3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch,RCA(Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
