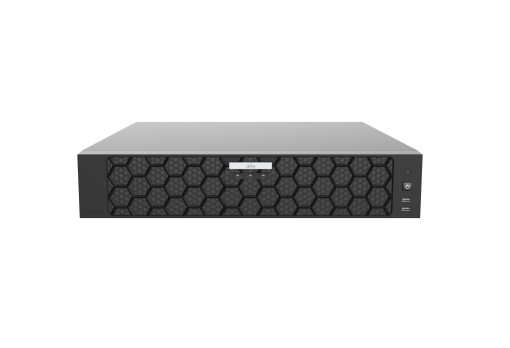

NVR508-E-IQ - Uniview - Leader of AIoT Solution

Support Ultra 265/H.265/H.264 video formats
Support 32/64-channel input
Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
Support up to 32 Megapixels resolution recording
Support N+1 Hot spare
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Model	NVR508-32E-IQ	NVR508-64E-IQ
Decoding
Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x1080P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x1080P@30, 32 x 720P@30	Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x1080P@30, 64 x 720P@30Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x5MP@30, 12 x 4MP@30, 16 x 3MP@30, 24 x1080P@30, 48 x 720P@30
Decoding CapabilityDescription	The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	Smart Off：384MbpsSmart On：200Mbps	Smart off: 512 Mbps, Smart on: 200 Mbps
Outgoing Bandwidth	Smart Off：384MbpsSmart On：200Mbps	Smart off: 512 Mbps, Smart on: 200 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP,802.1x, IPv6, IPv4 IGMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Video/Audio Input
IP Video Input	32-ch	64-ch
RCA Audio Input	1-ch
Peripheral Input
POS	All channels
Video/Audio Output
HDMI Output	4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 ×1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	2-ch
Liveview Display	HDMI1 and VGA1: 1/4/6/8/9/16/25/32;HDMI2 and VGA2: 1/4/6/8/9/16	HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64;HDMI2 and VGA2: 1/4/6/8/9/16
Corridor Mode Screen	HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio	1-ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)

Datasheet of NVR508-32E-IQ
