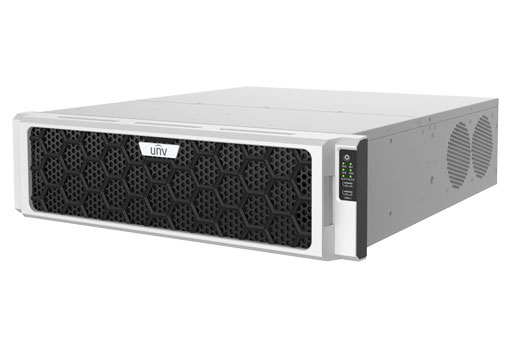

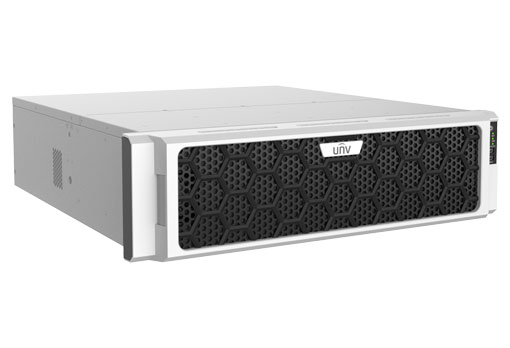

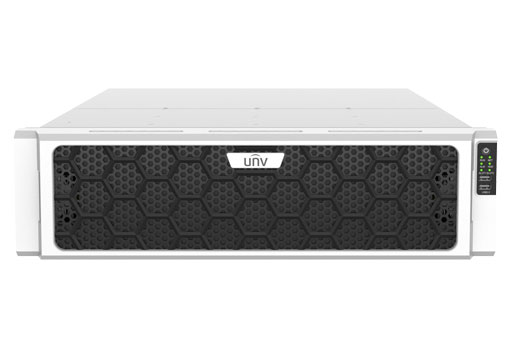

NVR816 - Uniview - Leader of AIoT Solution

Support Ultra 265/H.265/H.264 video formats

64/128-channel input

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution

HDMI1, HDMI2 and VGA independent outputs provided

Up to 12 Megapixels resolution recording

Redundant power supply optional

Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable

16 SATA HDDs, up to 16TB for each HDD

Support 2 miniSAS Interfaces

Support 12V power output

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Support N+1 Hot spare

Model	NVR816-64	NVR816-128
Video/Audio Input
IP Video Input	64-ch	128-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	512Mbps
Outgoing Bandwidth	512Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	16-ch
Live View Display	VGA: 1/4/6/8/9/16/25/36 HDMI1, HDMI2: 1/4/6/8/9/16/25/36/64
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot	64-ch snapshot, up to 4Kresolution	128-ch snapshot, up to 4K resolution
Decoding
Decoding Format	Ultra 265, H.265, H.264
Live View/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	3 x 12MP@25, 4 x 4K@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA	16 SATA interfaces
Capacity	up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Extension board	2
miniSAS	2 miniSAS ports
eSATA	1 eSATA interface
Disk Group	Support
Disk Array Type	RAID 0, 1, 5, 6, 10, 50, 60
Smart
VCA Detection by IPC	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, Search by Image, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera	Total 64-ch
Face Picture Library	Up to 128 face picture libraries, with up to 500,000 face pictures in total
External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
USB Interface	Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0
RS232	1
RS485	1
Alarm In	24-ch
Alarm Out	8-ch
Power Output	12V
General
Power Supply	100 ~ 240V AC Power Consumption: ≤ 65 W (without HDD)
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions	533mm × 482mm × 131.0mm (21.0" × 19.0" × 5.1")
Weight (without HDD)	≤ 12.5 Kg (27.56 lb)
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Datasheet of NVR816
