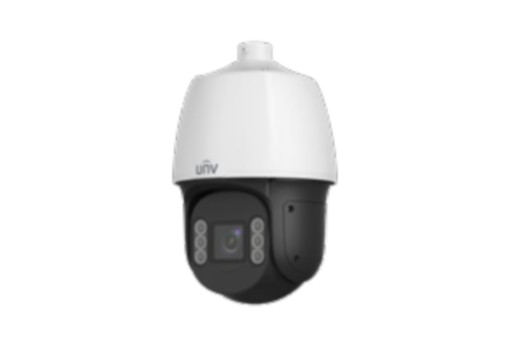

IPC6622SR-X33-VD2 - Uniview - Leader of AIoT Solution

IPC6622SR-X33-VD2

Özellikleri

İndirme

Want to learn more?

Model	IPC6622SR-X33-VD2
Camera
Max Resolution	2 MP
Sensor	1/2.8" CMOS
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
Min. Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with Light
Lens
Focal Length	4.5 to 148.5 mm
Digital Zoom	12X
Optical Zoom	33X
Iris	F1.5 to F4.0
Field of View (H)	58.94° to 2.85°
Field of View (V)	33.18° to 1.60°
Field of View (D)	72.50° to 3.36°
DORI
DORI Distance (Detect)	72.9 m to 2187.9 m (239.3 ft. to 7178.3 ft.)
DORI Distance (Observe)	29.2 m to 875.2 m (95.7 ft. to 2871.3 ft.)
DORI Distance (Recognize)	14.6 m to 437.6 m (47.9 ft. to 1435.7 ft.)
DORI Distance (Identify)	7.3 m to 218.8 m (23.9 ft. to 717.8 ft.)
Video
Video Compression	H.265, H.264, MJPEG, Ultra 265
Frame Rate	Main Stream Max: 1080P (1920 × 1080), 60 fpsMain Stream Default: 1080P (1920 × 1080), 25 fpsSub Stream Max: 1080P (1920 × 1080), 60 fpsThird Stream Max: D1 (720 × 576), 60 fpsFourth Stream Max: D1 (720 × 576), 60 fpsFifth Stream Max: D1 (720 × 576), 60 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
Privacy Mask	24 areas, up to 8 areas per scene
ROI	Up to 8 areas
Video Stream	Five streams
OSD	Up to 10 OSDs
Frame Rate Recommendation	1080P@60 fps + 1080P@60 fps + D1@60fp + D1@60fp + D1@60fp
Events
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, Userauthentication, Alarm input, Alarm output, HTTP authentication
Audio
Audio Compression	G.711U, G.711A
