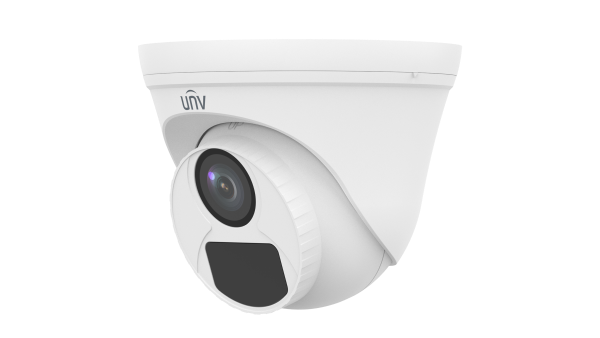

UAC-T115-F28 - Uniview - مزود عالمي لحلول AIoT

	UAC-T115-F28	UAC-T115-F40
Camera
Max Resolution	5 MP
Sensor Size	1/2.7" CMOS
Min. Illumination	0.02 lux (F2.0, AGC ON) 0 lux (IR on)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	102.2°	82.9°
Angle of View (V)	53.9°	46.1°
Angle of View (D)	124.8°	100.0°
Illuminator
Illuminator Number	One IR illuminator
Illumination Distance	20m
Lifetime	≥ 60000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame Rate	TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180°horizontal flip, 180°vertical flip
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤ 95% RH (non-condensing)
Surge Protection	4 KV for power, 4 KV for video output interfaces
General
Power	DC 12 V ± 25%
Power Consumption	MAX 3.6W
Mount	Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions	Φ118mm96mm (diameterheight)
Material	Plastic
Weight	182g(0.401lb)
OSD Menu Language	11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

TR-JB03-I-IN

Junction Box for Turret Camera(Support wiring from behind)

TR-SE24-IN

Dome Pendent Mounting Pole 200mm

TR-SE24-A-IN

Dome Pendent Mounting Pole 500mm

TR-CM24-IN

Dome Pendent Mounting Bracket(Indoor)

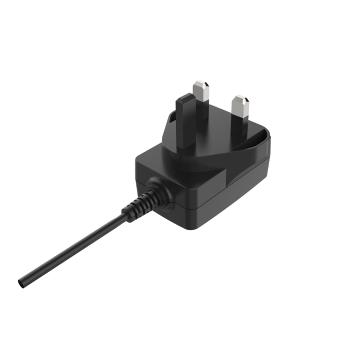

PWR-DC1201A-UK

DC12V/1A Wall Plug British Standard Power Adapter

PWR-DC1201B-UK

UNV DC12V/1A Wall Plug British Standard Power Adapter(Colorful Bag)

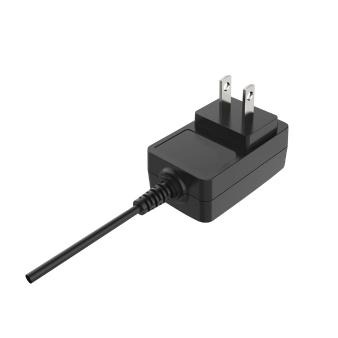

PWR-DC1201A-US

DC12V/1A Wall Plug American Standard Power Adapter

PWR-DC1201B-US

UNV DC12V/1A Wall Plug American Standard Power Adapter(Colorful Bag)

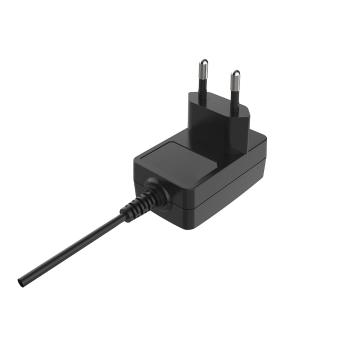

PWR-DC1201A-EU

DC12V/1A Wall Plug European Standard Power Adapter

PWR-DC1201B-EU

UNV DC12V/1A Wall Plug European Standard Power Adapter(Colorful Bag)

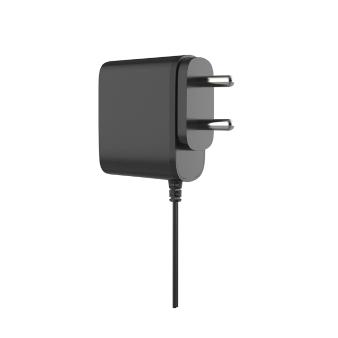

PWR-DC1201A-IND

UNV DC12V/1A Wall Plug Indian Standard Power Adapter-Colorful Bag

TR-JB07/WM03-G-IN-V2

Wall Mounting Assembling Bracket For 32 Fix-dome&Mini Fix-dome&Plastic Turret Camera

TR-UC08-C-V2

Bullet&Dome Corner Mounting Bracket

TR-WM03-D-IN-V2

Wall Mounting Bracket for 32 Fix-dome&Mini Fix-dome&Plastic Turret Camera

TR-UP06-C-IN-V2

Pole Mounting Bracket for Bullet Junction Box Only

صحيفة البيانات
صورة عالية الدقة
دليل المستخدم
دليل سريع
الأبعاد

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 11:55:56	UNV UAC-T115-F28(40) 5MP HD Fixed IR Turret Analog Camera.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/8/15 3:01:00	UAC-T115-F28_HD_Image_1.png	png	Download
HD Image	2026/8/15 3:01:00	UAC-T115-F28_HD_Image_2.png	png	Download
HD Image	2026/8/15 3:01:00	UAC-T115-F28_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
User Manual	2025/7/1 10:46:07	UNV-Analog Cameras User Manual.pdf	English	pdf	Preview	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/7/3 5:00:38	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/8/15 3:01:00	UAC-T115-F28_Dimensions_1.png	Download
