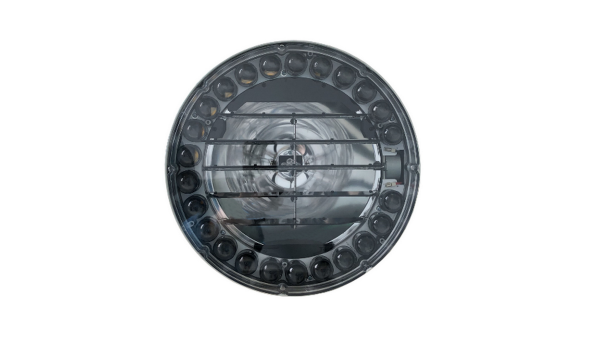

| LAMP-IH25@M3-F-OS | ||||||||
| LED strobe | ||||||||
| Power consumption | Default power is 4.4W(≤ 40W) | |||||||
| Light type | Infrared flash & white flash & infrared strobe | |||||||
| Luminous angle | 10° | |||||||
| Trigger frequency | 50Hz/60Hz | |||||||
| Optimal fill light distance | 15~30m | |||||||
| Trigger mode | Level trigger, switch trigger | |||||||
| Beam angle | 0-40% | |||||||
| LED lamp bead wavelength | 850nm | |||||||
| White light flash | ||||||||
| White light flash lifetime | More than 10 million times | |||||||
| Output energy | ≤100J | |||||||
| Flash brightness | 8-level adjustable | |||||||
| Color temperature | ≤7000K | |||||||
| Return time | ≤50ms | |||||||
| Duration of flash | 1/10000s~1/1000s | |||||||
| White light flash trigger mode | Level trigger | |||||||
| Gas explosion level | 1~8 level adjustable | |||||||
| Fill light distance | 15~30 m | |||||||
| Red and White Switch | Switch by frequency | |||||||
| Filter form | Window shades | |||||||
| Be in common use | ||||||||
| Dimensions (L × W × H) | 452*279*279mm | |||||||
| Weight | 6.8kg | |||||||
| Ingress protection | IP65 | |||||||
| Bracket rotation angle | -45° to 45° | |||||||
| Power supply | 110 ~ 220Vac | |||||||
| Length of tail line | 4.5m | |||||||
| Communication interface | RS485 | |||||||
| Operating environment | -40℃~70℃,10~95%RH | |||||||
