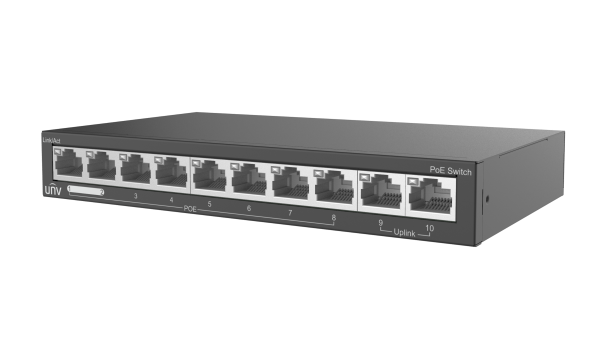

| NSW2020-10T-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 10×100Mbps network ports (RJ45), including 8 PoE ports | |||||||
| Switching capacity | 2 Gbps | |||||||
| Packet Buffer | 448K bit | |||||||
| Forwarding performance | 1.49Mpps | |||||||
| Power Supply | DC: 48/51V, powered by adapter(100 to 240V, 50/60Hz) | |||||||
| MAC | 1K | |||||||
| PoE Standard | IEEE 802.3 at, IEEE 802.3af | |||||||
| PoE Mode | ModeB (4578) | |||||||
| Max.PoE Power | Max capacity:88W Max capacity for single port: 30W | |||||||
| Prior Ports | 1 to 2 | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Cooling Fans | 0 | |||||||
| Max.Power | 94W | |||||||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | POWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX: off :The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT: Off: No link Steady on: Linked Flashing: Transmitting data | |||||||
| Dimensions (W×D×H) | 171*103*25mm | |||||||
| Weight | 0.29KG | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
