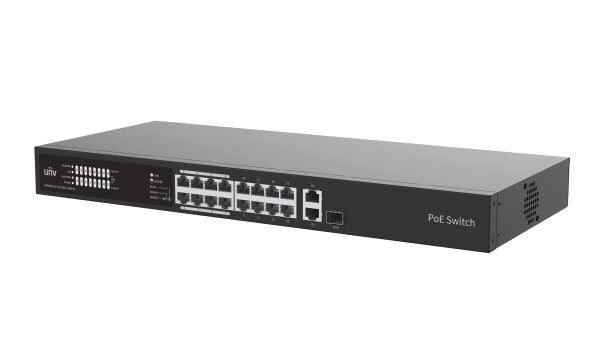

NSW2020-16T1GT1GC-LPOE-IN

Unmanaged Ethernet Switch(PoE)

• Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

مواصفات المنتج

المستندات ذات الصلة

كيفية الشراء

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/5 15:15:26	UNV NSW2020-16T1GT1GC-LPOE-IN Ethernet Low Power PoE Switches.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/8/15 3:01:23	NSW2020-16T1GT1GC-LPOE-IN_HD_Image_1.png	png	Download
HD Image	2026/8/15 3:01:23	NSW2020-16T1GT1GC-LPOE-IN_HD_Image_2.png	png	Download
HD Image	2026/8/15 3:01:23	NSW2020-16T1GT1GC-LPOE-IN_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2026/6/24 16:00:39	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/8/15 3:01:23	NSW2020-16T1GT1GC-LPOE-IN_Dimensions_1.png	Download

Want to learn more?

Contact sales

0%

	NSW2020-16T1GT1GC-LPOE-IN
Hardware Specification
Ports Type	16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity	7.2 Gbps
Power Supply	AC: 100 to 240V, 50/60Hz
Forwarding performance	5.36Mpps
MAC	16K
Packet Buffer	4 M bit
PoE Mode	ModeB (4578)
Max.PoE Power	Max capacity:150W Max capacity for single port: 30W
Prior Ports	1 to 8
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	0
Max.Power	165W
Operating Temperature	0°C to 45°C (32°F to 113°F)
Operating Humidity	10% to 90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Dimensions (W×D×H)	44019544mm
Weight	1.99KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time
Compliance
NDAA Compliant	Support
