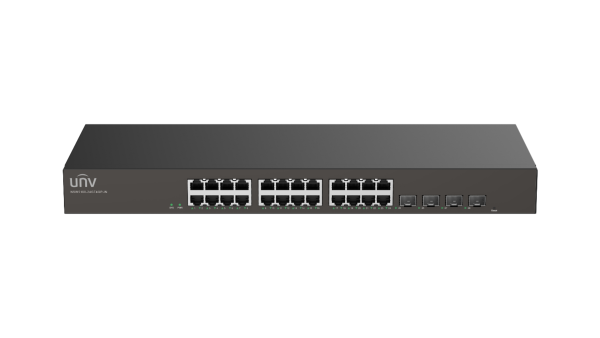

| NSW5100-24GT4GP-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 24*10/100/1000Mbps RJ45 port, 4*1000Mbps SFP port | |||||||
| Switching capacity | 56 Gbps | |||||||
| Forwarding performance | 41.66 Mpps | |||||||
| Packet Buffer | 3M bits | |||||||
| MAC | 8K | |||||||
| Cooling Fans | 0 | |||||||
| Max.Power | 20W | |||||||
| Power Supply | AC: 100 to 240V, 50/60Hz; | |||||||
| Weight | 1.90kg | |||||||
| Dimensions (W×D×H) | 440 × 180 × 44 mm | |||||||
| Operating Temperature | 0℃ to 45℃ | |||||||
| Operating Humidity | 5% to 95%, non-condensing | |||||||
| Indicator | PWR: Steady on: Normal power input. Off: Abnormal power input. LINK/ACT: Off: The port is disconnected. Steady on: The port is connected. Blinking: The port is transmitting data. | |||||||
| Software Specification | ||||||||
| Ethernet | Auto-negotiation, 10/100/1000M half-duplex/full-duplex. Support port rate adjustment. Support port flow control. Support link aggregation(Static-LAG & LACP). Support port flow statistics . Support port Loopback-detection. Support enabling/disabling ports . | |||||||
| MAC | 8K, auto-learning, auto-update | |||||||
| VLAN | Access/Trunk/Hybrid Default VLAN | |||||||
| Maintenance | Support a N :1 port mirroring. Allow to import, export, back up, and restore factory defaults on the Web interface. | |||||||
| Security | MAC/IP ACL Mac Limit | |||||||
| QoS | Support traffic classification based on DSCP/TOS. Support speed limit on ports and streams. Support SP, WRR queue scheduling. | |||||||
| Reliability | Support STP, RSTP, Support ERPS( single ring). | |||||||
| Multicast | Support IGMP v1/v2 snooping. | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
