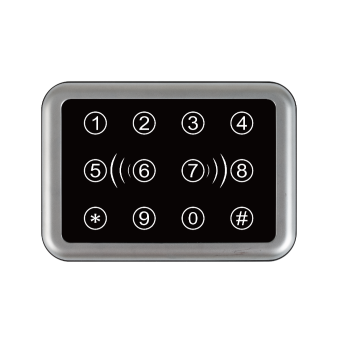

| OEC-R2H-EK | ||||||||
| Hardware Specification | ||||||||
| Reading Distance | 0 to 3cm | |||||||
| Keys | 12 keys (0-9 * #) | |||||||
| Response Time | ≤0.2s | |||||||
| Power Supply | Operating voltage: DC 10.8V to 13.8V Operating current: 120mA to 180mA | |||||||
| Operating Environment | Temperature: -10°Cto +65°C Humidity: 10% to 90% | |||||||
| Dimensions (L x W x H) | 91 × 64 × 21 mm | |||||||
| Interface | 1 set of Wiegand output (26/34) | |||||||
| Operating Frequency | 125KHz | |||||||
| Basic Business | ||||||||
| Card Support | UEM4100 ID card (64bits, Manchester code) | |||||||
