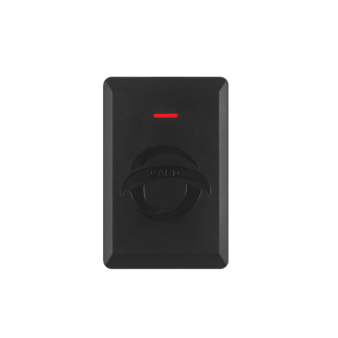

| OEC-R1H-M | ||||||||
| Hardware Specification | ||||||||
| Reading Distance | 0 to 3cm | |||||||
| Keys | Not supported | |||||||
| Response Time | ≤0.2s | |||||||
| Power Supply | Operating voltage: DC10.8 to 13.8V Operating current: 50 to 70mA | |||||||
| Operating Environment | Temperature: -10°Cto +65°C Humidity: 10% to 90% | |||||||
| Dimensions (L x W x H) | 115 × 75 × 17 mm | |||||||
| Interface | 1 Wiegand output (Wiegand26/34) | |||||||
| Operating Frequency | 13.56MHz | |||||||
| Basic Business | ||||||||
| Card Support | MIFARE I & MIFARE LITE | |||||||
