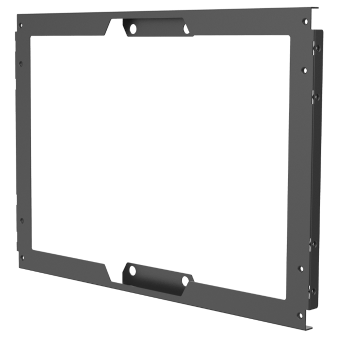

| HB-L005 | ||||||||
| Cabinet | ||||||||
| Material | Sheet metal | |||||||
| General | ||||||||
| Weight (kg) | Net Weight: 1.35 Gross Weight: 1.8 | |||||||
| Package Dimension (W × H × D) (mm) | 510 x 50 x 380 | |||||||
| Standard | Baseplate x 1, main connection plate x 1, sub connection plate x 1, hexagon socket head screw with spring washer (M6 x 12) x 8, hexagon socket head shoulder screw (M8 x 10) x 2, expansion screw components x 4 (Hexagon head flange wood screw (M6 x 60) & nylon expansion tube (φ10 x 60) & flat washer (φ18-22) | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/12/5 14:02:22 | UNV HB-L005 LED display bracket.pdf | English | Preview | Download A> |
