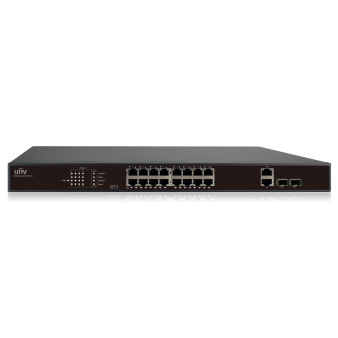

| NSW2010-16T2GC-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 16×100Mbps PoE ports (RJ45)+2×1000Mbps Combo ports | |||||||
| Switching capacity | 7.2 Gbps | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Packet Buffer | 4 M bit | |||||||
| Forwarding performance | 5.36Mpps | |||||||
| Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
| MAC | 16K | |||||||
| PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
| PoE Mode | ModeA (1236) | |||||||
| Max.PoE Power | 250W | |||||||
| Max.Power | 265W | |||||||
| Cooling Fans | 2 | |||||||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps | |||||||
| Weight | <4.2 kg | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. | |||||||
| Dimensions (W×D×H) | 440mm x 207mm x 45mm(17.3"×8.1"×1.8") | |||||||
