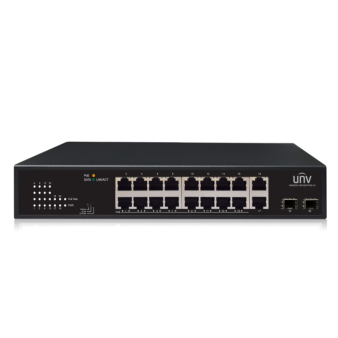

| NSW2010-18GT2GP-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports(SFP) | |||||||
| Switching capacity | 40 Gbps | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Packet Buffer | 4 M bit | |||||||
| Forwarding performance | 29.76Mpps | |||||||
| Power Supply | AC: 100 to 240V, 50/60Hz | |||||||
| MAC | 8K | |||||||
| PoE Standard | IEEE 802.3af, IEEE 802.3 at | |||||||
| PoE Mode | ModeA (1236) | |||||||
| Max.PoE Power | 185W | |||||||
| Max.Power | 200W | |||||||
| Cooling Fans | 1 | |||||||
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |||||||
| Operating Humidity | 10% to 90% (noncondensing) | |||||||
| Indicator | PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Flashing: Transmitting data | |||||||
| Weight | <4.2 kg | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
| Dimensions (W×D×H) | 280mm x 180mm x 44mm (11"×7.1"×1.7") | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2025/6/20 11:37:30 | UNV NSW2010-18GT2GP-POE-IN Gigabit Ethernet Switches.pdf | English | Preview | Download A> |
| Class | Date | Title | Type | Download |
| HD Image | 2026/2/4 16:39:59 | NSW2010-18GT2GP-POE-IN_HD_Image_1.png | png | Download |
