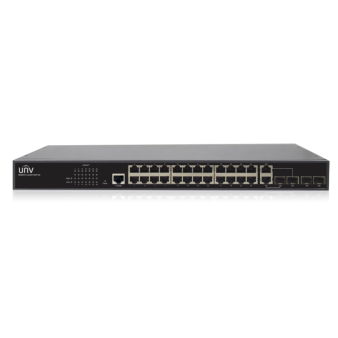

| | NSW5110-24GT4GP-IN |
| Hardware Specification |
| Ports Type | 24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x |
| Switching capacity | 56 Gbps |
| Forwarding performance | 41.66Mpps |
| Packet Buffer | 4 M bit |
| MAC | 8K |
| Dimensions (W×D×H) | 440 × 208 × 44 mm |
| Weight | <3.6 kg |
| Mean Time Between Failure (MTBF) | > 50000 hours |
| Software Specification |
| IEEE802.1d STP | Support IEEE802.1d STP |
| IEEE802.1w RSTP | Support IEEE802.1w RSTP |
| MSTP | Support standard 802.1s MSTP,
Support 64 MSTP instances |
| STP Optional Features | Support port fast,
Support BPDU filter,
Support BPDU guard,
Support hello-time,
Support max age,
Support forward delay,
Support max hops,
Support TC ignore |
| MSTP Port Optional Features | Support port fast,
Support BPDU filter,
Support BPDU guard,
Support TC guard,
Support TC filter,
Support Auto edge,
Support TC protection,
Support compatibility mode |
| AP | Support Flow-Balance Methoddst-ip Destination IP address; dst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
Support AP member port that is included in each AP.
|
| Storm Control |
Support multicast storm control, Support control granularity (percentage and kbps are values for 64-byte datagram) 64 kbps, Support broadcast storm control,
Support unicast storm control |
| Mirroring | Support Many-to-one mirror,
Support Stream-based mirroring,
Support number of mirror groups 4 |
| MAC Address | Support gentries MAC address numbers 8K,
Support static MAC address numbers 1024,
Support filtering MAC address numbers 1024,
Support check and delete address table,
Support filtering address
,
Support static address and dynamic learning address |
| LLDP | Support LLDP |
| ONVIF | Support ONVIF detect,
Support ONVIF server
|
| IGMP Snooping | Support IGMP snooping groups,
Support IGMP V1, V2 snooping,
Support source IP check,
Support multicast policy and filtering,
Support IGMP fast Leave
|
| Port Limit | Support egress speed limit granularity,
Support Ingress speed limit,
Support egress speed limit
|
| Network Tool | Support Ping, Support traceroute
|
| ACE Capacities | Support the input direction is associated with the physical port |
| QoS | Support QoS hardware queues,
Support determine the exit queue according to 802.1p, DSCP, port,
Support Stream-based 802.1p Re-marking,
Support Stream-based queue maps,
Support SP,
Support WRR,
Support RR,
Support WFQ
|
| Port Security | Support Mac filtering time,
Support White-list data,
Support clear Mac address table,
Support Mac address binding,
Support max Mac numbers settings,
Support blacklist data,
Support violation mode
|
| Port Isolation | Support |
| LOOPBACK | Support |
| DAI | Support software DAI entries |
| SNMP | Supporting version (SNMPV1, V2c, V3) |
| Web Management | Support HTTP access |
| RMON | Support RMON (1, 2, 3, 9) |
| System Upgrade | Support system upgrade or page upgrade via TFTP |
| Save Configuration | Support save configuration |
| Configuration Management | Support Import, export, backup configuration, restore factory configuration |
| Syslog/Debug | Support Syslog/Debug |
| Security Function | Support |
| Basic Characteristics | Support login authentication (password, none) |
| Password Security | Support static password encryption transmission, storage,
Support strong password and password minimum length check
|
| Radius | Support radius,
Support specify multiple groups of servers IP
|
| Tacacs+ |
Support specify multiple groups of servers IP
, Support Tacacs+ |
| SSH | Support SSHv2.0 |
| Anti-dos Attack | Support Interrupting land attack packets and illegal TCP packets |
| Dot1x | Support 802.1X,
Support port base,
Support Mac base,
Support MAB,
Support multiple account switching
|
| Defense Gateway ARP Spoofing | Support defense gateway ARP spoofing |
| IP Source Guard | Support IP source guard |
| CPP | Support hardware CPP |
| ARP Check |
Support leverage IP+MAC data binding of IP source guard, Support IP + MAC data binding using DHCP snooping,
Support leverage 1X IP+MAC data binding,
Support trusted ARP
|
| DHCP Relay | Support allow configuration of the number of servers |
| DHCP Snooping | Support Option82,
Support trust port configuration,
Support IP, MAC binding table(IP Source Guard),
Support bind to logical ports (including physical interfaces),
Support software binding database capacity,
Support bind to VLAN
|
| DHCP Server | Support binding table configuration,
Support address pool configuration
|
| Telnet | Support Telnet,
Support maximum number of connections
|
| TFTP | Support TFTP client |
| FTP | Support FTP server,
Support FTP client
|
| ERPS | Support delete ERPS loop,
Support ERPS loop configuration,
Support ERPS time configuration
|
| Static And Dynamic LACP Link Aggregation | Support LACP configuration, Support Load-Balance Method; dst-ip Destination IP addressdst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
Support link aggregation groups,
Support max link aggregation numbers of each link aggregation group,
Support link aggregation port configuration
|
| Compliance |
| NDAA Compliant | Support |
