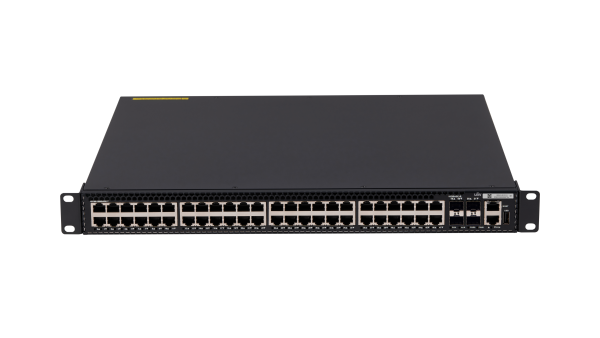

	NSW5630-48GT4XP-IN
Hardware Specification
Jumbo Frame	9216
Indicator	RUN, ALM, PWR0, PWR1, LINK/ACT
Operating Temperature	0℃ to 45℃
Power Supply	AC: 100V to 240V AC, 50/60Hz, 2A. Dual Power Supply with Hot Swap function
Max.Power	100W
Operating Humidity	5% to 95%, non-condensing
Ports Type	481Gbps RJ45 + 410Gbps SFP+
Switching capacity	176Gbps
Forwarding performance	130.944Mpps
Dimensions (W×D×H)	440×400×44 mm
Weight	4.7kg
Software Specification
MAC	Supports 32K MAC entries Support static MAC, dynamic MAC, black hole MAC, source MAC address filtering
Ethernet	Support port aggregation, port mirroring, port isolation, port traffic identification, RSPAN, unknown unicast suppression, multicast storm suppression, broadcast storm suppression
Virtualization	Support VSM virtualization
VLAN	Supports 4K VLAN Supports VLAN based on MAC/IP subnet/authentication policy/port/protocol Support Guest VLAN, PVLAN Support QinQ, flexible QinQ, VLAN MAPPING, GVRP
IP Route	IPv4: Static routing, RIP v1/2, OSPF, ISIS, policy-go-together, etc. IPv6: IPv6 static routing, RIPng, OSPFv3, BGP4+, ISISv6, transition tunnel technology from IPv4 to IPv6, etc.
Maintenance	Support RMON Support OAM Support NTP Support power supply, fan, temperature alarm Support ULDP (Unidirectional Link Detection Protocol) Unidirectional Link Detection Protocol Support SNMP, CLI, Web network management Support local and remote output such as system log, operation log, debugging information, etc. Support interface and static route configuration description function Support command line to switch the working mode of Layer 2/Layer 3 interface (any interface)
Security	Support local and centralized authentication based on MAC address Support local and centralized authentication based on 802.1x Support dynamic ARP detection, one-click ARP binding, authorized ARP, ARP source suppression, ARP source address inspection; Supports CPU load protection, enhances the device's anti-attack capability, and ensures stable network operation Support port isolation, Static Port Access Control Support broadcast storm suppression Support SSH2.0
QoS	Support traffic classification based on 802.1p/DSCP/TOS Support speed limit on ports and streams Support SP, WRR, SP + WRR queue scheduling
ACL	Support ACL based on VLAN, MAC address, IP address, TCP/UDP port number, etc.
Reliability	Support STP, RSTP, MSTP, FRRP, FLRP, ERPS Ethernet ring protection protocol (G.8032)
DHCP	Support DHCP Client, DHCP Server, DHCP Relay, DHCP Snooping
Multicast	Support GMRP v1/v2/v3, IGMP Proxy Support IGMP Snooping v1/v2/v3, MLD v1/v2, MLD Snooping v1/v2 Support PIM-SM, PIM-SSM, PIM-DM

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/27 8:11:16	UNV NSW5630-48GT4XP-IN Managed Ethernet Switch.pdf	English	pdf	Preview	Download
