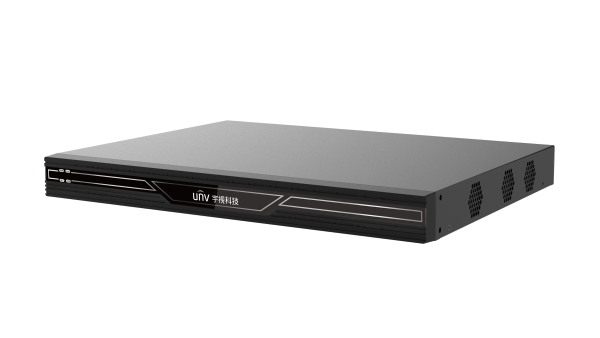

| | VMS-B180-A |
| Live view |
| Live view | Play live video by channel or view.
1/3/4/5/6/7/8/9/10/13/16/17/25/32/36/64 image display on single screen (64-image display is not available on the local client).
Custom window layout.
3/7 window layout in corridor mode;
Up to 3 auxiliary monitors (not support on local client);
Supports view, sequence, snapshot, digital zoom, PTZ control, patrol, fisheye, 5ePTZ, panoramic linkage, multi-sensor mode, instant playback, recording, watermark, etc. |
| Playback |
| Playback | Play recordings saved on VMS or NVR.
Playback types: normal recording, tagged recording, locked recording, smart recording playback, event recording, VCA recording.
Normal recording playback supports 1/3/4/5/6/7/8/9/10/13/16 window layout.
Max 16-channel synchronous playback on a single client (depending on NVR’s stream output performance).
Playback speeds: -256x, -128x, -64x, -32x, -16x, -8x, -4x, -2x, -1x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x (depending on NVR’s stream output performance)
Supports snapshot, digital zoom, clipping, locking, tagging, rewinding/forwarding 30 seconds, zooming in/out on the timeline, synchronous playback, recording preview on timeline, watermark, etc.
Download recordings by file, time, etc. |
| E-map |
| E-map | Supports local and online (AMAP) maps; map files support jpg, png, and bmp formats.
Add, delete, edit, and search maps, hot spots (video channel, alarm input, access control) and hot zones.
Allows user to choose or customize hot spot icons.
Live view (max 4 channels) and playback (max 16 channels) on map.
Blinking alarm on map; view/clear alarms.
800MB storage space for map resources, max 7 layers of maps. |
| Video wall |
| Video wall | Supports multiple models of decoding devices to create video wall.
Allows user to add, delete, edit, search video wall; editable information includes video wall name, size, resolution, bind/unbind decoding channels.
Live view, playback, and sequence display on video wall.
Save settings as a scene for quick restoration of settings when needed.
Play signal source on video wall, virtual LED configuration, screen on/off control. |
| Alarm configuration |
| Alarm management | Alarm subscription, alarm level customization, alarm time template, email contacts management (BS client).
Alarm plan configuration: add/delete/edit/search/enable/disable alarm plan; configure alarm linkage actions: live view, goto preset, alarm output, alarm to video wall (BS client also supports email and buzzer).
Alarm records search: realtime alarm records, history alarm records; history alarm records support search by alarm source, time, alarm status, alarm time, alarm level. |
| Audio |
| Two-way audio | Choose a device for two-way audio.
The live video from the device is displayed.
User can start/stop two-way audio, adjust sound volume of MIC and speaker.
The status bar shows two-way audio status.
(Not available on the local client) |
| Broadcast | Add, delete broadcast group members, start/stop broadcast.
Choose one audio channel from the broadcast group to play audio.
Adjust local input and output sound volume.
(Not available on the local client) |
| Access control management |
| Manual access control | Search doors, view status, open/close doors. |
| Door entry/exit records | Search entry/exit records, view status, reset/export. |
| Visitor info management | Sign in/out visitors, configure permission group/blocklist.
Edit visitor information, view visitor status. |
| Access control monitoring | Manage the blocklist library and use it for monitoring. |
| Blocklist alarm records | Search, view status, reset/export. |
| Attendance management | Search attendance statistics by time range, department, name, person ID; export search results. |
| Face detection |
| Face library management | Add, delete, edit, and search face libraries; max. 128 face libraries.
Add, delete, assign, remove, import, export faces in batches, search faces by name, ID card number, gender, etc. |
| Face monitoring management | Monitoring type: match alarm, not match alarm.
(Alarm records can be searched in the data search module) |
| Face realtime monitoring | View live video of monitoring cameras, snapshots and comparison records.
(Passing people records can be searched in the data search module). |
| Checkpoint monitoring |
| Vehicle library management for checkpoint | Add, delete, edit, search vehicle library information, max 16 vehicle libraries.
Add, delete, assign, remove, import, and export vehicles in batches, search vehicles by plate number, plate type, vehicle color, plate color, etc. |
| Vehicle monitoring | Cause of monitoring: robbed vehicle, stolen vehicle, suspect vehicle, traffic violation, emergency control.
(Alarm records can be searched in the data search module) |
| Checkpoint realtime monitoring | View live video of monitoring cameras.
(Passing vehicle records can be searched in data search module). |
| People counting |
| Statistical resource management | Supports filtering areas and channels by keyword. |
| People counting area | Add, edit, delete people counting areas; max 8 detection areas, each area includes up to 32 channels.
Configure alarms, area name, push cycle, people present alarm thresholds (critical/major/minor), and channels. |
| Crowd density detection area | Add, edit, delete crowd density monitoring areas, max 16 areas, each area allows one video channel.
Configure alarms, area name, push cycle, crowd density alarm thresholds (critical/major/minor), and channels. |
| Area preview | Double-click a channel in the people counting area to view the live video in the 4-window area. |
| Realtime statistics | Displays counting results (people in/out/staying/how many more allowed) and access status on the right side and updates in real time.
Crowd density (current number of people, how many more allowed), area status. |
| Reports and statistics | Count by minute/hour/day/month.
Support line chart and column chart display, and display entering/leaving/staying statistics separately or in combination.
Display entering/leaving/staying statistics of a certain time period or of a channel, export counting statistics. |
| Mixed-traffic detection |
| Mixed-traffic detection | Real-time monitoring and snapshot record display for motor vehicle/non-motor vehicle/pedestrian.
Face detection records: search by channel, time, gender, age, etc.
Pedestrian detection records: search by channel, time, gender, age, upper garment style/color, lower garment style/color, shoes, and backpack style.
Non-motor vehicle detection records: search by channel, time, vehicle type, driving direction, speed; associated facial feature information.
Motor vehicle detection records: search by channel, time, plate number, vehicle type, plate color, plate type, color logo, driving direction, speed, and vehicle color. |
| Behavior search |
| Device data search | Search VCA alarm snapshots and recordings by criteria including time range and alarm type (cross line detection, intrusion detection) |
| VMS data search | Search alarm snapshots and recordings by all/pedestrians/non-motor vehicles/motor vehicles, time range, and alarm type (cross line detection, intrusion detection, enter area, leave area). |
| Data search |
| Face search | Search by attribute, event, and by image:
1. Search by attribute:
(1) Search conditions: channel name, snapshot time, gender, age, etc; search records support search by image.
(2) View alarm image and recording, object features.
(3) Data export.
2. Search by event:
(1) Search conditions: monitoring type (match alarm, not match alarm), alarm source, alarm time, name, ID number, alarm source, gender, etc.
(2) View alarm image and recording, object features.
(3) Data export.
3. Search by image: Search people pass-through records on NVR and search for an image in a face library on VMS using a face library image (VMS) or a local uploaded face image; view alarm image and recording. |
| Pedestrian search | 1. Search conditions: channel name, snapshot time, gender, age, upper garment style/color, lower garment style/color, shoes, backpack style.
View alarm images and object features.
Data export. |
| Motor vehicle search | Search by attribute and event:
1. Search by attribute:
(1) Search conditions: channel name, snapshot time, plate number, vehicle type, plate color, plate type, vehicle logo, driving direction, speed, vehicle color.
(2) View alarm image and recording, object features.
(3) Data export.
2. Search by event:
(1) Search conditions: monitoring type (match alarm, not match alarm), alarm source, alarm time, plate number, plate color, monitoring cause, vehicle color.
(2) View alarm image and recording, object features.
(3) Data export. |
| Non-motor vehicle search | Search conditions: channel name, snapshot time, vehicle type, driving direction, speed.
View alarm images and object features.
Data export. |
| O and M statistics |
| Log search | View, acknowledge alarm logs, view operation logs |
| Storage performance |
| Storage performance | Network disk：Supports external network hard disk (IPSAN) storage; supports configuration of recording schedules for up to 100 channels; recording schedule only supports the Schedule type |
| Management performance |
| Total device management capability | 250 |
| Total channel management capability | 500 |
| Cloud device management capability | 250 |
| GB/T28181 device management capability | 100 |
| Onvif device management capability | 250 |
| Smart encoding device management capability | 100 |
| Access control device management capability | 128 |
| Decoding device management capability | 30 |
| EZAgent management capability | 20 |
| Network keyboard management capability | 50 |
| Network disk | 8 |
| Security gateway device management capability | 128 |
| User management capability | 500 |
| Concurrent online user management capability | 50 |
| Replica server management capability | Not support |
| Stream performance |
| Incoming bandwidth | 512Mbps |
| Outgoing bandwidth | 384Mbps |
| Image performance |
| Number of smart image storage streams | 256 channels |
| Image push performance | 100 images per second |
| Alarm performance |
| Alarm receiving and forwarding performance | 100 alarms per second |
| Data storage performance |
| Max storage for alarm logs | 20W |
| Max storage for operation logs | 20W |
| Max storage for face snapshot records | 300W |
| Max storage for face alarm records | 300W |
| Max storage for passing vehicles | 300W |
| Max storage for structured vehicle/pedestrian records | 300W |
| Max storage for access control records | 300W |
| Operating temperature |
| Operating environment temperature | -10°C to 55°C (recommended: 0°C to 50°C) |
| Operating humidity |
| Operating environment humidity | 10RH% to 90RH% (noncondensing) |
| Operating system |
| Operating system | Linux |
| RAM |
| RAM | 4GB |
| HDD |
| HDD | 1 (No HDD is included at delivery) |
| Interface |
| USB | 4*USB3.0 |
| VGA interface | 1 |
| HDMI interface | 1 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm | 24 in, 8 out |
| Storage expansion interface | / |
| Network interface |
| Network interface | GE × 4 |
| Power |
| 12V DC output | 1 |
| Primary power input | / |
| Power | 100V to 240V AC input, 50Hz/60Hz |
| Expansion power module slot (PSU1) | / |
| Total power consumption |
| Total power consumption | Max. 40W |
| Physical size |
| Dimensions (with front panel) (H x D x W) | 48mm×345.5mm×440mm/1U
(front panel is not removable) |
| Weight |
| Weight | ≤4kg (without HDD) |
| Client computer requirements |
| Client computer requirements | 64-bit version:
OS: Microsoft Windows 7/Windows 8/Windows 10, 64-bit
CPU: Intel Core i5 3.1 GHz or higher
RAM: 4GB or higher
32-bit version:
OS: Microsoft Windows 7/Windows 8/Windows10, 32/64-bit
CPU: Intel Pentium IV 3.0 GHz or higher, 4 Cores, 3.0GHz is recommended
RAM: 2GB or higher
Note: 64-bit operating system needs to be compatible with the 32-bit version software
Mac version:
OS: Mac OS 10.11 or higher
CPU: Intel Core i5 3.1 GHz or higher
RAM: 4GB or higher |
