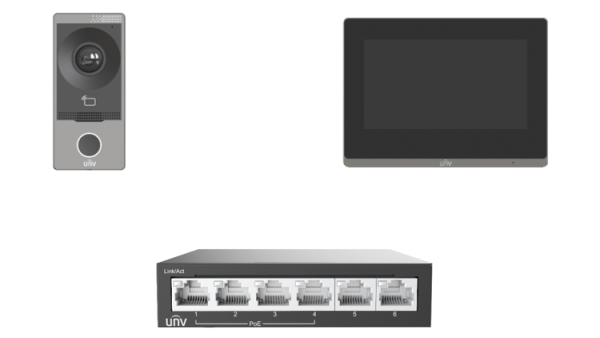

| KIT/201S/372S/NSW2020 | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V±25%,IEEE802.3af, Standard PoE | |||||||
| Power Consumption | <10W | |||||||
| Screen | 7-inch ultra-thin TFT LCD screen | |||||||
| Screen Resolution | Screen resolution 1024×600 | |||||||
| Operation System | Linux | |||||||
| Audio Quality | Noise suppression, echo cancellation and AGC | |||||||
| Audio Input | 1 built-in omnidirectional microphone | |||||||
| Audio Output | 1 built-in speaker | |||||||
| Audio Compression Standard | MP3 G711 | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Interface | Power*1, network*1, WiFi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI4、2.4GHZ | |||||||
| Weight | 360g | |||||||
| Dimensions (L x W x H) | 193mm×143mm×25mm | |||||||
| Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor | |||||||
| Basic Business | ||||||||
| Protocol | UNV private protocol | |||||||
| Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP | |||||||
| Specification Index | ||||||||
| Capacity | 200 ScreenShots 200 Zone Alarms A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells | |||||||
| Linked Indoor Station Capacity | 19 extensions | |||||||
| Compliance | ||||||||
| NDAA Compliant | Support | |||||||
