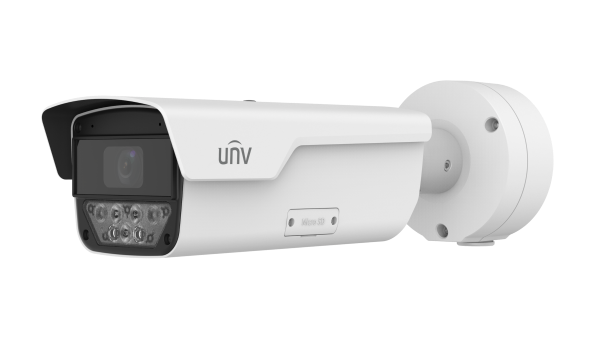

| | IPC268EA-AHDZK-I1 | IPC268EA-AHDX4K-I1 |
| Camera |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.001 Lux (F1.2, AGC ON), BW: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR | Color: 0.003 Lux (F1.6, AGC ON), BW: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 140 dB |
| S/N | >56 dB |
| Lens |
| Focal Length | 2.8 to 12 mm | 8 to 32 mm |
| Optical Zoom | 4X |
| Iris | F1.2 | F1.6 |
| Iris Type | P-iris |
| DORI |
| DORI Distance (Detect) | 108.0 m to 180.0 m (354.3 ft. to 590.6 ft.) | 240.3 m to 644.4 m (788.4 ft. to 2114.2 ft.) |
| DORI Distance (Observe) | 43.2 m to 72.0 m (141.7 ft. to 236.2 ft.) | 96.1 m to 257.8 m (315.4 ft. to 845.7 ft.) |
| DORI Distance (Recognize) | 21.6 m to 36.0 m (70.9 ft. to 118.1 ft.) | 48.1 m to 128.9 m (157.7 ft. to 422.8 ft.) |
| DORI Distance (Identify) | 10.8 m to 18.0 m (35.4 ft. to 59.1 ft.) | 24.0 m to 64.4 m (78.7 ft. to 211.4 ft.) |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| ROI | Support |
| Video Stream | Triple streams |
| Privacy Mask | Up to 8 areas (8 blacks / 8 mosaics) |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 8 MP (3840 × 2160), max. 60 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 60 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 60 fps |
| Intelligent |
| Recognition | |
| Metadata Analyse | Support human body, motor vehicle and non-motor vehicle image capture and attribute collection |
| Exception Detection | Object Removed,Object Left Behind, Scene change, Defocus detection | Object Removed,Object Left Behind |
| Metadata of Multi-target Detection | Gender (face), Age range (face), Glasses (face), Gender (pedestrian), Mask (pedestrian), Uppper garment color (pedestrian), Lower garment color (pedestrian), Uppper garment style (pedestrian), Lower garment style (pedestrian), Bag style (pedestrian), Uppper garment color (non-montor vehicle), Uppper garment style (non-montor vehicle), Vehicle type (non-montor vehicle), Vehicle type (motor vehicle), Vehicle color (motor vehicle), Vehicle brand (motor vehicle), Plate number (motor vehicle) |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density detection |
| Multi-target Detection | Support human body, motor vehicle and non-motor vehicle image capture and attribute collection |
| Image |
| White Balance | Auto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise |
| HLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Events |
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output |
| Audio |
| Audio Compression | G.711U&G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | IGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3 |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Illuminator |
| Illumination Distance (IR) | 60 m (196.9 ft.) | 120 m (393.7 ft.) |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Interface |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Support, built-in mic*2 |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 ) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General |
| Power | DC 12 V (±25%), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 16 W | Max. 19 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | 406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1") (L × W × H) |
| Weight | 1.92 kg (4.23 lb) |
| Working Environment | -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Heater | Support |
| Configurable |
| P/N | Support |
