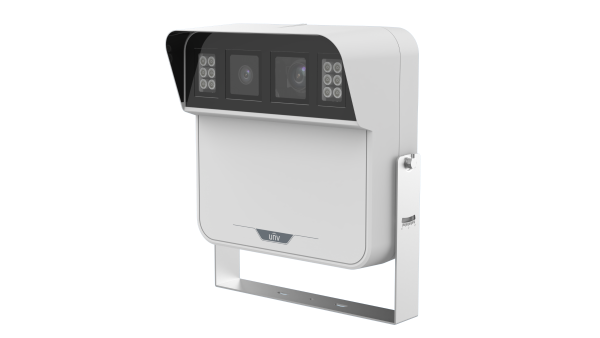

| | RVS441@2D-D30-OS |
| Channel | channel 1 | channel 2 |
| Camera |
| Max Resolution | 4 MP |
| Sensor | 1/1.8" CMOS |
| Basic Parameters |
| Min. Illumination | 0.0003 lux (1.0, AGC ON, color), 0 lux (warm light on) | 0.0005 lux (F1.6, AGC ON, color) , 0.0003lux (F1.6, AGC ON, black/white) |
| Shutter Range | 1 ~ 1/100000s |
| Day/Night | Color, all day | Day : Color, Night : IR |
| Lens |
| Focal Length | 4.0 mm | 8 to 32 mm |
| Optical Zoom | N/A | 4X |
| Iris | F1.0 | F1.6 |
| Field of View (H) | 94.5° | 15° ~ 43° |
| Field of View (V) | 50° | 9° ~ 24° |
| Illuminator |
| Built-in Illuminator Type | 2 near warm lights + 2 mid-IR lights + 8 far-IR lights |
| Light Beads | 12 |
| Built-in Illumination Range | Warm light : 40m | IR light : 200m |
| Key Functional Parameters |
| Radar-video Fusion | Support |
| Max. Detection Targets | 32 |
| Max. Detection Areas | 8 |
| Detection Target Type | Pedestrian, motor vehicle, non-motor vehicle |
| Pedestrian Detection Capability | Accurate recognition of various actions, including walking, crawling, crouching, running, and wall climbing |
| Detection Direction | Supports incoming, outgoing, lateral motion detection |
| Detection Distance Range | 10 ~ 300 m |
| Lateral Detection Range | 20 ~ 200 m |
| Radar |
| Radar Frequency Band | 80GHz |
| Modulated Waveform | FMCW |
| Detection Frequency | Up to 16 times per second |
| Distance Resolution | 1.5m |
| Speed Resolution | 0.1m/s |
| Speed Measurement Range | 0.03-30m/s |
| Azimuth Angle Precision | ±1° |
| Distance Precision | ±0.75m |
| Speed Precision | ±0.2m/s |
| Detection Angle | Horizontal Angle ±8° Elevation Angle ±3 |
| Video |
| Video Compression | H.265, H.264, MJPEG |
| Video Resolution | Main stream: 2688×1520, 1080P, 720P, D1, 2CIF, CIF Sub stream: 1080P, 720P, D1, 2CIF, CIF Third stream: D1, 2CIF, CIF |
| Video Frame Rate | 2688×1520@30 fps |
| Video Bit Rate | 128-16384Kbps |
| Video OSD | Multiple types of contents, such as date and time, with custom font color |
| Image |
| Image Resolution | 2688×1520 |
| Image Encoding Format | JPEG |
| Image Settings | Exposure mode, shutter time, gain, exposure compensation, day/night mode, etc. |
| Digital Noise Reduction | 2DNR/3DNR |
| Event |
| Event Type | Intrusion detection, cross line detection |
| Storage |
| Edge Storage | 8 GB eMMC, supports expansion to 512 GB TF card |
| Network |
| Protocols | SSH; RTP; RTCP; IPv4; ARP; TCP; UDP; DHCP; RTSP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; LAPI |
| Compatible Integration | ONVIF |
| Interface |
| Network Interface | 1 x 10M/100M/1000M Ethernet interface |
| Serial Port | 1 x RS 485 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Reset Button | Support |
| General |
| Power Supply | DC 24V ±25% |
| Power Consumption | ≤ 30W |
| Dimensions | 248.5mm (W) ×142.3mm (D) ×240.0mm (H) |
| Weight | 2.86kg (with bracket) |
| Lightning and Surge Protection | Support |
| Operating Temperature | - 40°C to 70°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Spirit Level | Support |
| Compliance |
| NDAA Compliant | Support |
| DORI |
| DORI Distance (Lens) | 4 mm | 8 ~ 32 mm |
| DORI Distance (Detect) | 62.1 m (203.6 ft.) | 124.1 m ~ 496.6 m (407.3 ft. ~ 1629.1 ft.) |
| DORI Distance (Observe) | 24.8 m (81.5 ft.) | 49.7 m ~ 198.6 m (162.9 ft. ~ 651.6 ft.) |
| DORI Distance (Recognize) | 12.4 m (40.7 ft.) | 24.8 m ~ 99.3 m (81.5 ft. ~ 325.8 ft.) |
| DORI Distance (Identify) | 6.2 m (20.4 ft.) | 12.4 m ~ 49.7 m (40.7 ft. ~ 162.9 ft.) |
