LAMP-IH25-M3-F-OS - Uniview - Global AIoT Solutions Provider

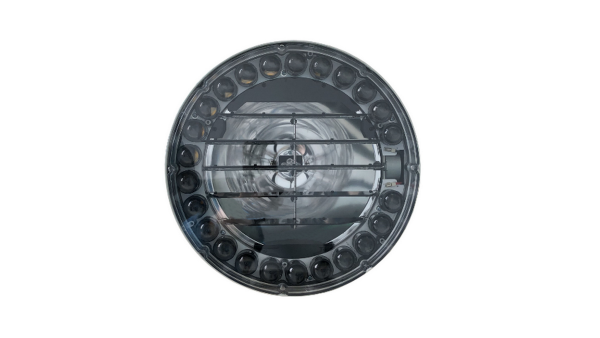

	LAMP-IH25@M3-F-OS
LED strobe
Power consumption	Default power is 4.4W(≤ 40W)
Light type	Infrared flash & white flash & infrared strobe
Luminous angle	10°
Trigger frequency	50Hz/60Hz
Optimal fill light distance	15～30m
Trigger mode	Level trigger, switch trigger
Beam angle	0-40%
LED lamp bead wavelength	850nm
White light flash
White light flash lifetime	More than 10 million times
Output energy	≤100J
Flash brightness	8-level adjustable
Color temperature	≤7000K
Return time	≤50ms
Duration of flash	1/10000s~1/1000s
White light flash trigger mode	Level trigger
Gas explosion level	1~8 level adjustable
Fill light distance	15~30 m
Red and White Switch	Switch by frequency
Filter form	Window shades
Be in common use
Dimensions (L × W × H)	452279279mm
Weight	6.8kg
Ingress protection	IP65
Bracket rotation angle	-45° to 45°
Power supply	110 ~ 220Vac
Length of tail line	4.5m
Communication interface	RS485
Operating environment	-40℃～70℃，10~95%RH
