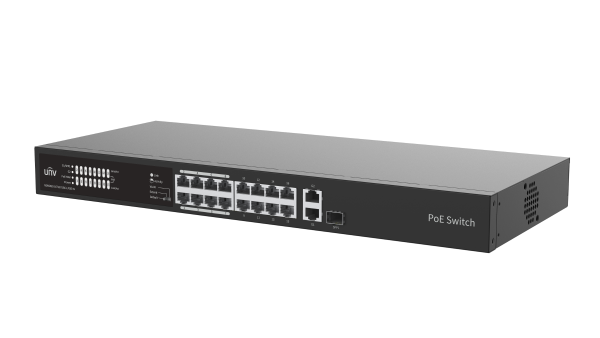

NSW2020-16T1GT1GC-LPOE-IN - Uniview - Global AIoT Solutions Provider

NSW2020-16T1GT1GC-LPOE-IN

Hardware Specification

Ports Type

16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports

Switching capacity

7.2 Gbps

Power Supply

AC: 100 to 240V, 50/60Hz

Forwarding performance

5.36Mpps

MAC

16K

Packet Buffer

4 M bit

PoE Mode

ModeB (4578)

Max.PoE Power

Max capacity:150W
Max capacity for single port: 30W

Prior Ports

1 to 8

Standards

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az

Cooling Fans

0

Max.Power

165W

Operating Temperature

0°C to 45°C (32°F to 113°F)

Operating Humidity

10% to 90% (noncondensing)

Indicator

POWER:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
PoE-MAX：
off ：The POE power supply power of the whole machine is less than 80% of the specification
Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
LINK/ACT：
Off: No link
Steady on: Linked
Flashing: Transmitting data

Dimensions (W×D×H)

440*195*44mm

Weight

1.99KG

Working Mode

Default (Normal mode) : All ports can communicate with each other, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time

Compliance

NDAA Compliant
