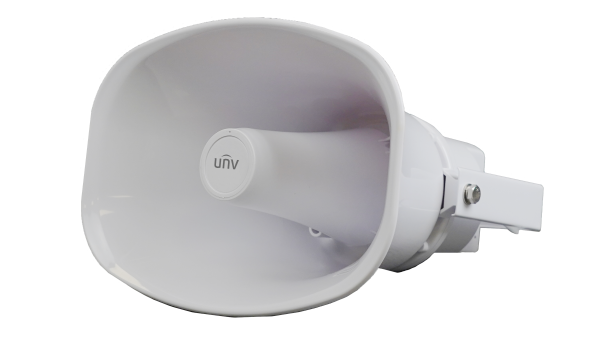

IPS302030-S

Outdoor IP Speaker

• Built in 1 high-quality speaker with loud sound, long penetration and clear
• Support alarm broadcast with uniview NVR, video and audio linkage.
• Built in storage, support uploading custom audios
• Support two-way audio
• Support PoE power supply

Especificação

Baixar

How to buy

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/12/6 1:44:21	UNV IPS302030-S Horn IP Speaker 30W.pdf	English	pdf	Preview	Download
Datasheet	2025/12/6 1:44:21	UNV IPS302030-S Horn IP Speaker 30W.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/2/5 3:15:49	IPS302030-S_HD_Image_1.png	png	Download

Class	Date	Title	Language	Type	Preview	Download
User Manual	2025/8/4 16:34:02	UNV-IP Speaker User Manual.pdf	English	pdf	Preview	Download

Class	Date	Title	Language	Type	Preview	Download
Quick Guide	2025/8/5 4:19:00	Quick Guide.pdf	English	pdf	Preview	Download

Class	Date	Title	Download
Dimensions	2026/2/5 3:15:49	IPS302030-S_Dimensions_1.jpg	Download

Title	Language	Type	Download
IPS-B8101.2.12.250402 Release Notes.pdf	English	pdf	Download
IPS-B8101.2.12.250402.zip	English	zip	Download

Want to learn more?

Contact sales

0%

	IPS302030-S
Speaker
Rated Power	30 W
Max. Acoustic Pressure	130 dBSPL
Frequency Response	300 Hz to 12.5 kHz
Impedance	8 Ω
Material
Material	ABS Plastic
Network
Network Protocol	IPv4, HTTP, HTTPS, SSL/TLS, DNS, TCP, UDP, DHCP, UPnP, ARP, SSH
Interface Protocol (API)	ONVIF, RTSP, RTP, LAPI
Browser	Firefox 87+, Chrome 90+, Edge 90+, Safari 17+
Build in Mic
Amount	1
Frequency Response	100 Hz to 8 kHz
Sensitivity	-37 dBV/Pa
Sampling Rate	8 kHz
Quantization Bits	16 bit
Audio
Broadcast	Regular Broadcast, Live Broadcast, Alarm Broadcast
Two-Way Audio	Support
Audio Compression	G.711U
Audio File Format	MP3, WAV
Audio File Size	2 KB ≤ Audio File Size ≤ 10 MB
Audio File Storage	64 MB
Audio File Number	100 (Include system built-in files )
Language
Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Interface
Network Interface	1 RJ45 10 M/100 M self adaptive Ethernet Interface
Audio In	RCA (only be used for sound amplification,cannot be used for intercom)
Alarm In	2
Power Supply	PoE (IEEE 802.3at), DC 24 V/1.4 A, DC 12 V/2.5 A
Certification
Safety	CE LVD (EN IEC 62368-1: 2020+A11: 2020), UL (UL 62368-1, 3rd Ed., Issue Date: 2019-12-13)
EMC	CE-EMC (EN 55032: 2015 + A1: 2020, EN 61000-3-3: 2013 + A1: 2019, EN IEC 61000-3-2: 2019 + A1: 2021, EN 55035: 2017 + A11: 2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863): WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Compliance
NDAA Compliant	Support
Working Environment
Working Temperature	-30 ℃ to 55 ℃ (-22 ℉ to 131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Dimensions
Dimensions	282mm × 205mm× 285mm (11.1"×8.1"×11.2")
Approval
Protection	IP66
