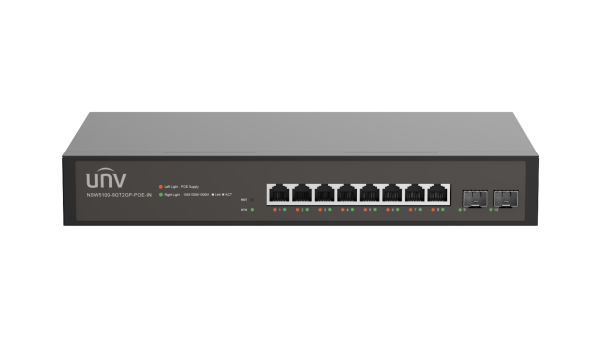

NSW5100-8GT2GP-POE-IN

Hardware Specification

Ports Type

8*10/100/1000Mbps RJ45 PoE port,
2*1000Mbps SFP port

Switching capacity

20 Gbps

Forwarding performance

14.88 Mpps

Packet Buffer

3M bits

Cooling Fans

0

Max.PoE Power

Maximum total power:150W.
Maximum PoE power for single port: 30W

Max.Power

160W

Power Supply

AC: 100 to 240V, 50/60Hz

Weight

1.50kg

Dimensions (W×D×H)

280 × 125 × 44 mm

Operating Temperature

0℃ to 45℃

Operating Humidity

5% to 95%, non-condensing

Indicator

PWR:
Steady on: Normal power input.
Off: Abnormal power input.
PoE:
Off: No PoE power supply.
Steady on: PoE power supply is normal.
LINK/ACT:
Off: The port is disconnected.
Steady on: The port is connected.
Blinking: The port is transmitting data.

Software Specification

MAC

8K, auto-learning, auto-update

Ethernet

Auto-negotiation, 10/100/1000M half-duplex/full-duplex.
Support port rate adjustment.
Support port flow control.
Support link aggregation（Static-LAG & LACP）.
Support port flow statistics .
Support port Loopback-detection.
Support enabling/disabling ports .

VLAN

Access/Trunk/Hybrid
Default VLAN

Maintenance

Support a N :1 port mirroring.
Allow to import, export, back up, and restore factory defaults on the Web interface.

Security

MAC/IP ACL
Mac Limit

QoS

Support traffic classification based on DSCP/TOS.
Support speed limit on ports and streams.
Support SP, WRR queue scheduling.

Reliability

Support STP, RSTP, Support ERPS( single ring).

POE

Allow to enable/disable PoE power supply

Multicast

Support IGMP v1/v2 snooping.
