UAC-D122-APF28M

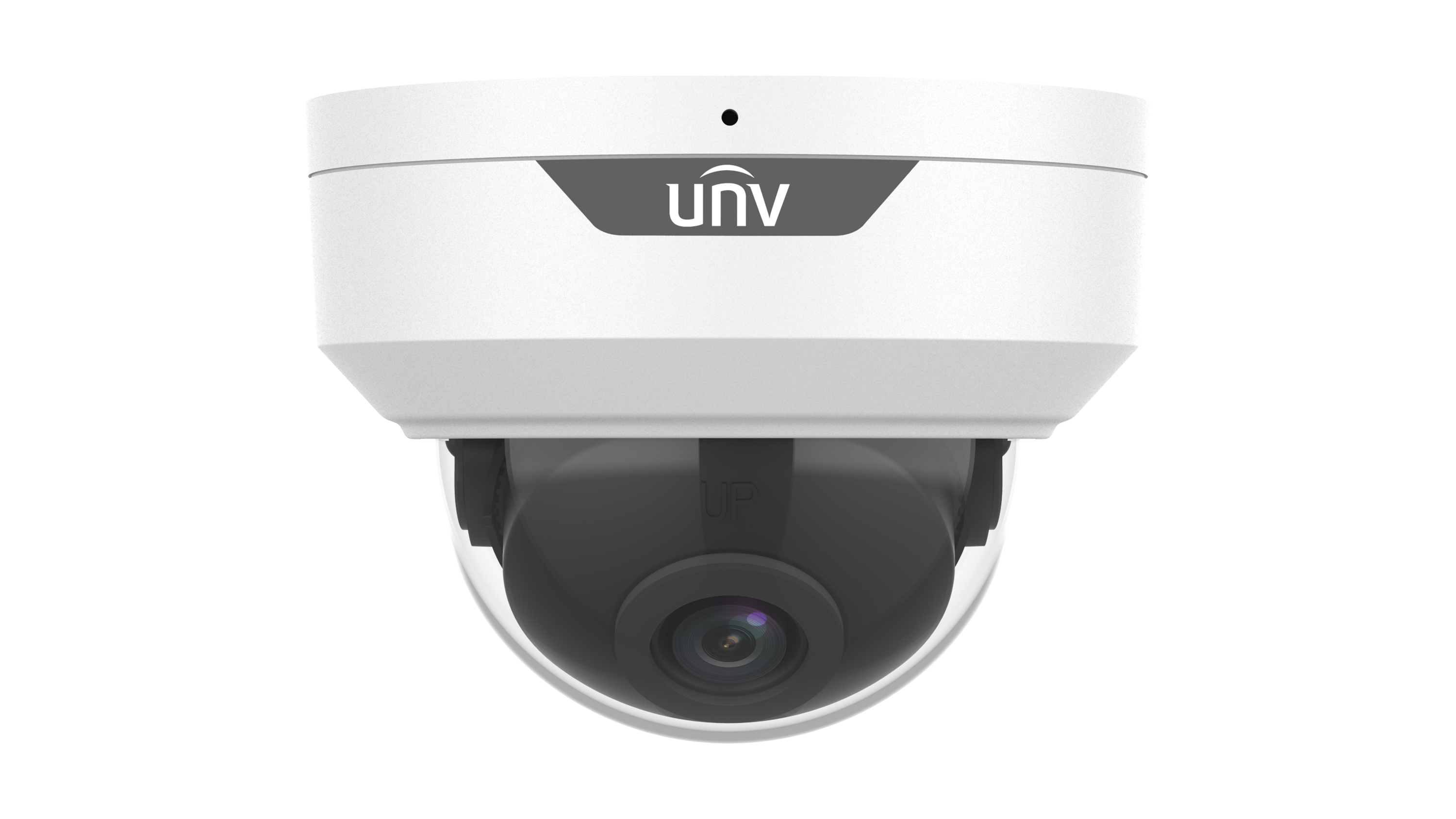

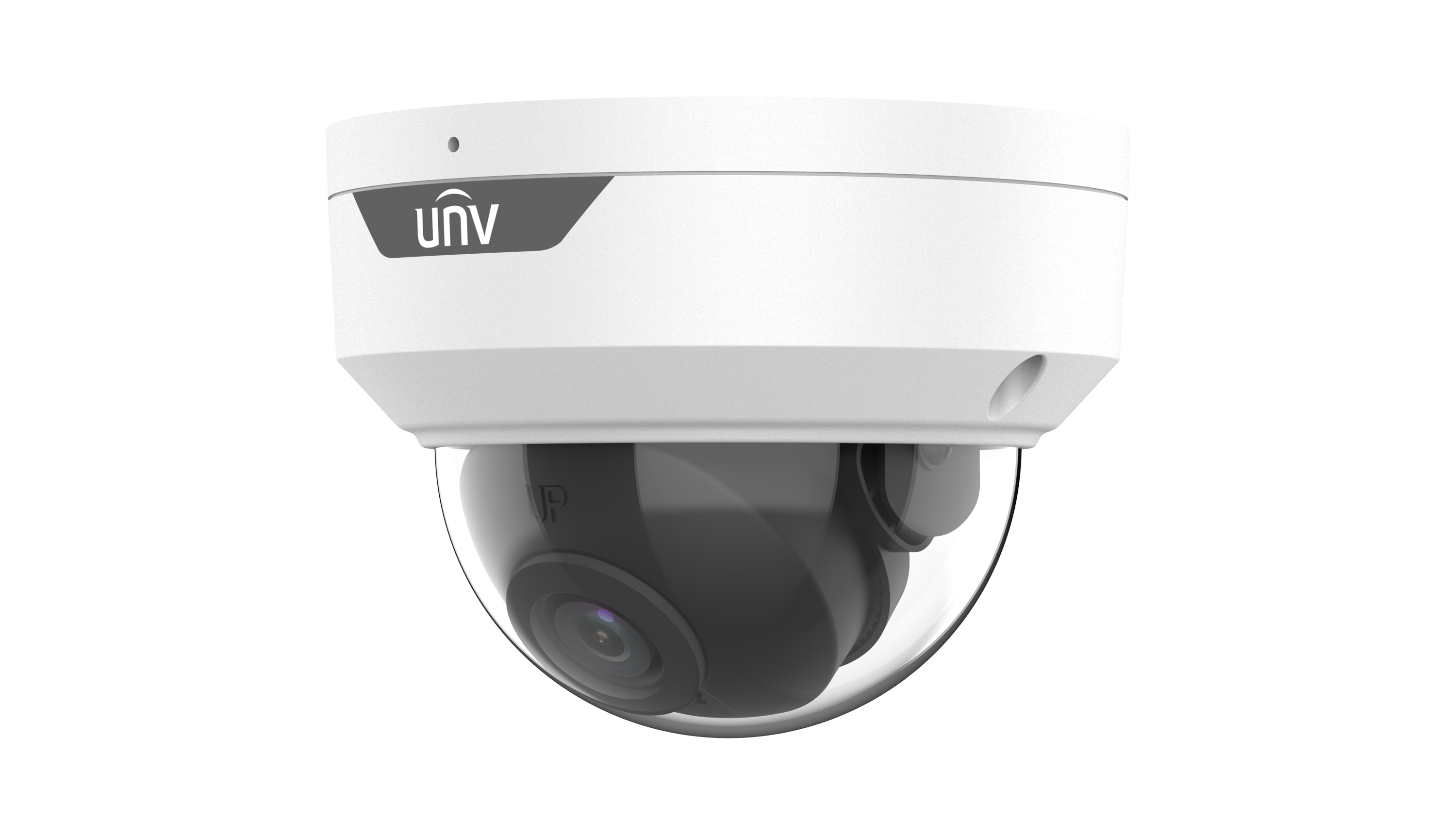

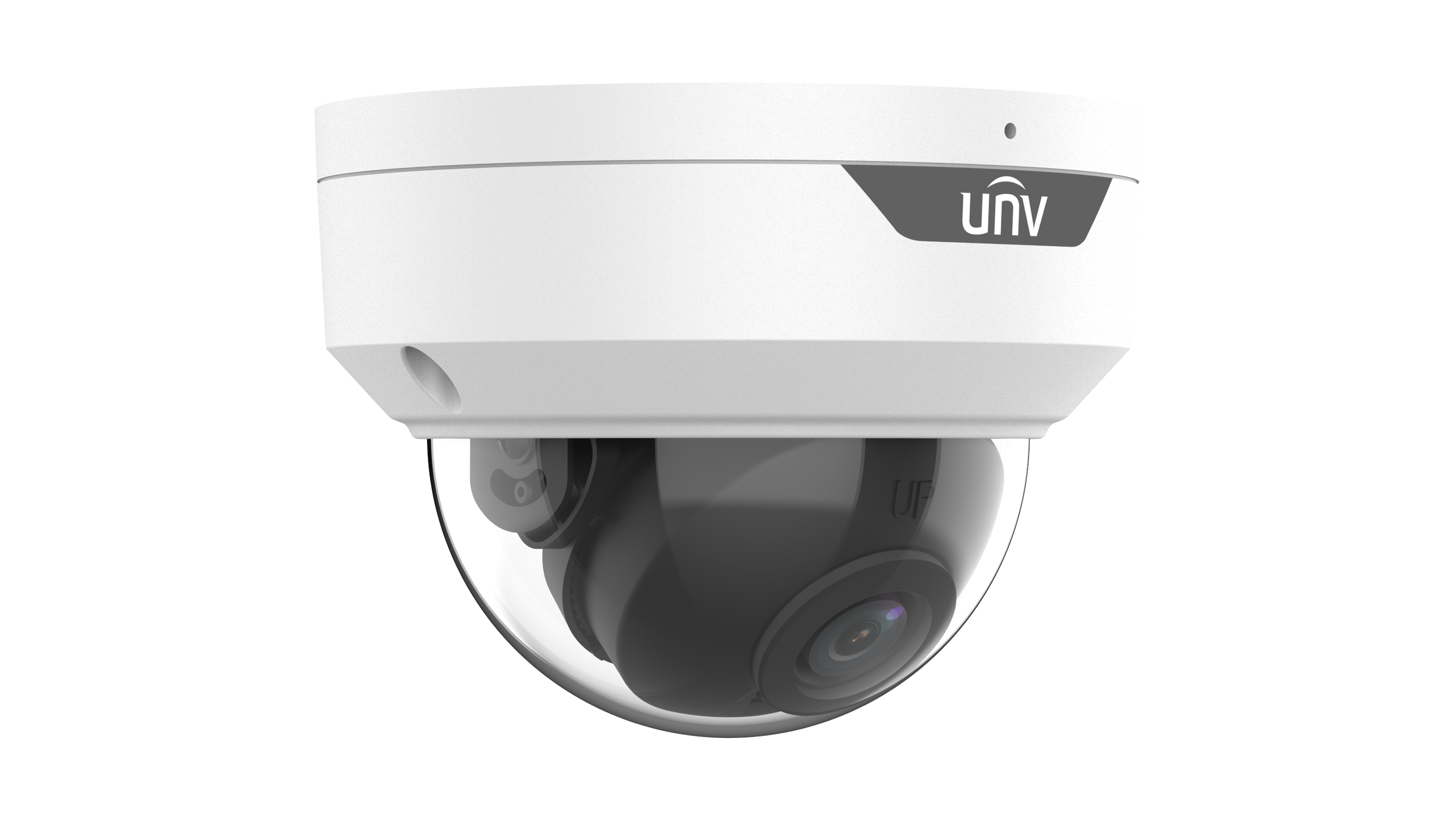

2MP LightHunter POC Fixed IR Dome Analog Camera
• * Coaxial cables are recommended for video signal transmission, such as SYV-75-3, SYV-75-5, or RG59 cables.
• * To achieve power supply on the coaxial cable, please use the camera with our PoC series XVRs.
• High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• LightHunter monitoring with high-sensitivity sensor
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal/vertical flip
• OSD configuration menu, easy to operate
• Water and dust resistant (IP67) and vandal-resistant (IK10)
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports defog
• 3-Axis
• Support PoC power supply
Specification
Accessories
Download
How to buy
 UAC-D122-APF28M
Camera
Max Resolution2 MP
Sensor Size1/2.9" CMOS
Min. Illumination0.005 lux (F1.6, AGC ON)
0 lux (IR on)
Lens
Focus2.8 mm
Lens MountM12
Angle of View (H)101.5°
Angle of View (V)56.9°
Angle of View (D)117.4°
Illuminator
Illuminator NumberOne IR illuminator
Illumination Distance30m
Lifetime≥ 60000 hours
Video
Resolution1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame RateTVI/AHD/CVI: 1080P@25fps(default), 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter TimePAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Day/NightThree modes: Auto (default), Day, Night
Digital Noise Reduction2D/3D
White BalanceTwo modes: Auto (default), Manual
WDRDWDR
Smart IRSupport
FlipSupports 180°horizontal flip, 180°vertical flip
Digital DefogSupport
Audio
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
* Audio function of the PoC series camera is only available when the camera is used with our PoC series XVRs.
Interface
Power Interface5.5 mm Power Interface
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature-30°C to 60°C (-22°F to 140°F)
Humidity≤ 95% RH (non-condensing)
Surge Protection4 KV for power, 4 KV for video output interfaces
General
PowerDC 12 V±25%/PoC
Power ConsumptionMAX 3.3W
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount, Tilted Mount
DimensionsΦ109mm*83mm (diameter*height)
MaterialMetal
Weight390g (0.86lb)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
SafetyCE-LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529)
IK10 (IEC 62262)
