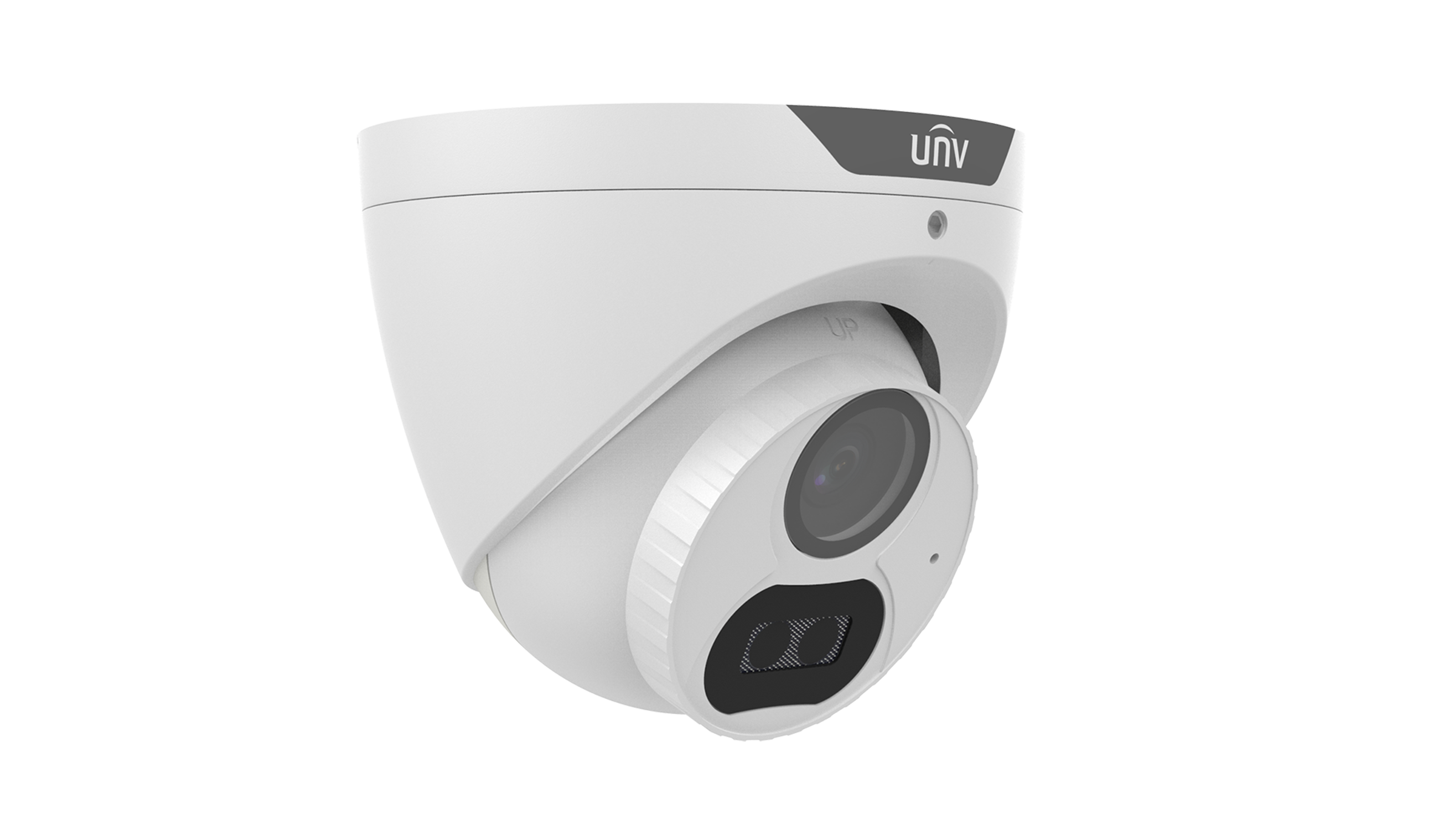

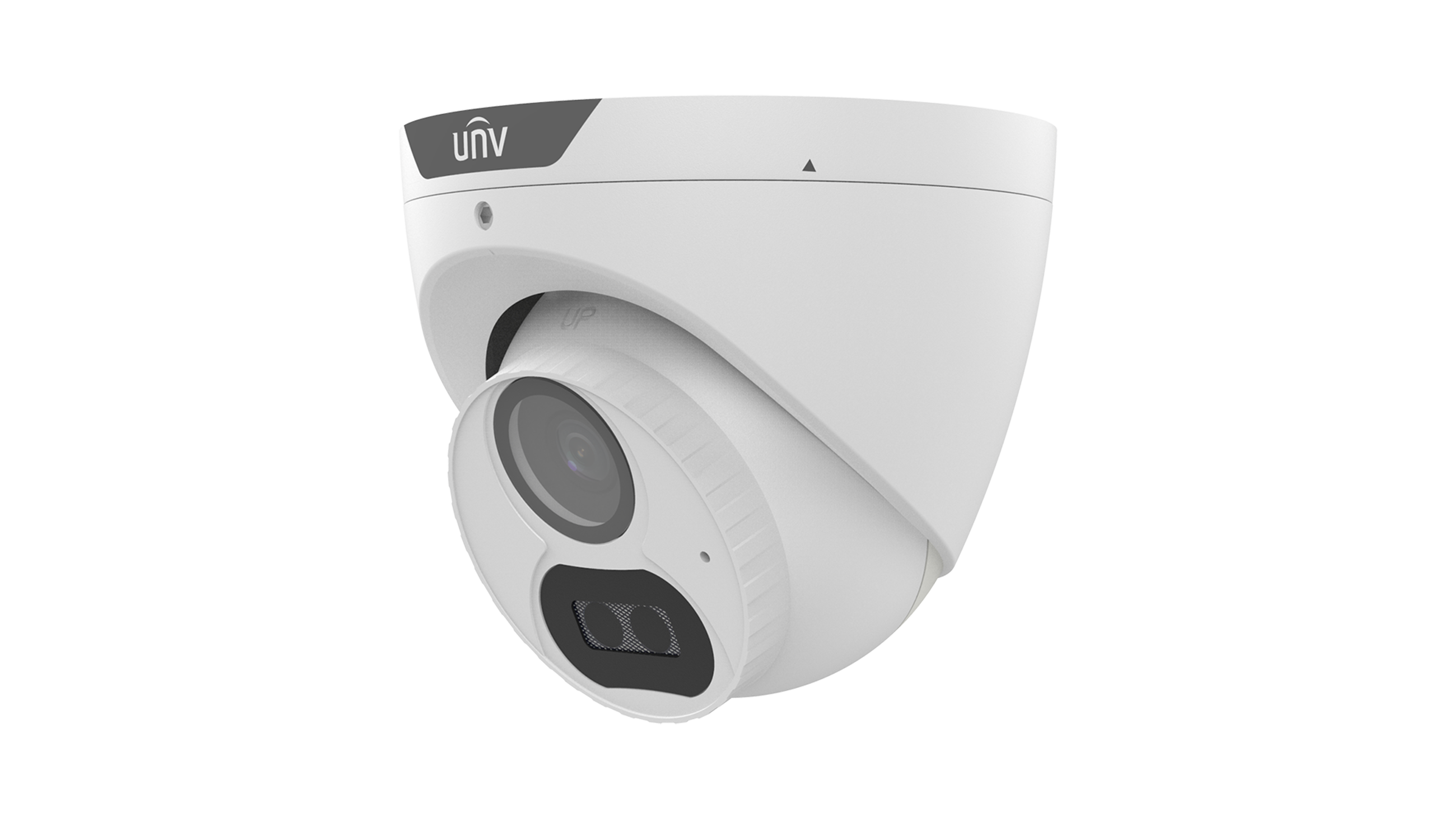

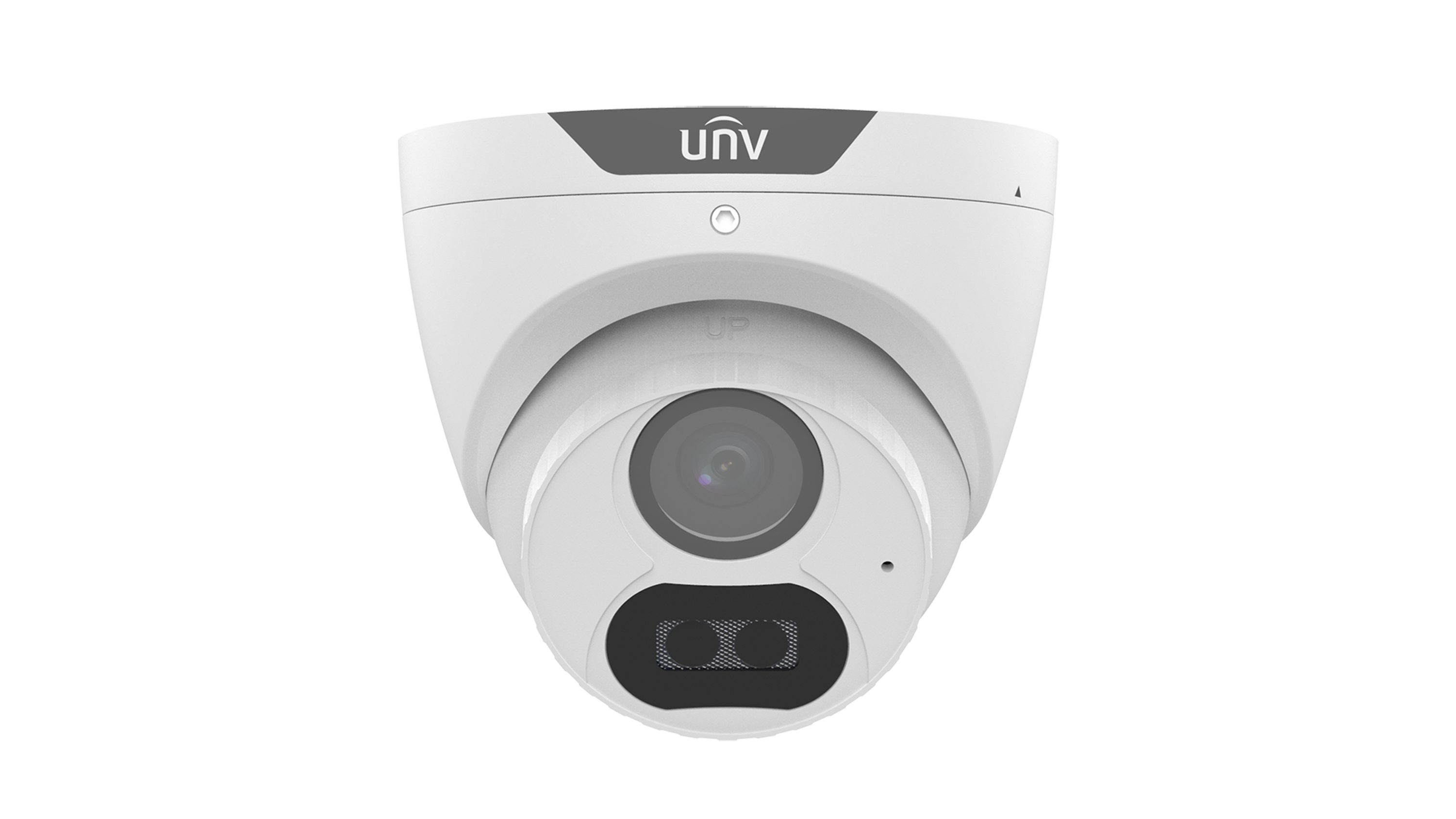

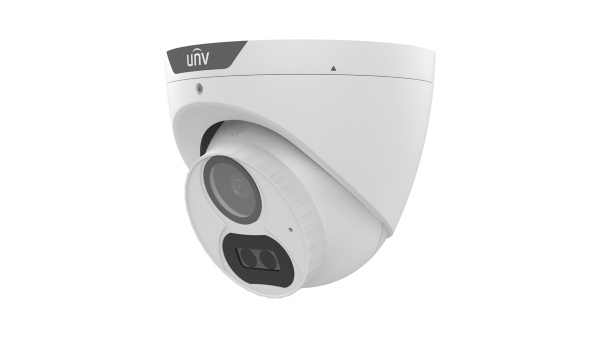

UAC-T125-APF28LM | ||||||||
Sensor | ||||||||
Pixel | 5 MP | |||||||
Sensor Size | 1/2.7" CMOS | |||||||
Min. Illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR on) | |||||||
Lens | ||||||||
Focus | 2.8 mm | |||||||
Lens Mount | M12 | |||||||
Angle of View (H) | 109.1° | |||||||
Angle of View (V) | 60.9° | |||||||
Angle of View (D) | 126.7° | |||||||
Illuminator | ||||||||
Illuminator Number | Two IR illuminators | |||||||
Illumination Distance | 40m | |||||||
Lifetime | ≥ 60000 hours | |||||||
Video | ||||||||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |||||||
Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC | |||||||
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
Image | ||||||||
Exposure Mode | Four modes: Global (default), BLC, HLC, DWDR | |||||||
Day/Night | Three modes: Auto (default), Day, Night | |||||||
Digital Noise Reduction | 2D | |||||||
White Balance | Two modes: Auto (default), Manual | |||||||
WDR | DWDR | |||||||
Smart IR | Support | |||||||
Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Audio | ||||||||
Built-in Mic | Support | |||||||
Camera Audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps * Audio function of the POC series camera is only available when the camera is used with our POC series XVRs. | |||||||
Interface | ||||||||
Power Interface | 5.5 mm Power Interface | |||||||
Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
Humidity | ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 4 KV for power, 4 KV for video output interfaces | |||||||
General | ||||||||

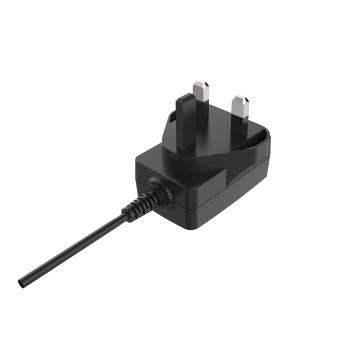

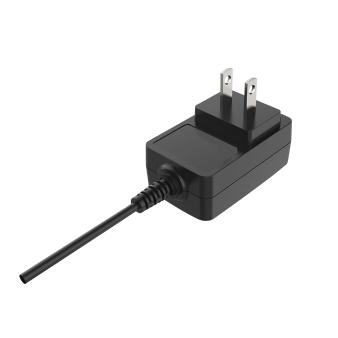

Power | DC 12 V±25%/PoC | |||||||
Power Consumption | MAX 3.4W | |||||||

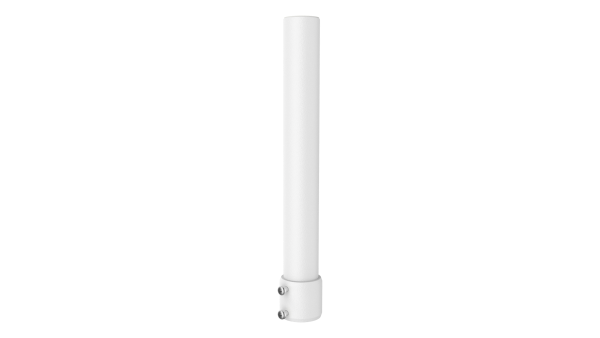

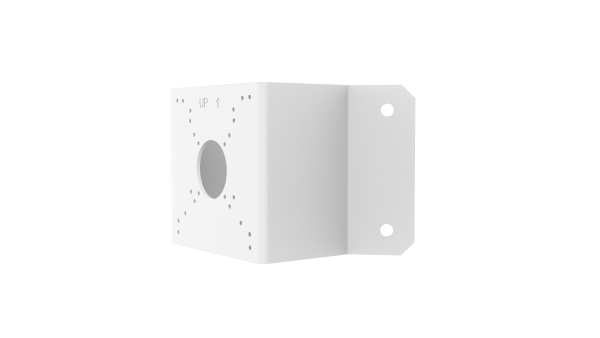

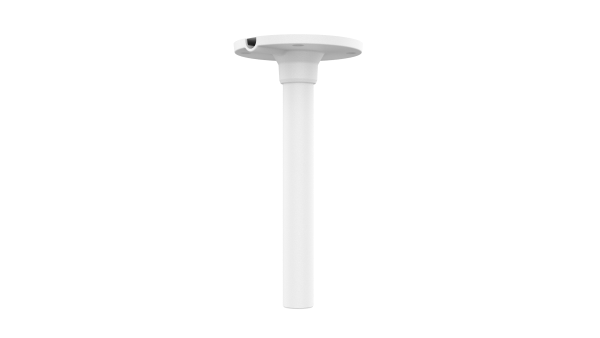

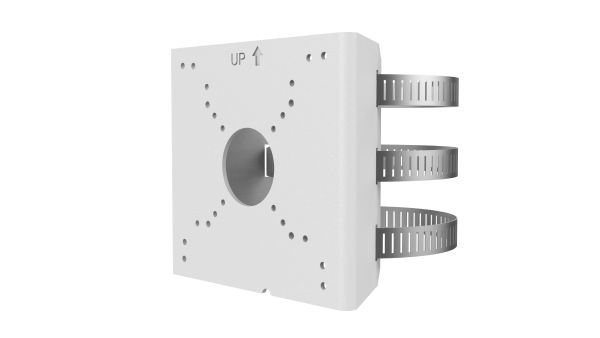

Mount | Wall Mount, Pole Mount, Corner Mount, Pendant Mount | |||||||
Dimensions | Φ111mm*98mm (diameter*height) | |||||||
Material | Metal + Plastic | |||||||
Weight | 370g (0.82lb) | |||||||
OSD Menu Language | 11 Languages English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) |
Class | Date | Title | Language | Type | Preview | Download |
Datasheet | 12/20/2024 00:41:44 | UNV UAC-T125-APF28LM 5MP LightHunter PoC Fixed IR Turret Analog Camera.pdf | English | Preview | Download A > |
Class | Date | Title | Type | Download |
HD Image | 12/14/2024 2:40:44 AM | UAC-T125-APF28LM_HD_Image_1.png | png | Download |
HD Image | 12/14/2024 2:40:44 AM | UAC-T125-APF28LM_HD_Image_2.png | png | Download |
HD Image | 12/14/2024 2:40:44 AM | UAC-T125-APF28LM_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Preview | Download |
User Manual | 11/7/2024 20:53:48 | UNV-Analog Cameras User Manual.pdf | English | Preview | Download A > |
Class | Date | Title | Language | Type | Preview | Download |
Quick Guide | 8/20/2024 04:13:50 | Quick Guide.pdf | English | Preview | Download A > |
Class | Date | Title | Download |
Dimensions | 12/14/2024 2:40:44 AM | UAC-T125-APF28LM_Dimensions_1.png | Download |
