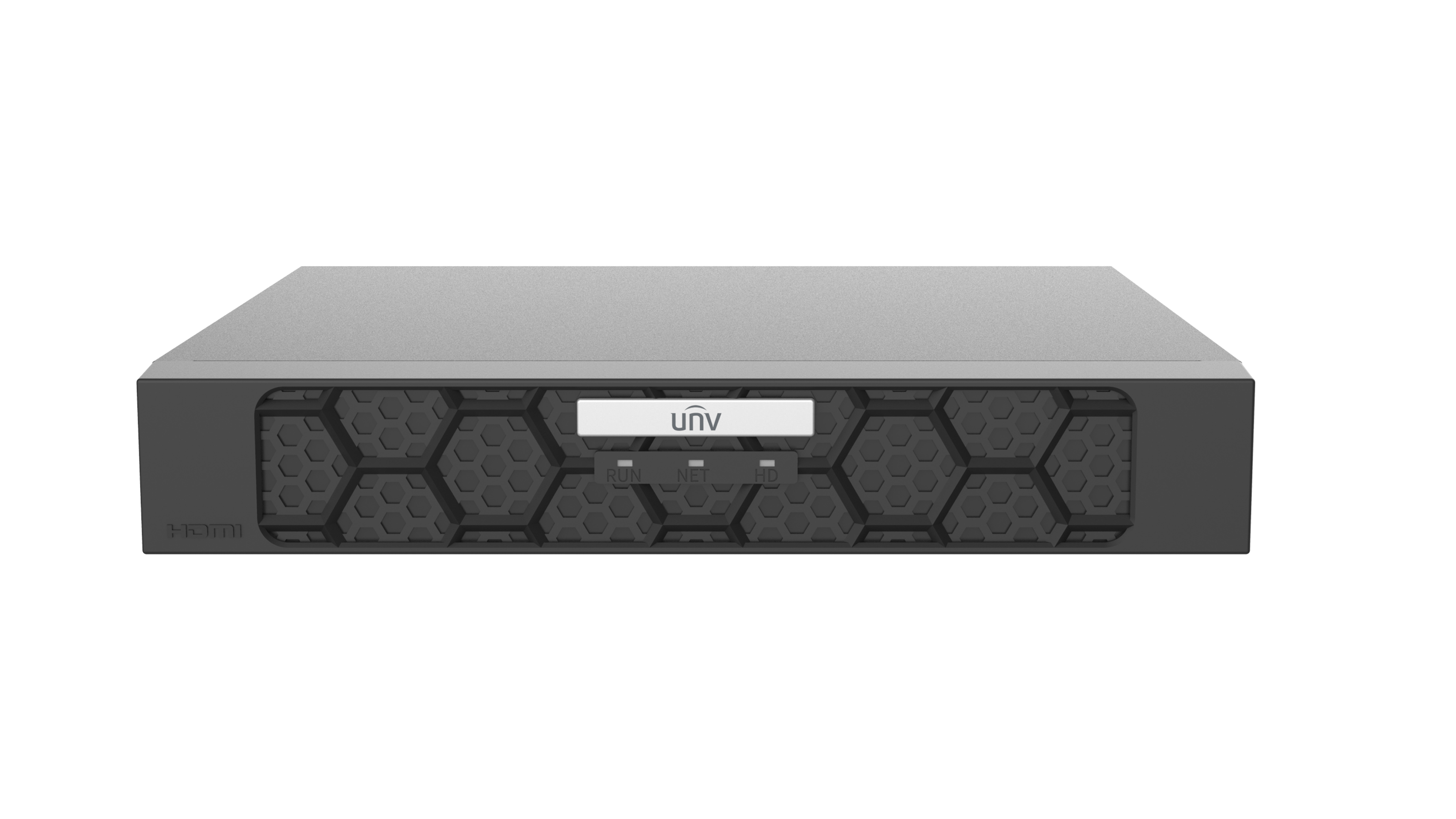

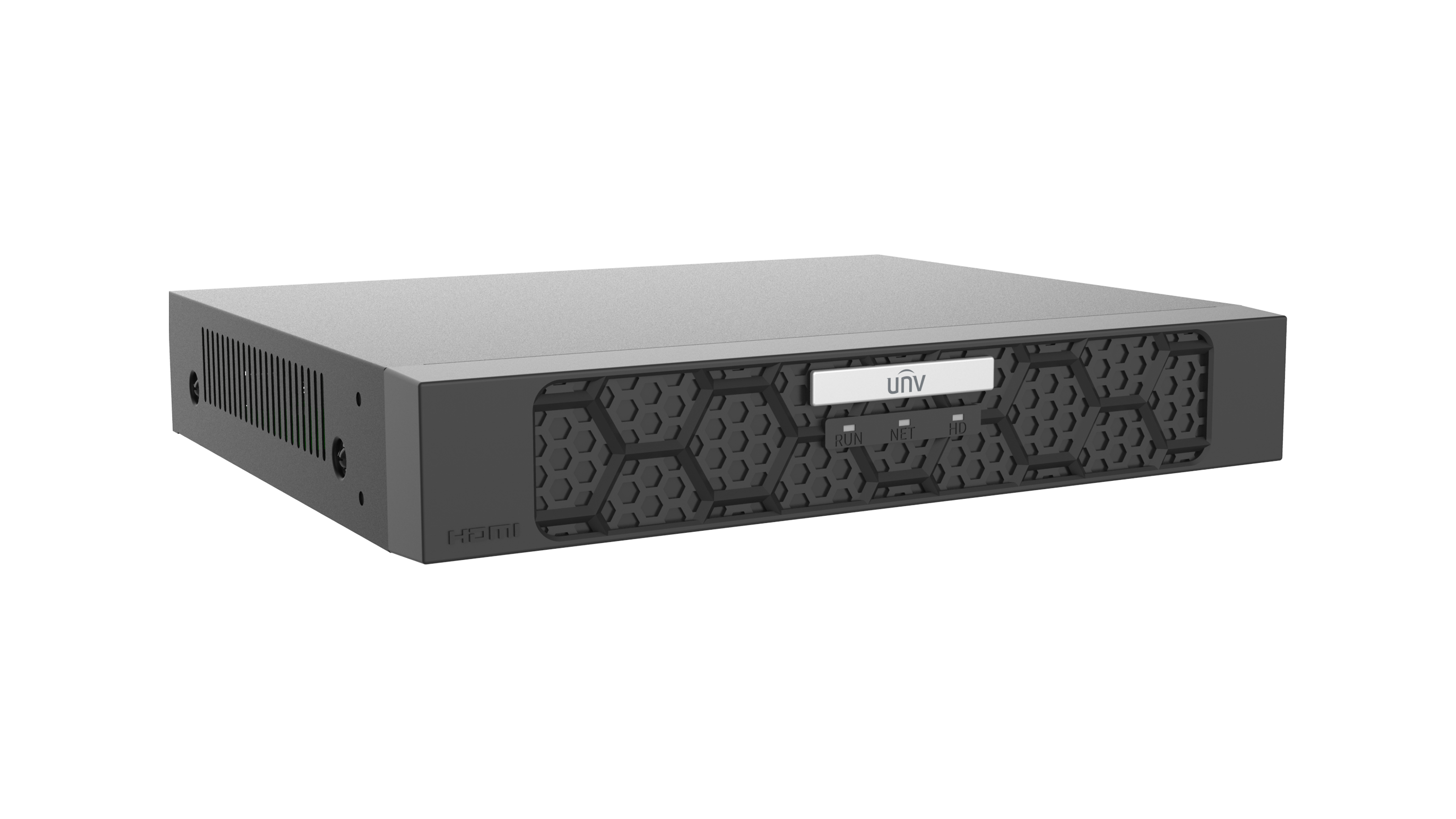

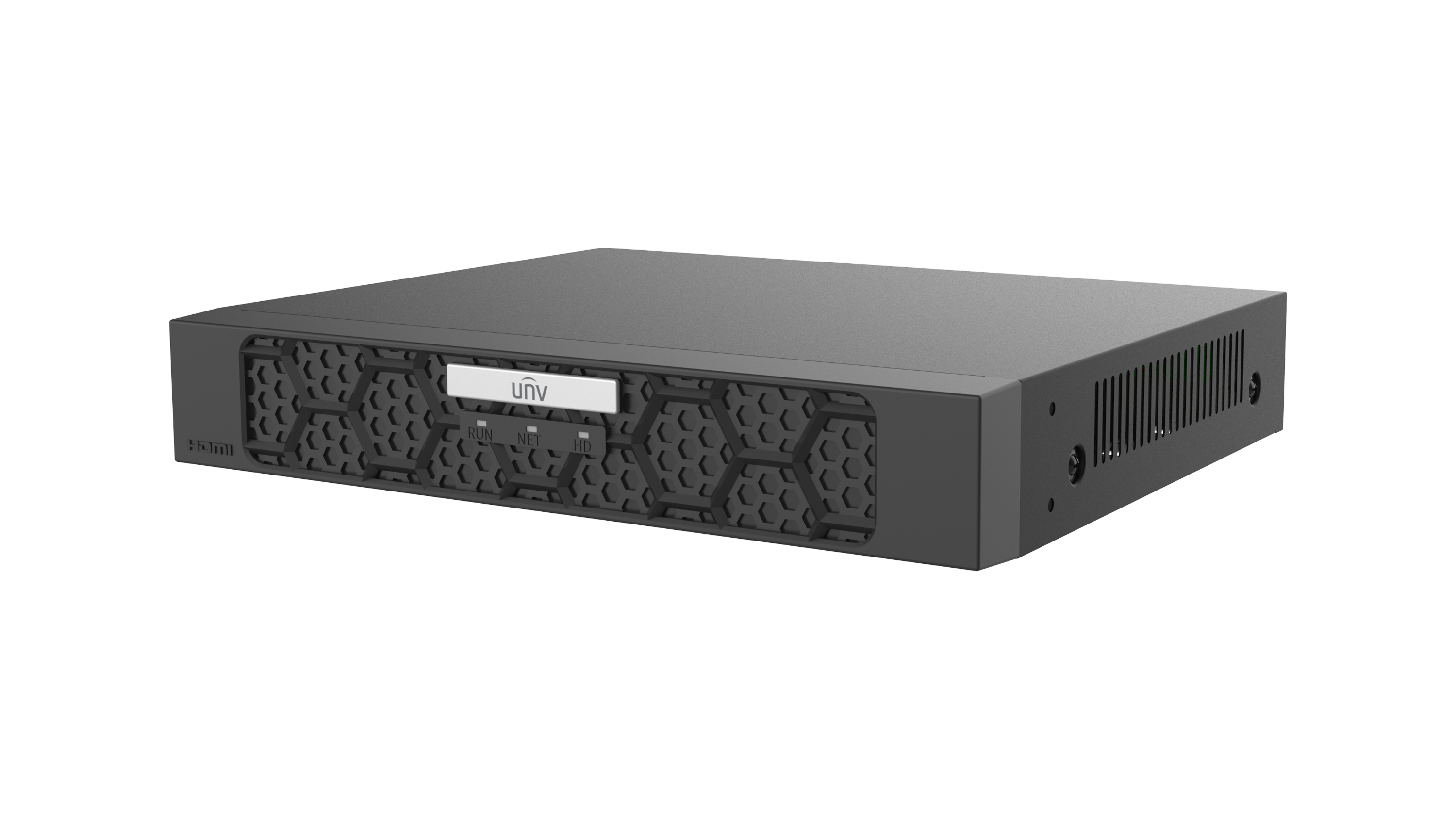

| NVR501-04B-P4-A |
Decoding |
Decoding Format | Ultra 265, H.265, H.264 |
Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30 |
Audio Compression | G.711A, G.711U |
Network |
Incoming Bandwidth | 80Mbps |
Outgoing Bandwidth | 64Mbps |
Max Users Can Be Added | 32 |
Remote Users | 128 |
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6 |
Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
Video/Audio Input |
IP Video Input | 4-ch |
RCA Audio Input | 1-ch |
Video/Audio Output |
HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA Output | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
RCA Audio Output | 1-ch |
Liveview Display | 1/4 |
Corridor Mode Screen | 3/4 |
Two-way Audio |
Two-way Audio | 1-ch, RCA (Using the audio input and output) |
Snapshot |
FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
Recording |
Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
Smart |
VCA Detection by IPC | Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring) |
VCA Search | Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
Smart by IPC | Total 4-ch(Face Detection, SIP, UMD) |
Alarm |
General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language |
GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk |
SATA | 1 SATA Interface |
Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
External Interface |
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
USB | Rear panel: 1 x USB2.0, 1 x USB3.0 |
RS485 | N/A |
RS232 | N/A |
Alarm In | 4-ch |
Alarm Out | 1-ch |
Power Supply | DC 48V/1.35A |
PoE |
Max Power | Max 30W for single port, Max 50W in total |
Supported Standard | IEEE 802.3at, IEEE 802.3af |
Working Environment |
Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
Working Humidity | ≤ 90% RH (non-condensing) |
Power Consumption (without HDD) | ≤ 10W |
Dimensions |
Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
Certification |
Certification | CE, FCC, UL, RoHS, WEEE |
CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
FCC | Part15 Subpart B |
