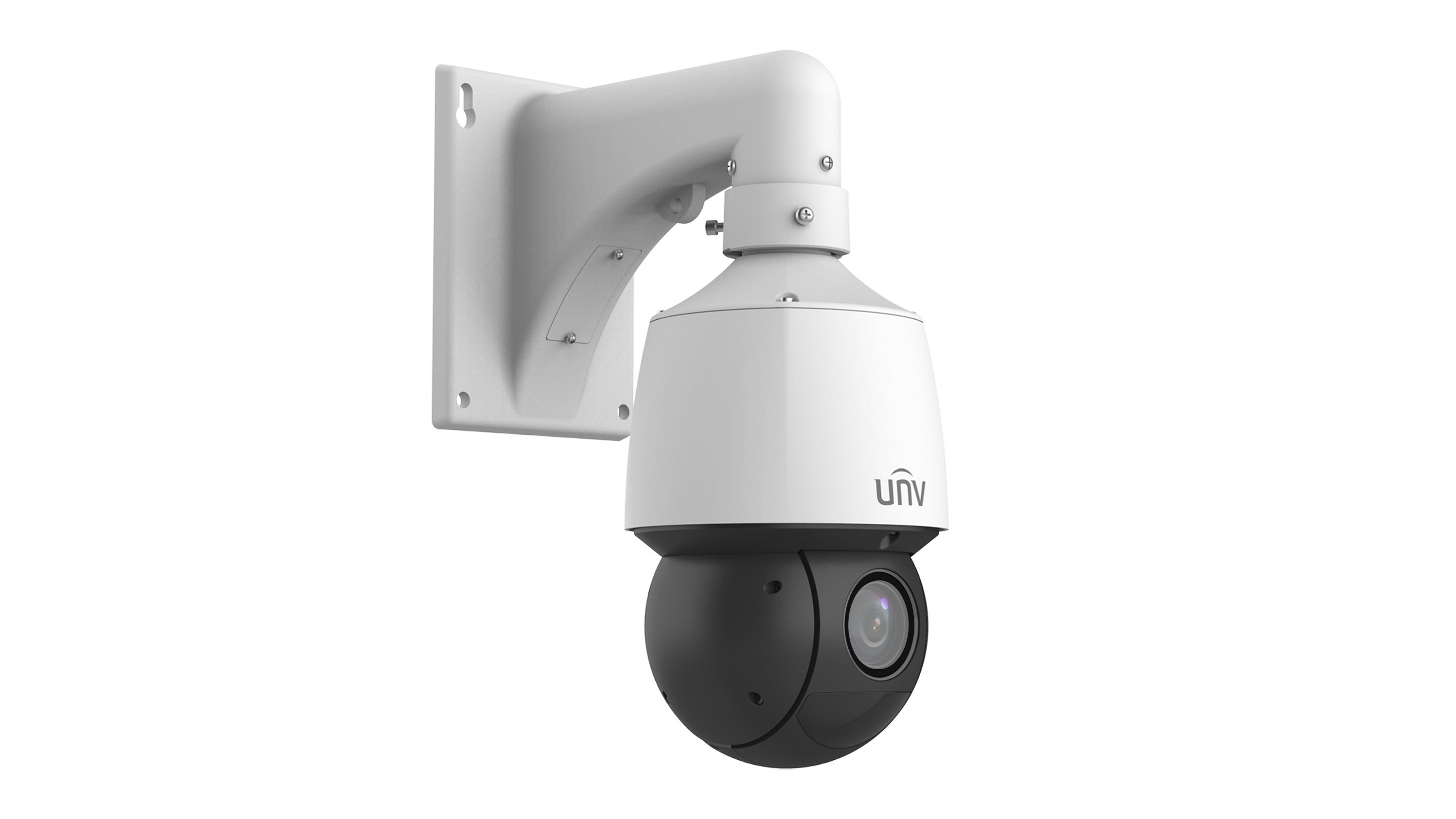

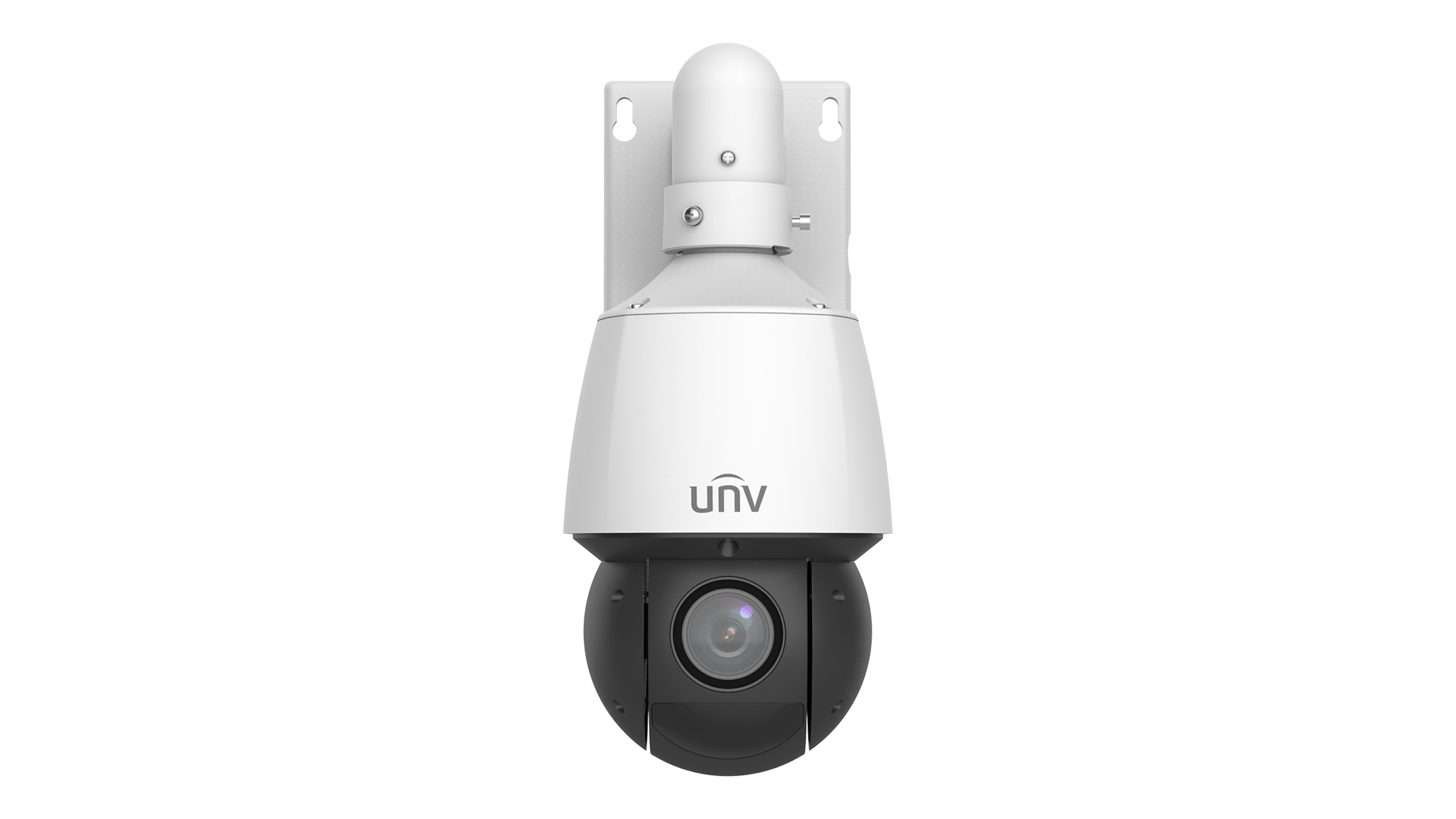

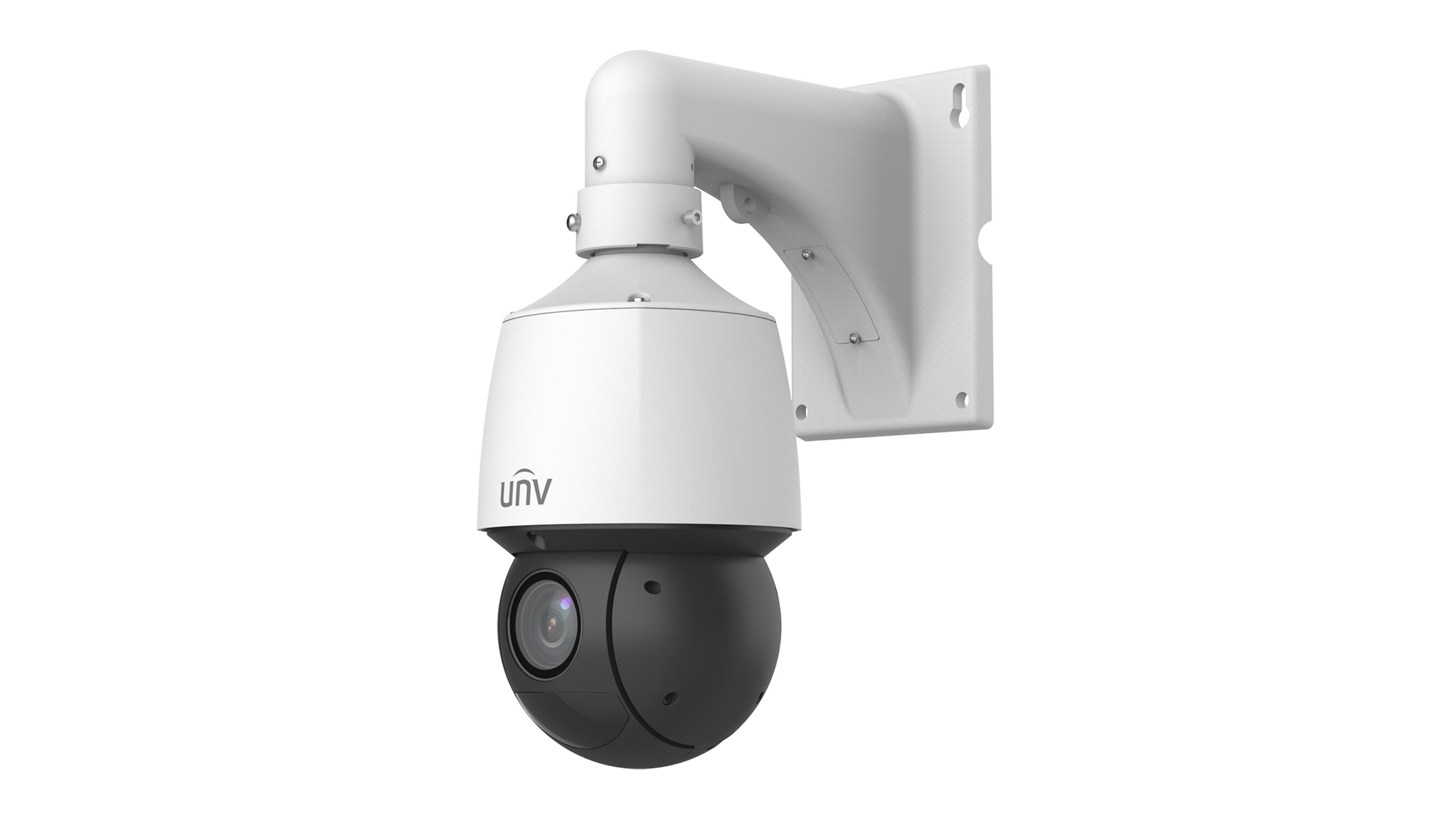

IPC6424SR-X25-VF-B | ||||||||
Camera | ||||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
WDR | 120 dB | |||||||
S/N | >56 dB | |||||||
Lens | ||||||||
Focal Length | 4.8 to 120 mm | |||||||
Digital Zoom | 16X | |||||||
Optical Zoom | 25X | |||||||
Iris | F1.5 to F3.8 | |||||||
Field of View (H) | 52.20°~2.74° | |||||||
Field of View (V) | 30.81°~1.54° | |||||||
Field of View (D) | 64.20°~3.23° | |||||||
DORI | ||||||||
DORI Distance (Lens) | 4.8~120(mm) | |||||||
DORI Distance (Detect) | 119.3m~2475.0m(391.2ft~8120.1ft) | |||||||
DORI Distance (Observe) | 47.7m~990.0m(156.5ft~3248.0ft) | |||||||
DORI Distance (Recognize) | 23.9m~495.0m(78.2ft~1624.0ft) | |||||||
DORI Distance (Identify) | 11.9m~247.5m(39.1ft~812.0ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | 100 m (328.1 ft) | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 2MP (1920*1080), Max 30fps Third Stream: D1 (720*576), Max 30fps | |||||||
Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Triple Streams | |||||||
OSD | Up to 10 OSDs | |||||||
Intelligent | ||||||||
Exception Detection | Object Removed, Object Left Behind | |||||||
People Counting | Support People Flow Counting and Crowd Density Monitoring | |||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
Image | ||||||||
Defog | Digital Defog | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Smart IR | Support | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Heatwave Reduction | Support | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input, Alarm Output | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | |||||||
PTZ | ||||||||
Number of Presets | 1024 | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
Patrol Stay Time | 15 s to 1800 s | |||||||
Preset Image Freeze | Support | |||||||
Home Position | Support | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] | |||||||
Alarm I/O | 2/1 | |||||||
Serial Port | 1 * RS485 | |||||||
Built-in Mic | N/A | |||||||
Built-in Speaker | N/A | |||||||
WIFI | N/A | |||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
Video Output | 1 BNC (For debugging) | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC12V(±25%,3A), PoE+(IEEE 802.3at) | |||||||
Power Consumption | MAX 21W | |||||||
Power Interface | Ø5.5 mm coaxial power plug | |||||||
Dimensions | Ø 162 x 295mm (Ø 6.4" x 11.6") (Ø x H) | |||||||
Weight | 3.05kg(6.72lb) | |||||||
Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
Surge Protection | 6 KV | |||||||
Reset Button | Support | |||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
