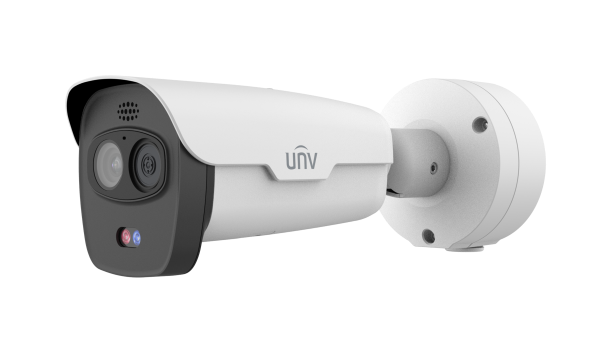

TIC2621SR-F3-4F4AC-VD
Thermal & Optical Dual-spectrum Bullet Network Camera
• Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
• 1/1.8“ target surface, high sensitivity sensor, satisfy the need of starlight monitoring
• Support reliable fire detection, smoking detection and fire shield area
• Thermal module supports temperature detection and cold&hot spot tracking which highlights the abnormal temperature, and link to alarm
• Thermal & Optical dual-spectrum smart intrusion prevention: cross line, enter area, leave area, intrusion
• Support picture-in-picture mode, real-time contrast live, more convenient and clear
• Support audio and light alarm, with red and blue warning lights built in
• Ultra 265, H.265, H.264, MJPEG
• Triple streams
• Max 2688*1520@30fps in the optical module and Max 720P@30fps in the thermal module
• DC12V±25% or PoE power supply
• Alarm 2 in and 2 out, Audio 1 in and 1 out, Micro SD, up to 256 G
Specification
Accessories
Download
How to buy
 TIC2621SR-F3-4F4AC-VD
Camera
Sensor-Optical1/1.8", 4.0 megapixel, progressive scan, CMOS
Min. Illumination-OpticalColour:0.001lux (F1.6, AGC ON)
B/W: 0.0005lux(F1.6,AGC ON)
0 lux with IR
Day/Night-OpticalIR-cut filter with auto switch (ICR)
Sensor-ThermalVanadium Oxide Uncooled Focal Plane Arrays
Original Resolution-Thermal256*192
Pixel Size12 um
NETD＜55 mk @ F1.0 @ 25 ℃
ShutterAuto/Manual,
1 ~ 1/100000s
Adjustment AnglePan: 0° to 360°
Tilt: 0° to 90°
Rotate: 0° to 360°
WDR120dB
S/N>56dB
Lens
Lens Type-Optical4mm@F1.6
Iris-OpticalFixed aperture
Field of View (H)-Optical89.9°
Field of View (V)-Optical49.1°
Field of View (D)-Optical110.6°
Lens Type-Thermal3.2mm@F1.1
Iris-ThermalF1.1
Field of View (H)-Thermal57.0°
Field of View (V)-Thermal42.0°
Field of View (D)-Thermal74.1°
Focus-ThermalAuto, Semiautomatic, Manual
DORI
DORI Distance (Lens)-Optical4mm
DORI Distance (Detect)-Optical62.1m(203.6ft)
DORI Distance (Observe)-Optical24.8m(81.5ft)
DORI Distance (Recognize)-Optical12.4m(40.7ft)
DORI Distance (Identify)-Optical6.2m(20.4ft)
DRI
DORI Distance (Lens)-Thermal3.2 mm
DORI Distance (Detect)-ThermalVehicle: 316m (target size 4mx1.4m); human: 126m (target size 1.8mx0.5m)
DORI Distance (Recognize)-ThermalVehicle: 79m (target size: 4mx1.4m); human: 32m (target size: 1.8mx0.5m)
DORI Distance (Identify)-ThermalVehicle: 45m (target size: 4mx1.4m); human: 18m (target size: 1.8mx0.5m)
Illuminator
IR Range-OpticalUp to 50 m (164 ft) IR range
Wavelength-Optical850 nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Resolution-Optical4MP(2688*1520), Max 30fps
Video Resolution-Thermal720P(1280*720), max 30fps
Video Bit Rate128 Kbps ~ 16 Mbps
U-codeSupport
ROIUp to 8 areas
Video StreamTriple Streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas (8 blacks/ 8 mosaics)
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Palette-Thermalwhite hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Intelligent
Smart Intrusion Prevention-OpticalSupport False Alarm Filtering: Line Crossing Detection, Intrusion Detection, Enter Area, Leave Area Support Motor Vehicle, Non-motor Vehicle and Pedestrian Detection Capture and Plan Arming
Smart intrusion prevention-ThermalSupport false alarm filtering: Line crossing detection, Intrusion detection, Enter Area, Leave Area
Support motor vehicle and pedestrian detection capture and plan arming
Smoking Detection-ThermalSupport the detection of smoking in the environment and link to alarm
Temperature Detection-ThermalSupport area detection, and link to alarm, the temperature value can be added to the alarm picture
Support cold&hot point tracking, timely and clearly shows the abnormal point
Up to 12 rules can be set
Temperature range: -20°C ~+150°C
Temperature accuracy: Max (±8°C/±8%)
Events
Fire DetectionSupport the detection of fire point in the environment and up to 10 fire points can be detected
Basic Detection-OpticalMotion Detection, Tampering Alarm
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Event
Basic Detection-ThermalAudio Detection
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate16KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SNMP, 802.1x, QoS, SSL/TLS, SSH
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Basic and Digest Authentication for RTSP, Export Operation Logs, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, EZLive, EZView
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O1/1
Alarm I/O2/2
Serial Port1 channel RS485 interface
Built-in MicSupport
Built-in SpeakerSupport
Network1 x RJ45 10M/100M Base-TX Ethernet
General
PowerDC12V(±25%), PoE(IEEE802.3af)
Power ConsumptionMax 12W
Power InterfaceØ 5.5 mm coaxial power plug
DimensionsΦ354mm x 104mm x 116mm(Φ13.9” x 4.1” x 4.6”)
Weight1.85kg(4.08lb)
Working Environment-40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% RH (non-condensing)
Reset ButtonSupport
