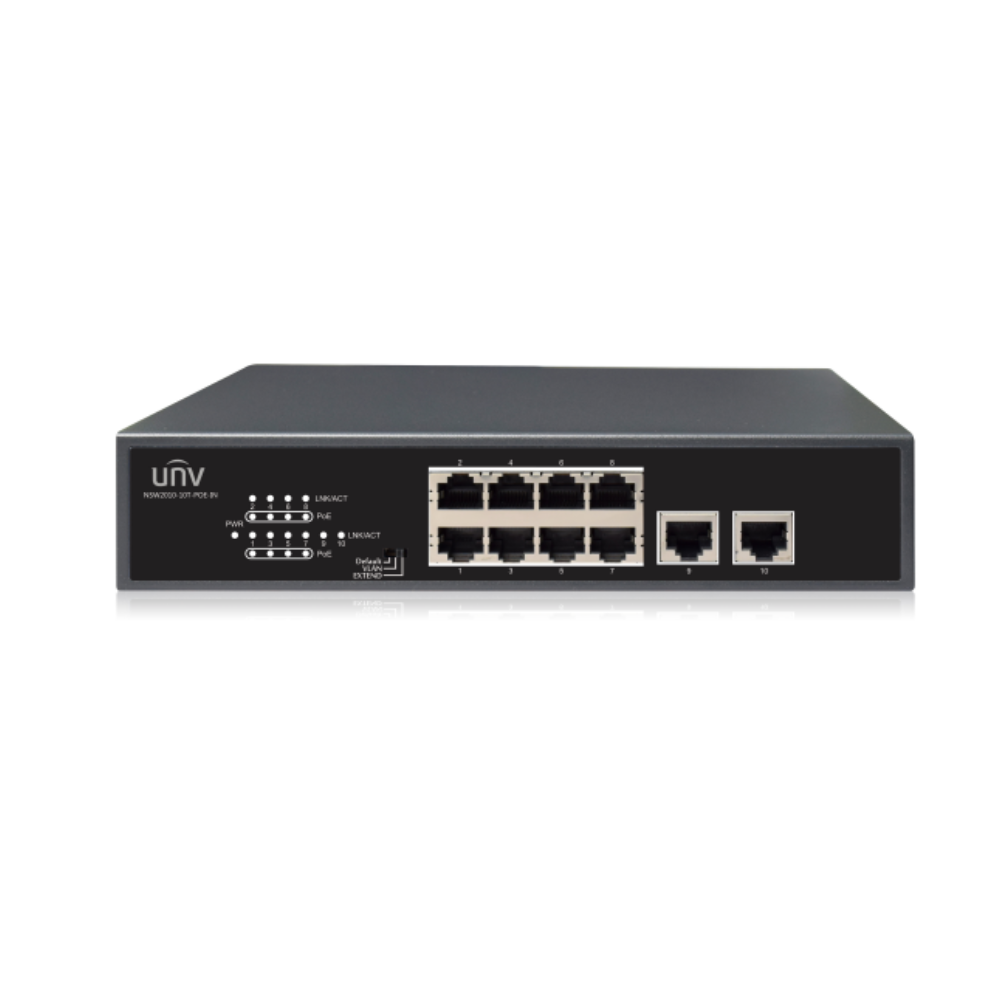

| NSW2010-10T-PoE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 10×100Mbps network ports (RJ45), including 8 PoE ports | |||||||
| Forwarding performance | 1.49Mpps | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 2 Gbps | |||||||
| Packet Buffer | 1.625 M bit | |||||||
| MAC | 4K | |||||||
| Cooling Fans | 0 | |||||||
| Mean Time Between Failure (MTBF) | > 50000 hours | |||||||
| Weight | <1.22 kg | |||||||
| Operating humidity | 10%~90% (non-condensing) | |||||||
| Dimensions (W×D×H) | 220mm x 150mm x 44mm(8.7"×5.9"×1.7") | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 6/20/2025 12:51:14 PM | UNV NSW2010-10T-POE-IN Ethernet Switches.pdf | English | Preview | Download A> |
| Class | Date | Title | Type | Download |
| HD Image | 3/14/2025 3:01:20 AM | NSW2010-10T-PoE-IN_HD_Image_1.png | png | Download |
