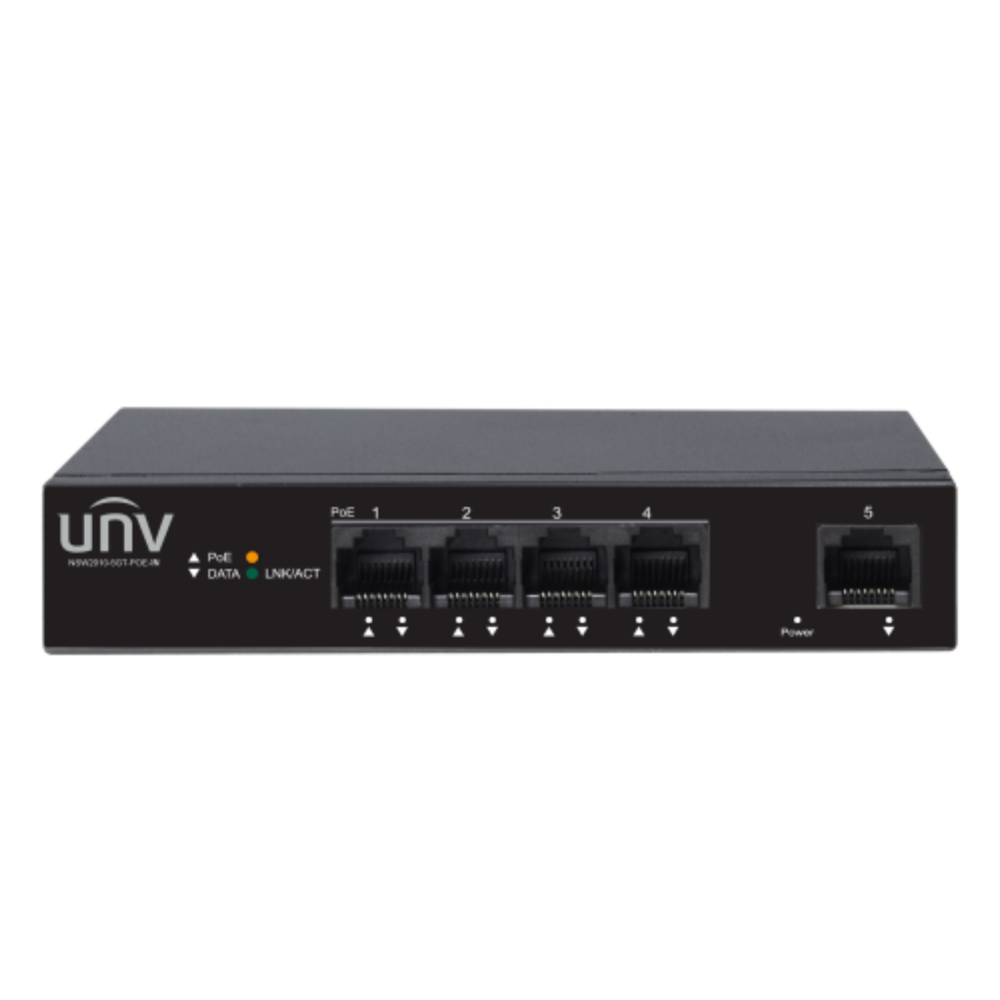

NSW2010-5GT-POE-IN
Ethernet Switch(POE)
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
How to buy
 NSW2010-5GT-POE-IN
Hardware Specification
Ports Type4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45)
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity10 Gbps
Forwarding performance7.44Mpps
Packet Buffer1 M bit
MAC2K
Weight<1 kg
Dimensions (W×D×H)140mm x 76.7mm x 27.7mm
(5.5"×3"×1.1")
Power supplyAC: 100-240 V, 50/60 Hz
PoEsupport POE
Max. PoE PowerMax capacity: 60 W, Max capacity for single port: 30 W
Cooling Fans0
Storage Temperature-40 ℃ to 70 ℃
Operating temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Operating humidity10%~90% (non-condensing)
Storage humidity5%~90% (non-condensing)
IndicatorPWR (Green), LNK/ACT (Green), PoE (Orange)
