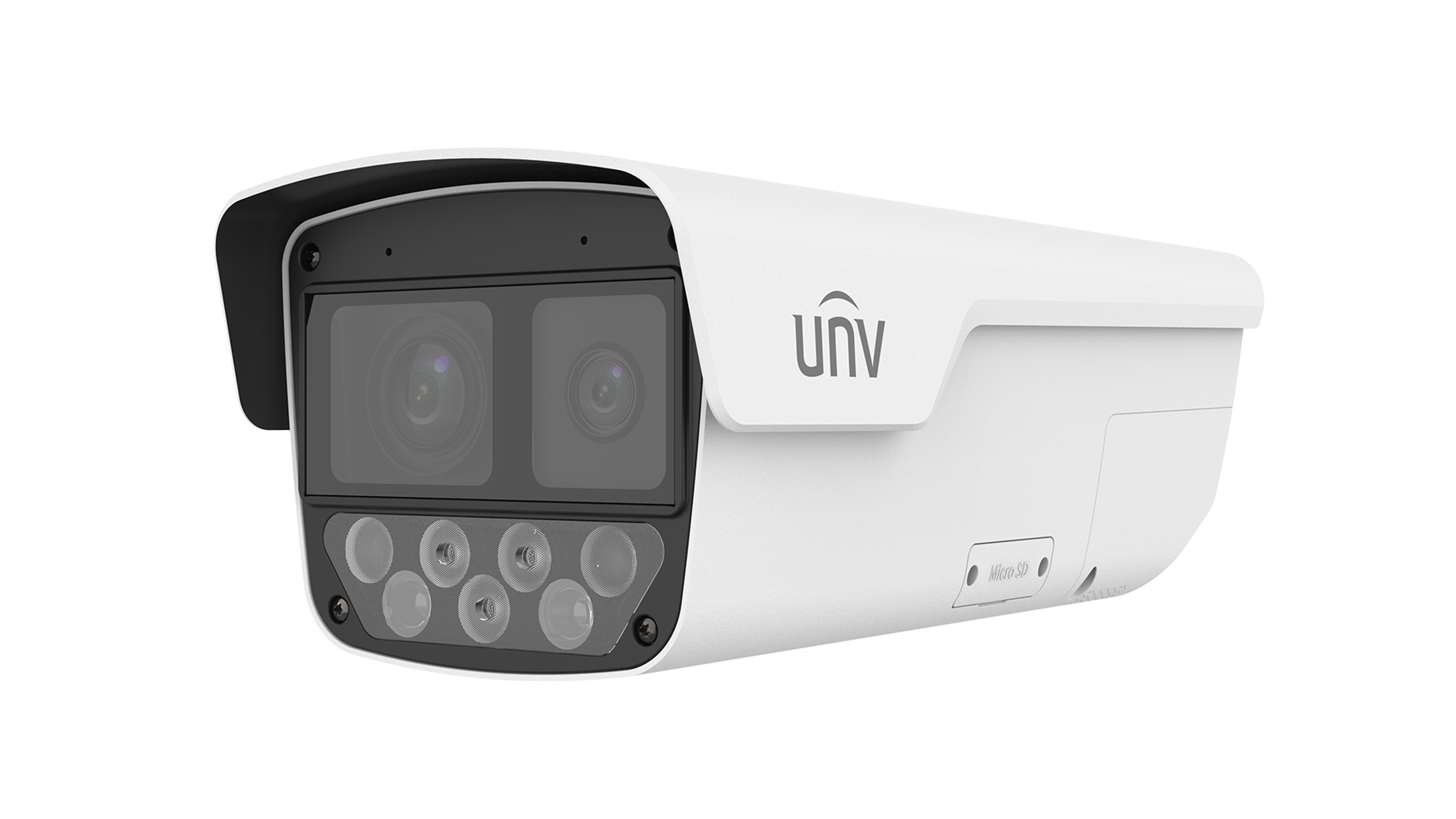

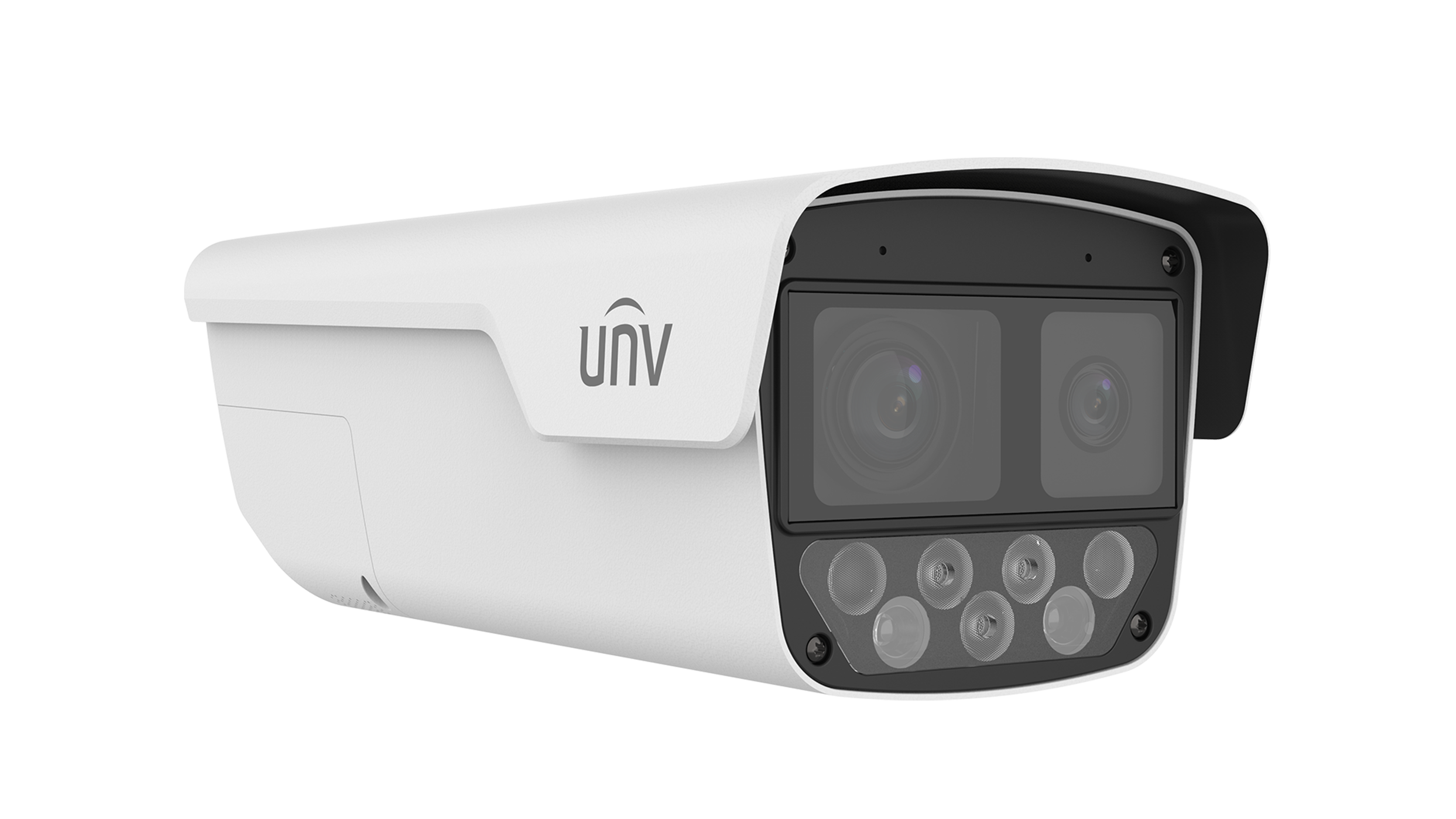

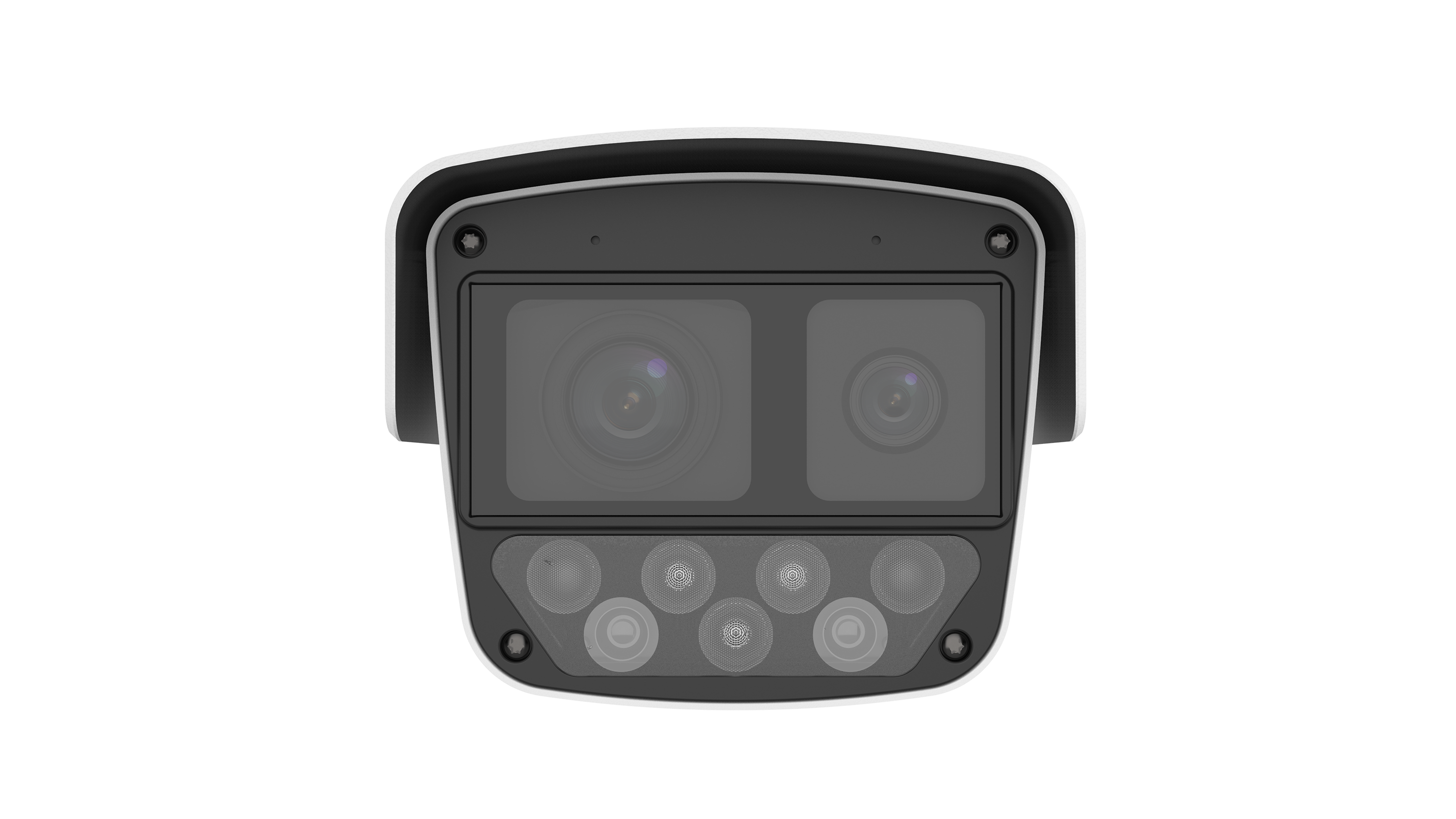

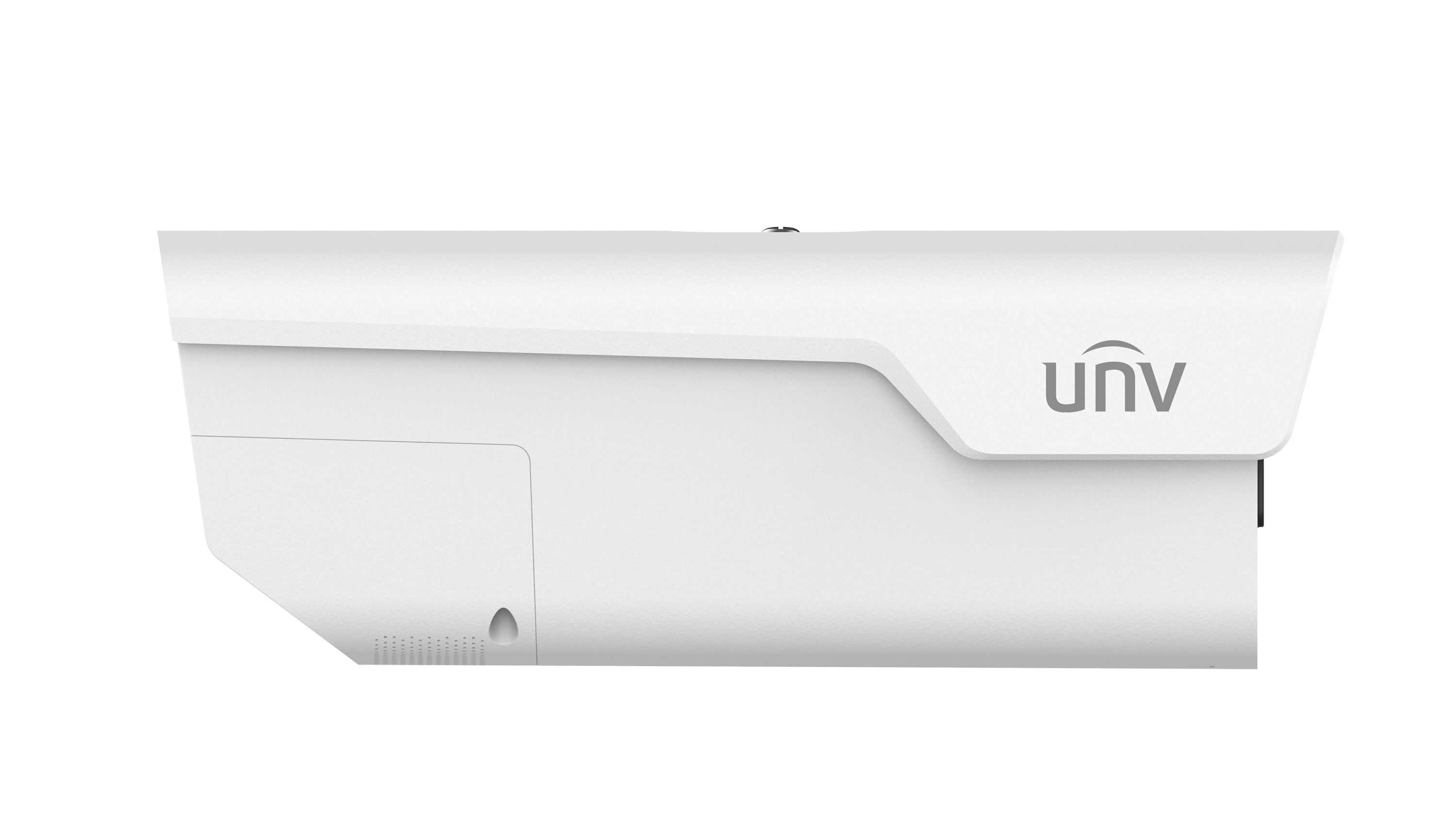

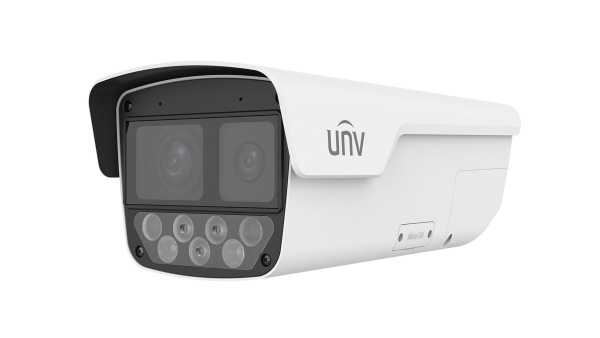

| | IPC28184EA-ADX5K-F40-I1 |
| Channel | Channel 1 | Channel 2 |
| Camera |
| Max Resolution | 4 MP | 8 MP |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.0, AGC ON) | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | N/A | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment Angle | Tilt: -10° to 10° (electric control , for installation and debugging) |
| S/N | >56 dB |
| Lens |
| Focal Length | 4.0 mm | 10 to 50 mm |
| Optical Zoom | N/A | 5X |
| Iris | F1.0 | F1.6 |
| Field of View (H) | 94.7° | 33.8° to 8.4° |
| Field of View (V) | 50.3° | 18.8° to 4.6° |
| Field of View (D) | 116.5° | 39.9° to 10.0° |
| Iris Type | Fixed | DC-iris |
| DORI |
| DORI Distance (Detect) | 79.1 m (259.6 ft.) | 292.5 m to 1237.5 m (959.6 ft. to 4060.0 ft.) |
| DORI Distance (Observe) | 31.7 m (103.9 ft.) | 117.0 m to 495.0 m (383.9 ft. to 1624.0 ft.) |
| DORI Distance (Recognize) | 15.8 m (51.8 ft.) | 58.5 m to 247.5 m (191.9 ft. to 812.0 ft.) |
| DORI Distance (Identify) | 7.9 m (25.9 ft.) | 29.3 m to 123.8 m (96.1 ft. to 406.2 ft.) |
| Illuminator |
| Illumination Distance (Warm Light) | Up to 30m (98.43ft) |
| Light On/Off Control | Auto/Manual |
| Illumination Distance (IR) | N/A | Up to 50m (164.0ft) |
| Wavelength | N/A | 750 nm |
| Supplemental Light | Dual light |
| Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
| Frame Rate-Main Stream | 4 MP (2688 × 1520), max. 30 fps | 8 MP (3840 × 2160), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920 × 1080), max. 30 fps |
| Frame Rate-Third Stream | D1 (720 × 576), max. 30 fps |
| Intelligent |
| Recognition | N/A | Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library |
| Metadata Analyse | N/A | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Exception Detection | N/A | Object removed, Object Left Behind |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | N/A | Support people flow counting and crowd density detection |
| Multi-target Detection | N/A | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Supports Multiple Countries | N/A | North America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greece, Croatia, Ukraine, Lithuania, Georgia; Asia Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen; Kuwait, Oman, Bahrain; Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan |
| Metadata of Multi-target Detection | N/A | Gender (face), Age range (face), Glasses (face), Gender (pedestrian), Mask (pedestrian), Uppper garment color (pedestrian), Lower garment color (pedestrian), Uppper garment style (pedestrian), Lower garment style (pedestrian), Bag style (pedestrian), Uppper garment color (non-montor vehicle), Uppper garment style (non-montor vehicle), Vehicle type (non-montor vehicle), Vehicle color (motor vehicle), Vehicle type (motor vehicle), Vehicle brand (motor vehicle), Plate number (motor vehicle) |
| Image |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Events |
| Basic Detection | Motion detection, Tampering alarm, Audio detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output |
| UMD (Ultra Motion Detection) | N/A | Support |
| Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage |
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Network |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Interface |
| Audio I/O | 2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 3/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet |
| Certification |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| General |
| Power | AC 24 V±25% |
| Power Consumption | Max. 31 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 326 mm × 147 mm × 121 mm (12.8" × 5.8" × 4.8") (L × W × H) |
| Weight | 2.11 kg (4.65 lb.) |
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| RTC | Support |
| Material | Metal + Plastic |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
| Live View |
| Maximum Bitstream | 35 |
| Configurable |
| P/N | Support |
