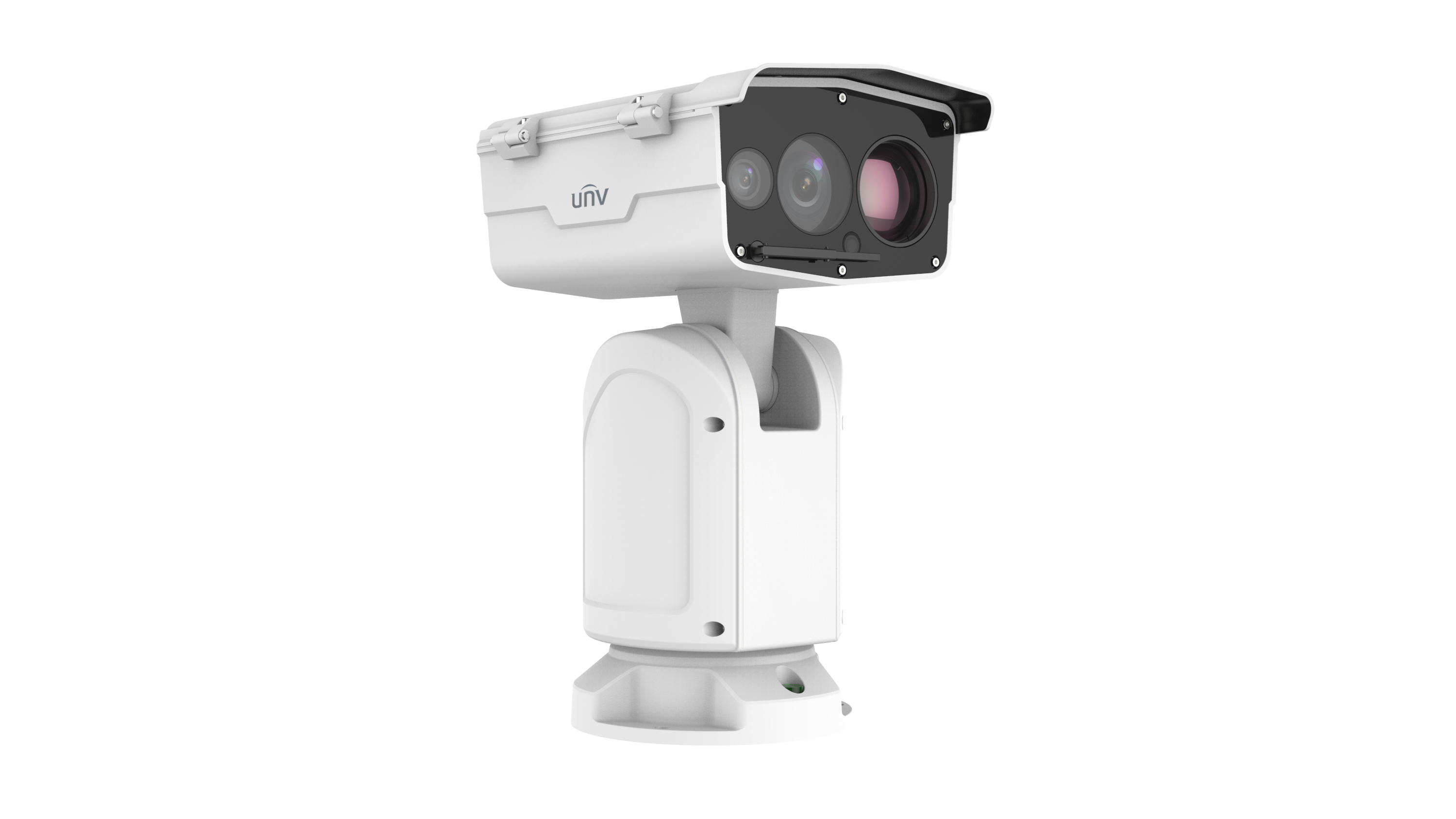

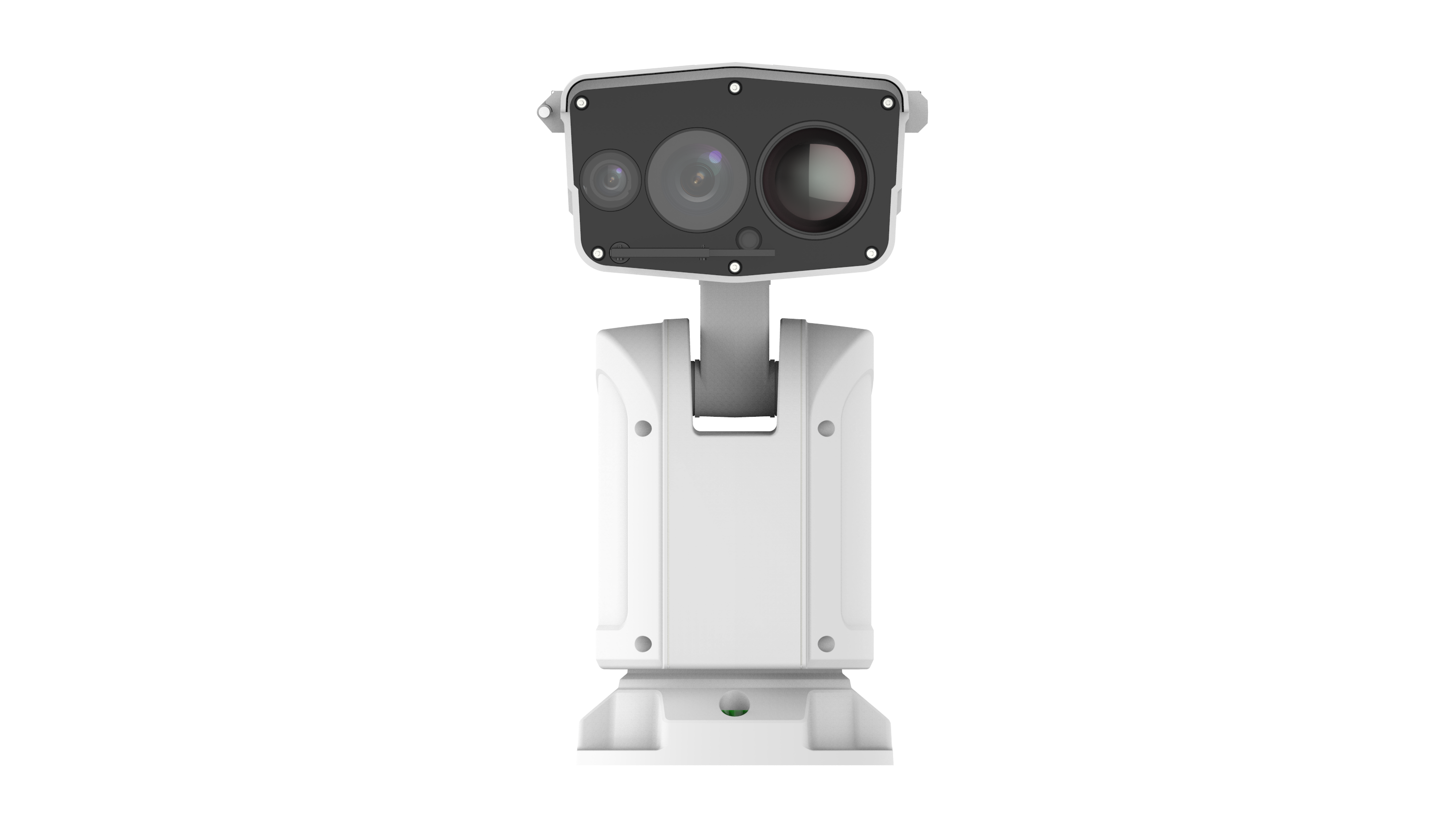

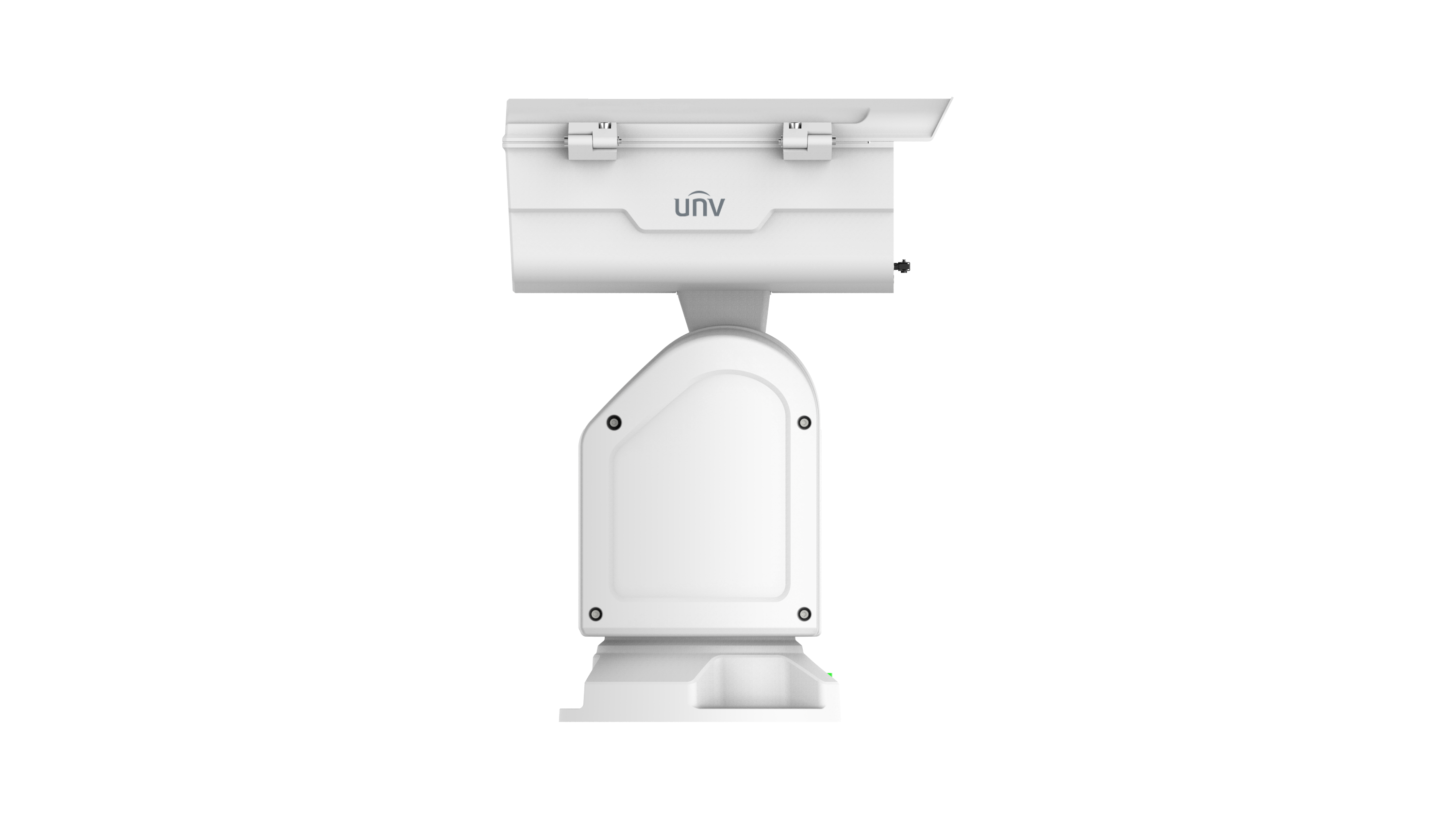

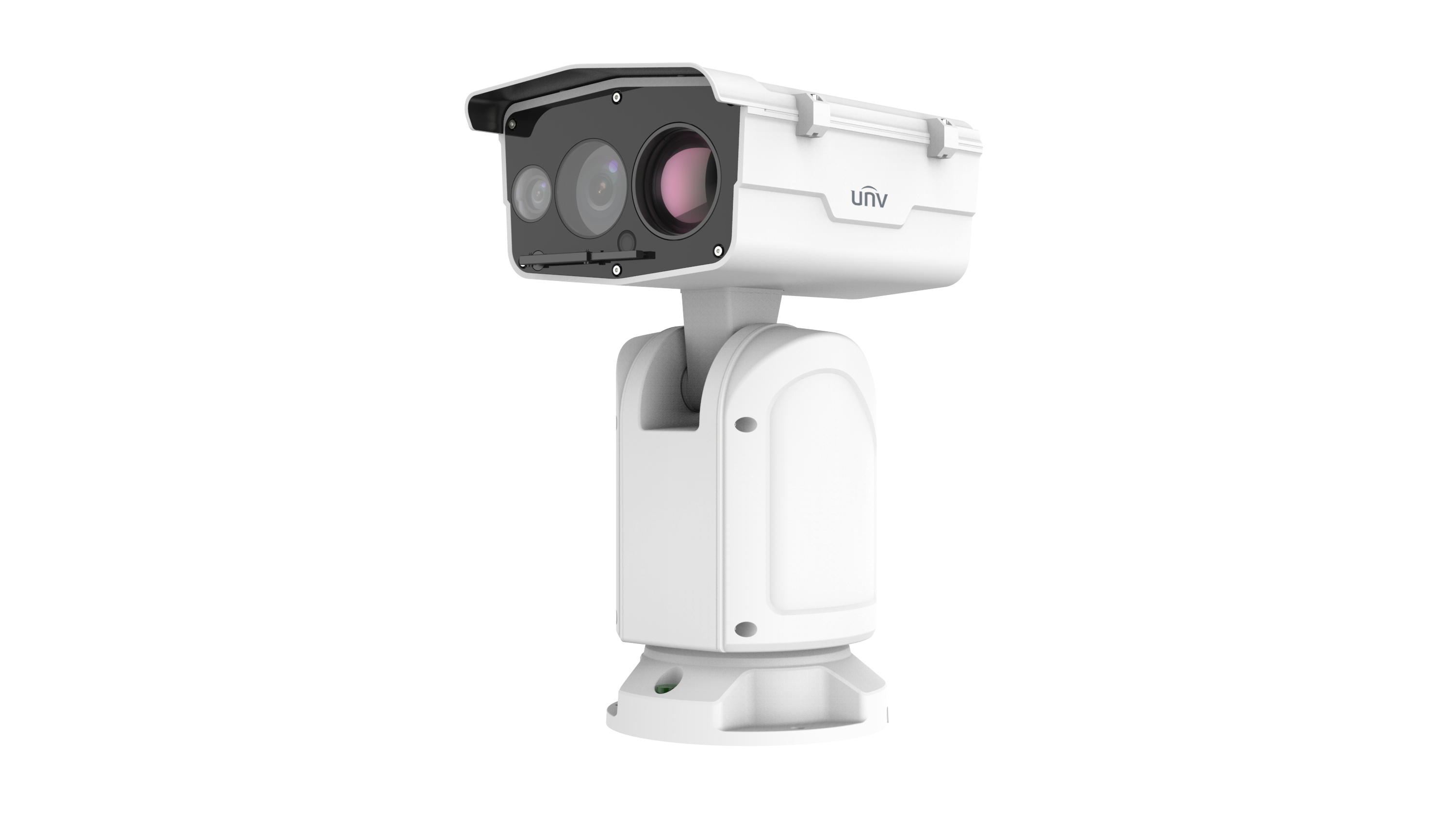

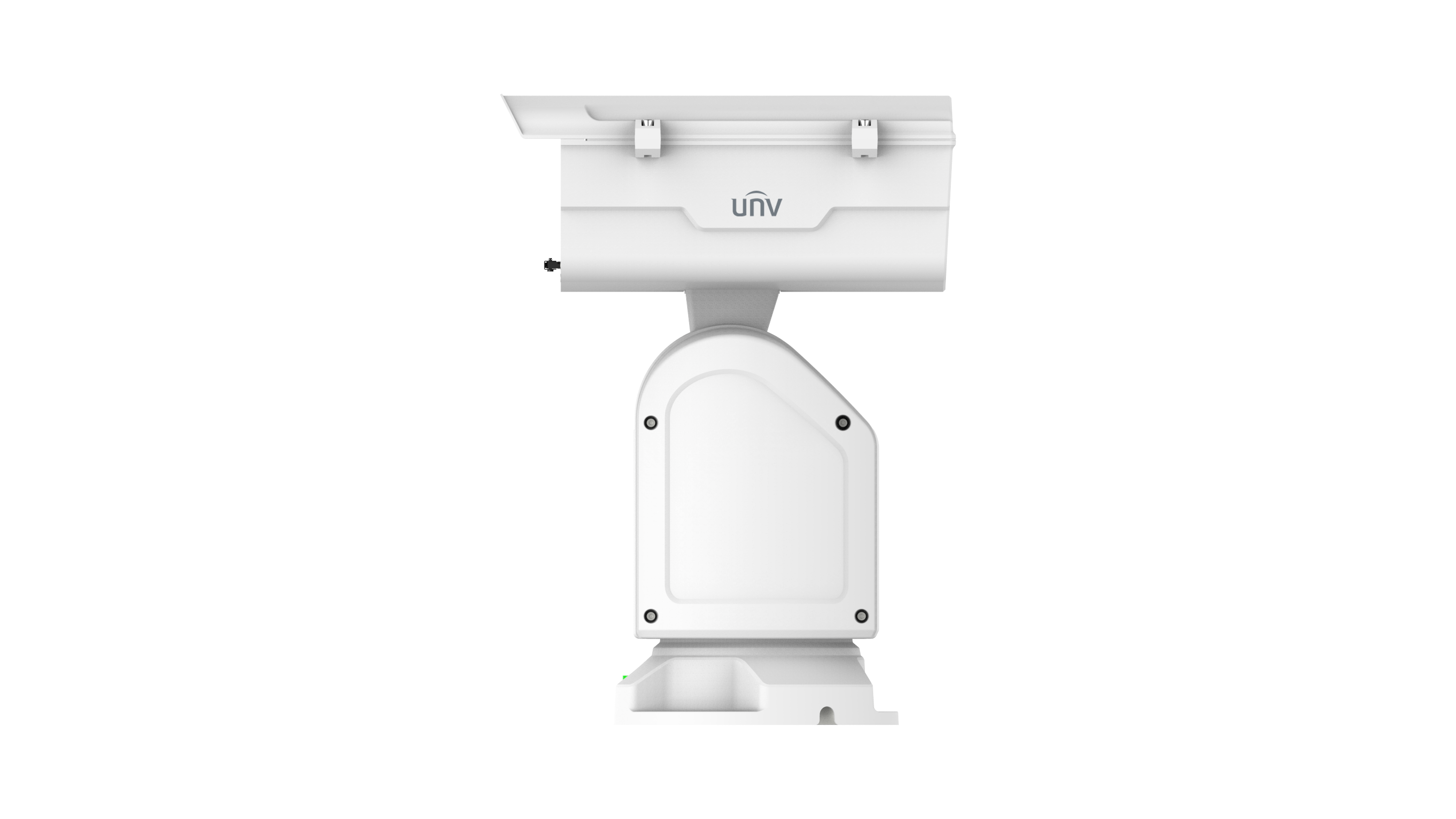

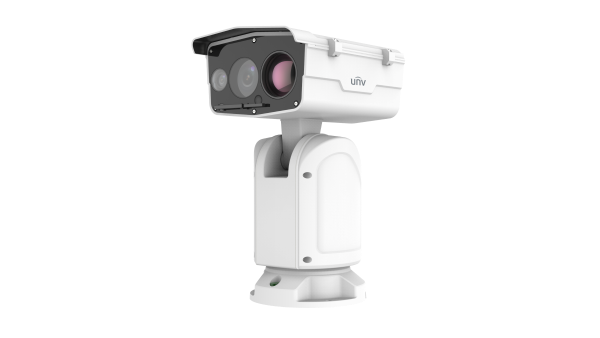

TIC7626EL-GAF75-4X56-VH1
Thermal & Optical Dual-spectrum Positioning System
• Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to various scenes
• Passive infrared thermal imaging, meets the requirement of concealed monitoring and is not affected by bad weather conditions such as fog, smoke, rain, snow, and night
• Thermal channel supports fire detection, and the optical channel can link to the fire position and zoom in for more accurate fire situation judgment
• Thermal & optical dual-spectrum smart intrusion prevention can be enabled simultaneously : cross line, enter area, leave area, intrusion, support smart tracking
• Optical channel supports 4 MP@60 fps, providing smoother motion images
• Optical channel supports gyroscope stabilization for stable pictures
• Optical channel supports heat wave reduction, which can reduce heat wave phenomena and improve image quality
• Vari-focal laser: 800 m (2624.7 ft) distance, proportional to optical zoom of camera module
• Rain-sensing auto wiper, providing clear images in harsh weather
• Supports 1/1 audio in/out, 7/2 alarm in/out, 1 serial port RS485
• Power supply: DC 48 V ± 25%, DC 24 V ± 15%, AC 24 V ± 25%
• IP66
Specification
Download
How to buy
 TIC7626EL-GAF75-4X56-VH1
Channel
Camera
Sensor 1/1.8" CMOS Vanadium oxide uncooled focal plane arrays
Min. Illumination Colour : 0.0003lux(F1.2, AGC ON)
B/W : 0.0001lux(F1.2, AGC ON)
0 Lux with Laser		 N/A
Pixel Size N/A 12 um
NETD ≤ 40 mk@F1.0@25 ℃ ≤ 40 mk@F1.0@25 ℃
Shutter Auto/Manual, 1 to 1/100000 s Auto/Manual, 1 to 1/100000 s
WDR 120 dB 120 dB
S/N >52 dB >52 dB
Lens
Focal Length 6 ~ 336 mm 75mm
Optical Zoom 56X N/A
Iris F1.2 to F4.6 F1.0
Field of View (H) 57.9°~ 1.6° 6.1°
Field of View (V) 34.6°~ 0.9° 4.8°
Field of View (D) 71.2°~ 1.9° 7.2°
DORI
DORI Distance (Detect) 155.5m(510.1ft)~4829.4m(15844.5ft) N/A
DORI Distance (Observe) 62.2m(204.0ft)~1931.8m(6337.8ft) N/A
DORI Distance (Recognize) 31.1m(102.0ft)~965.9m(3168.9ft) N/A
DORI Distance (Identify) 15.5m(51.0ft)~482.9m(1584.4ft) N/A
Illuminator
Illumination Distance (IR) Up to 800m(2624.7ft) N/A
Video
Video Resolution Main Stream: 4MP (2688×1520): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps;		 1080P(1920*1080), Max.30fps
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
Video Bit Rate 128 Kbps to 16 Mbps 128 Kbps to 16 Mbps
U-code Support Support
ROI Support Support
Video Stream Triple streams Triple streams
OSD Up to 8 OSDs Up to 8 OSDs
Privacy Mask 24 areas, up to 8 areas per scene N/A
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 N/A
Digital Noise Reduction 2D/3D DNR 2D/3D DNR
Flip Normal, Flip vertical, Flip horizontal, 180° Normal, Flip vertical, Flip horizontal, 180°
Defog Digital defog, Optical defog N/A
Low Illumination Characteristics ColorHunter with wise-ISP ColorHunter with wise-ISP
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Smoke Detection Support N/A
Auto Tracking Support tracking targets automatically, capturing detailed information at a distance Support tracking targets automatically, capturing detailed information at a distance
Events
Fire Detection N/A Support
Basic Detection Motion detection, Tampering alarm, Audio detection N/A
General Function Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Audio
Audio Compression G.711U, G.711A G.711U, G.711A
Audio Bitrate 128 Kbps 128 Kbps
Two-way Audio Support Support
Sampling Rate 16KHZ 16KHZ
Storage
Edge Storage Micro SD, up to 512 GB Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS) ANR, NAS (NFS)
PTZ
Pan Range 360° (endless) 360° (endless)
Pan Speed 0.02°/s ~ 140°/s 0.02°/s ~ 140°/s
Tilt Range -90° ~ 45° -90° ~ 45°
Tilt Speed 0.02° ~ 50°/s 0.02° ~ 50°/s
Number of Presets 1024 1024
Preset Image Freeze Support Support
Home Position Support Support
Number of Presets (IPC) 1024 1024
3D Location Support Support
Number of Patrol 16 16
Interface
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 7/2 7/2
Serial Port 1 channel RS485 interface 1 channel RS485 interface
Network 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Video Output N/A 1 BNC (for debugging)
General
Power DC 48V±25%、DC 24V±15%、AC 24V±25% DC 48V±25%、DC 24V±15%、AC 24V±25%
Power Consumption Max 135W Max 135W
Power Interface Wires with cold-pressed terminal Wires with cold-pressed terminal
Dimensions 366 x 283 x 509 mm (14.4" x 11.1" x 20.0")(L x W x H) 366 x 283 x 509 mm (14.4" x 11.1" x 20.0")(L x W x H)
Weight 17.98kg(39.64lb) 17.98kg(39.64lb)
Working Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV 6 KV
Reset Button Support Support
RTC Support Support
Certification
Protection IP66 IP66
Live View
OSD Font Vector Vector
OSD Character Number 40 40
