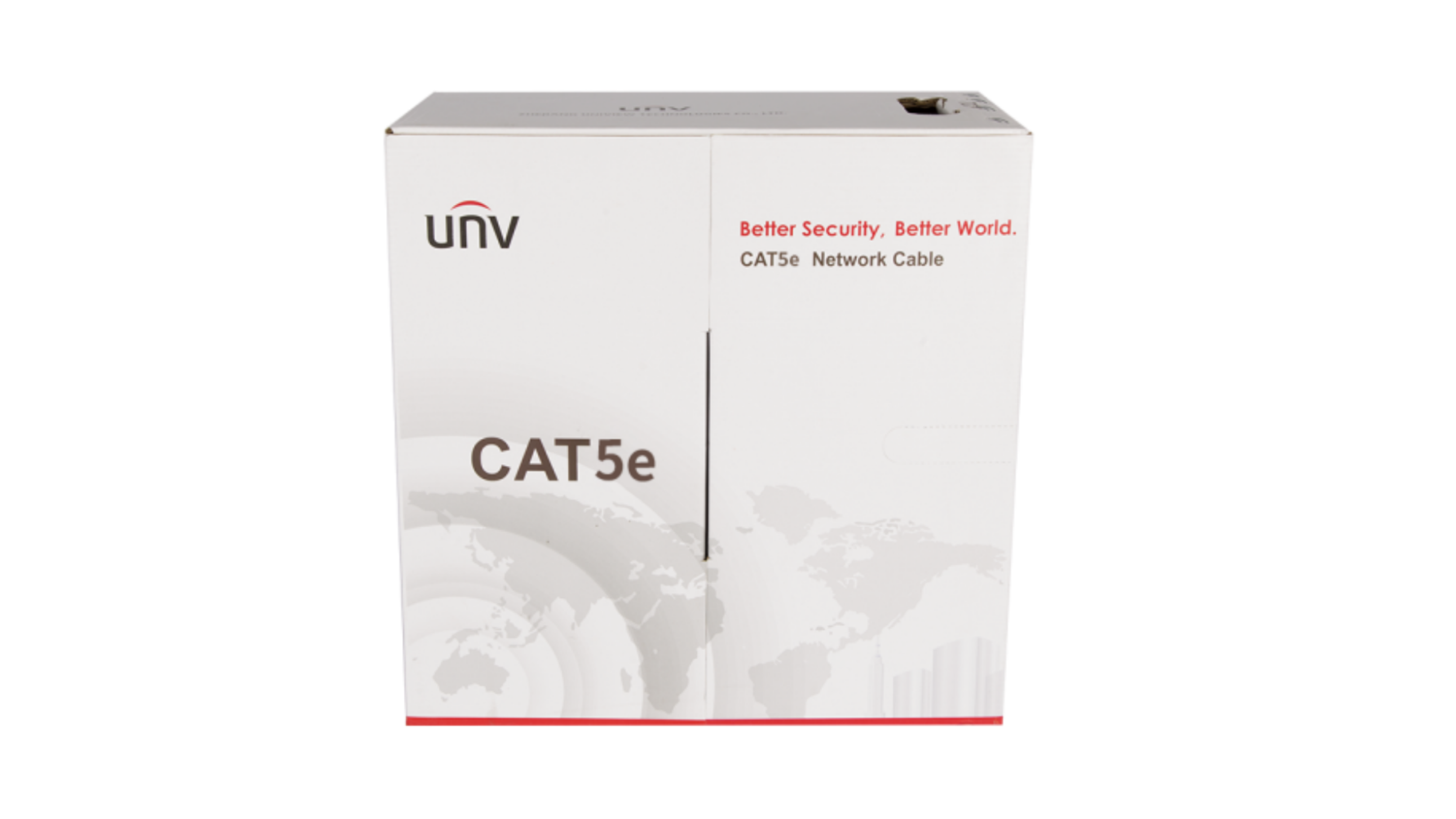

CAB-LC2100B-IN
Cat5e(UTP)-305m-Overseas
Specification
Download
How to buy
 CAB-LC2100B-IN
Cable
Product modelCAB-LC2100B-IN
Packing length305±1 m
Ambient temperature-20℃～60℃
Rip-cordYes
Conductor
Material Solid-Bare Copper
AWG24
Nom.O.D.(mm)0.5±0.005 mm
DC resistance≤95 Ω/km
Insulation
Diameter0.9±0.05 mm
MaterialHDPE
Thickness0.2±0.02 mm
ColorBlue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch≤25 mm
Cable pitch≤140 mm
Sheath
MaterialPVC(complies RoHS/REACH)
Thickness0.55±0.05 mm
External O.D.5.1±0.3 mm
Tensile strength>13.5 Mpa
Color Gray(RAL7046)
Surface Printing
ColorBlack
Letter height3.0±0.3 mm
Print error / Space
1±0.005 m
Case numberYes
Packing
PackingCarton
Once packing dimension350mm*216mm*350mm
Twice packing dimension370mm*460mm*370mm
