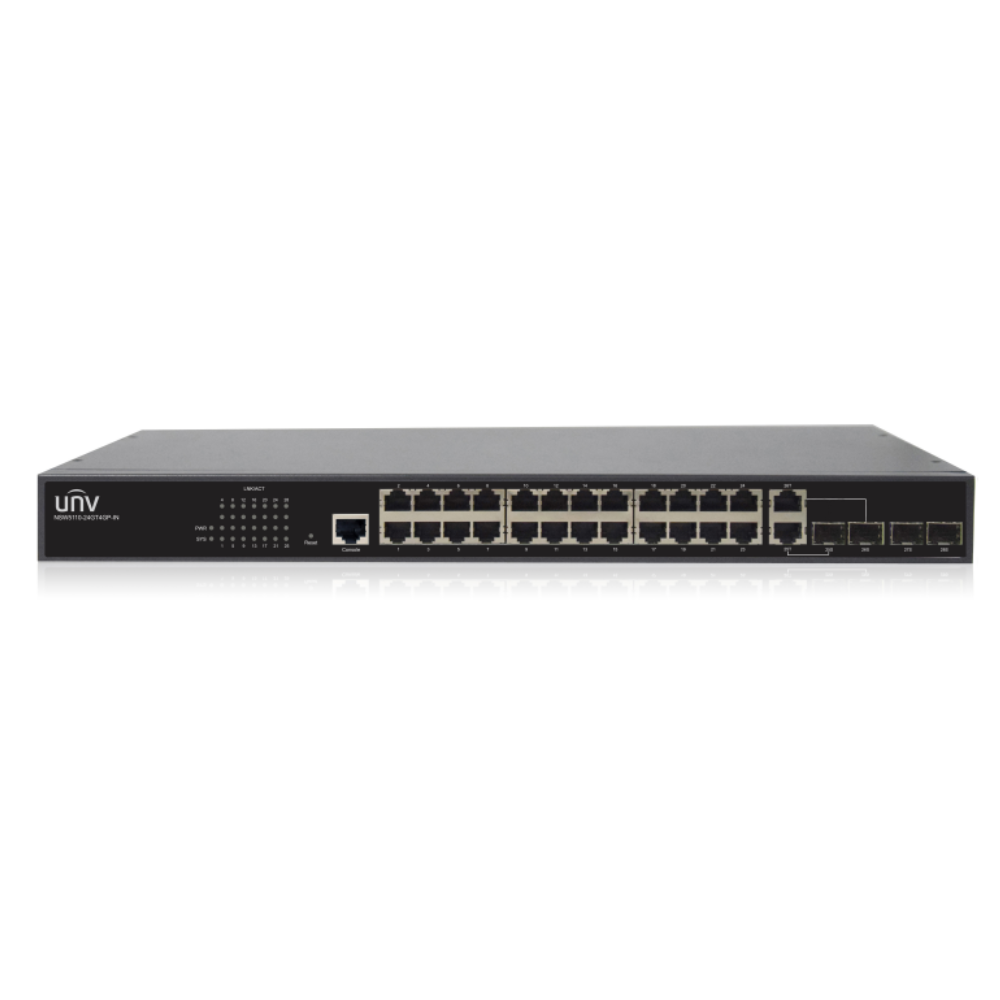

NSW5110-24GT4GP-IN
Ethernet Switch
• Support RJ45 Auto-MDI/MDIX
• Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
• Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
• Supports a abundant lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function
• Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies
Specification
Download
How to buy
 NSW5110-24GT4GP-IN
Software Specification
IEEE802.1d STPSupport IEEE802.1d STP
IEEE802.1w RSTPSupport IEEE802.1w RSTP
MSTPSupport standard 802.1s MSTP,
Support 64 MSTP instances
STP Optional FeaturesSupport port fast,
Support BPDU filter,
Support BPDU guard,
Support hello-time,
Support max age,
Support forward delay,
Support max hops,
Support TC ignore
MSTP Port Optional FeaturesSupport port fast,
Support BPDU filter,
Support BPDU guard,
Support TC guard,
Support TC filter,
Support Auto edge,
Support TC protection,
Support compatibility mode
APSupport Flow-Balance Methoddst-ip Destination IP address; dst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
Support AP member port that is included in each AP.
Storm Control
Support multicast storm control, Support control granularity (percentage and kbps are values for 64-byte datagram) 64 kbps, Support broadcast storm control,
Support unicast storm control
MirroringSupport Many-to-one mirror,
Support Stream-based mirroring,
Support number of mirror groups 4
MAC AddressSupport gentries MAC address numbers 8K,
Support static MAC address numbers 1024,
Support filtering MAC address numbers 1024,
Support check and delete address table,
Support filtering address
,
Support static address and dynamic learning address
LLDPSupport LLDP
ONVIFSupport ONVIF detect,
Support ONVIF server
IGMP SnoopingSupport IGMP snooping groups,
Support IGMP V1, V2 snooping,
Support source IP check,
Support multicast policy and filtering,
Support IGMP fast Leave
Port LimitSupport egress speed limit granularity,
Support Ingress speed limit,
Support egress speed limit
Network ToolSupport Ping, Support traceroute
ACE CapacitiesSupport the input direction is associated with the physical port
QoSSupport QoS hardware queues,
Support determine the exit queue according to 802.1p, DSCP, port,
Support Stream-based 802.1p Re-marking,
Support Stream-based queue maps,
Support SP,
Support WRR,
Support RR,
Support WFQ
Port SecuritySupport Mac filtering time,
Support White-list data,
Support clear Mac address table,
Support Mac address binding,
Support max Mac numbers settings,
Support blacklist data,
Support violation mode
Port IsolationSupport
LOOPBACKSupport
DAISupport software DAI entries
SNMPSupporting version (SNMPV1, V2c, V3)
Web ManagementSupport HTTP access
RMONSupport RMON (1, 2, 3, 9)
System UpgradeSupport system upgrade or page upgrade via TFTP
Save ConfigurationSupport save configuration
Configuration ManagementSupport Import, export, backup configuration, restore factory configuration
Syslog/DebugSupport Syslog/Debug
Security FunctionSupport
Basic CharacteristicsSupport login authentication (password, none)
Password SecuritySupport static password encryption transmission, storage,
Support strong password and password minimum length check
RadiusSupport radius,
Support specify multiple groups of servers IP
Tacacs+
Support specify multiple groups of servers IP
, Support Tacacs+
SSHSupport SSHv2.0
Anti-dos AttackSupport Interrupting land attack packets and illegal TCP packets
Dot1xSupport 802.1X,
Support port base,
Support Mac base,
Support MAB,
Support multiple account switching
Defense Gateway ARP SpoofingSupport defense gateway ARP spoofing
IP Source GuardSupport IP source guard
CPPSupport hardware CPP
ARP Check
Support leverage IP+MAC data binding of IP source guard, Support IP + MAC data binding using DHCP snooping,
Support leverage 1X IP+MAC data binding,
Support trusted ARP
DHCP RelaySupport allow configuration of the number of servers
DHCP SnoopingSupport Option82,
Support trust port configuration,
Support IP, MAC binding table(IP Source Guard),
Support bind to logical ports (including physical interfaces),
Support software binding database capacity,
Support bind to VLAN
DHCP ServerSupport binding table configuration,
Support address pool configuration
TelnetSupport Telnet,
Support maximum number of connections
TFTPSupport TFTP client
FTPSupport FTP server,
Support FTP client
ERPSSupport delete ERPS loop,
Support ERPS loop configuration,
Support ERPS time configuration
Static And Dynamic LACP Link AggregationSupport LACP configuration, Support Load-Balance Method; dst-ip Destination IP addressdst-mac Destination MAC address; src-dst-ip Source and destination IP address; src-dst-mac Source and destination MAC address; src-ip Source IP address; src-mac Source MAC address,
Support link aggregation groups,
Support max link aggregation numbers of each link aggregation group,
Support link aggregation port configuration

Hardware Specification
Ports Type24×1000Mbps ports (RJ45)+2×1000Mbps Fiber(SFP) ports+2G Combo ports
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z,IEEE802.3ab, IEEE802.3x
Switching capacity56 Gbps
Forwarding performance41.66Mpps
Packet Buffer4 M bit
MAC8K
Dimensions (W×D×H)440 × 208 × 44 mm
Weight<3.6 kg
Operating humidity10%～90% (non-condensing)
Mean Time Between Failure (MTBF)> 50000 hours
