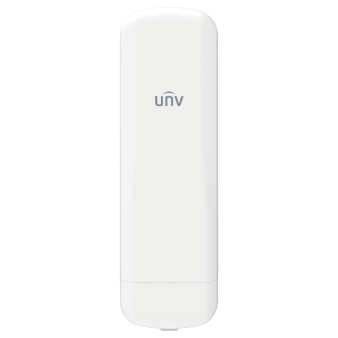

WLN-EB5E-IN | ||||||||
Hardware Specification | ||||||||
Dimensions(mm) | 288x88x45mm | |||||||
Weight(kg) | 0.3kg | |||||||
Installation | Pole mounting Diameter≤75mm | |||||||
Protection Level | IP65 | |||||||
Antenna Gain | 15dBi | |||||||
Beam Width | H:40°,V:15° | |||||||
Power Supply | 24V Passive POE | |||||||
Max Power Consumption(W) | 8W | |||||||
Average Power Consumption(W) | 5W | |||||||
CPU | AR9344 | |||||||
DDR \ Memory | 64MB DDR2, 8MB Flash | |||||||
Physical Interface | 2*10/100Mbps | |||||||
Indicator Light | 1*Power Indicator 1*WLAN Indicator 1*LAN Indicator 3* Signal strength indicator | |||||||
Maximum Transmitted Power | 27dBm | |||||||
Working Temperature | -40℃~65℃ | |||||||
Storage Temperature | -40℃~85℃ | |||||||
Working Humidity | 5%~95%RH Non-condensing | |||||||
Surge | POE/GE: CM 1KV , DM 1KV | |||||||
ESD Protection | Contact 6KV , Air 8KV | |||||||
Wind Survivability | 134km/h | |||||||
Software Specification | ||||||||
Protocol | 802.11a/n | |||||||
Frequency | 5180~5320MHz、5745~5825MHz(China) 5180~5320MHz、5500~5720MHz、5745~5825MHz(United States) 5160~5340MHz、5480~5720MHz、5745~5865MHz(India) 5160~5340MHz、5480~5720MHz、5745~5825MHz(United Arab Emirates) 5745~5805MHz(Indonesia) Supported frequency range:4920~6100MHz(should depend on the local regulation) * The above frequencies need specific version support | |||||||
Operating Mode | AP, Station, WDS AP, WDS Station | |||||||
Security | WPA2-PSK, Hidden SSID, IP/MAC Filtering | |||||||
Network Mode | Bridge/ Router | |||||||
Management | Support Web/AC/SNMP | |||||||
Other | Timed restart,Support VLAN,QoS, Watchdog |
