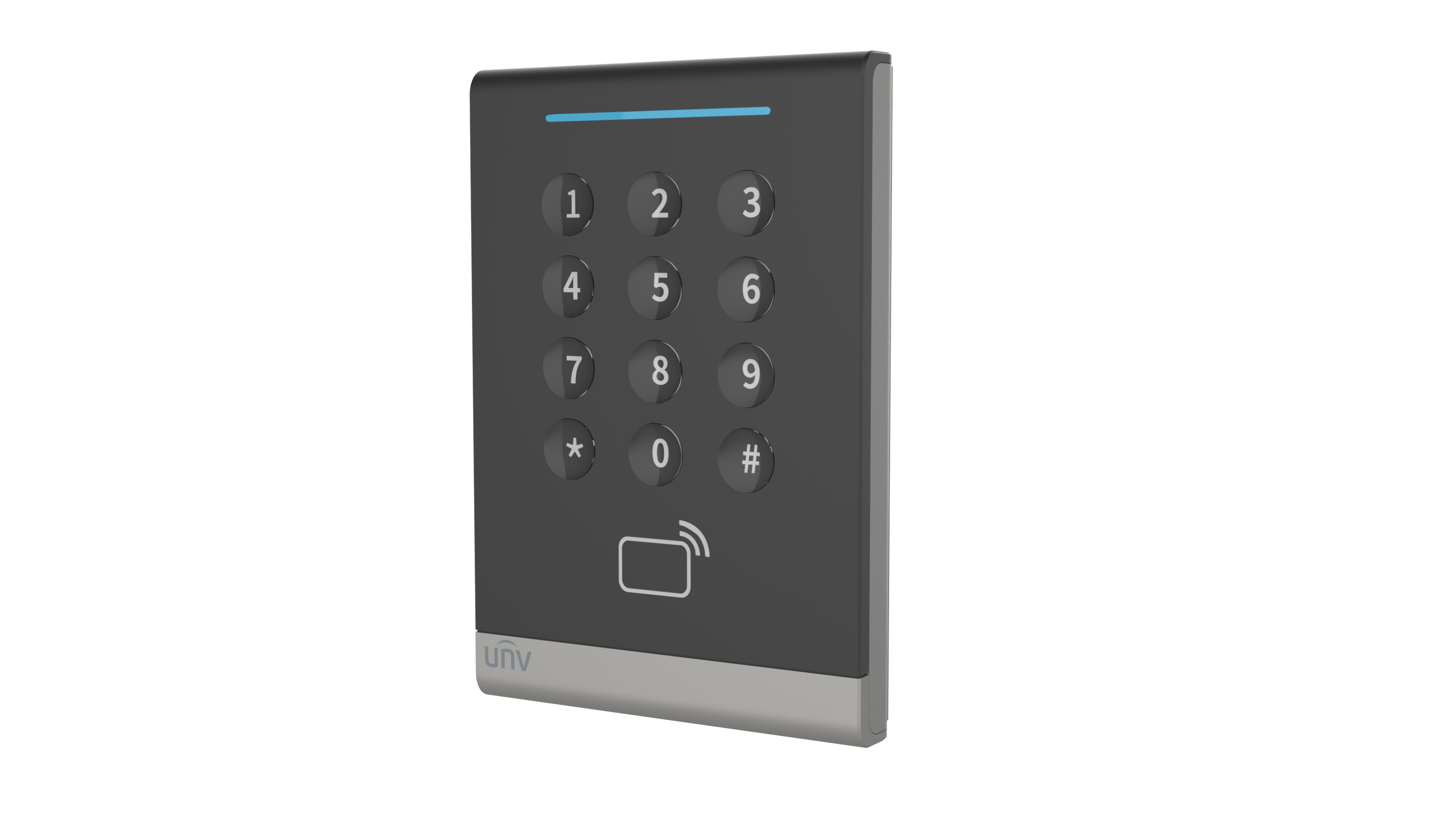

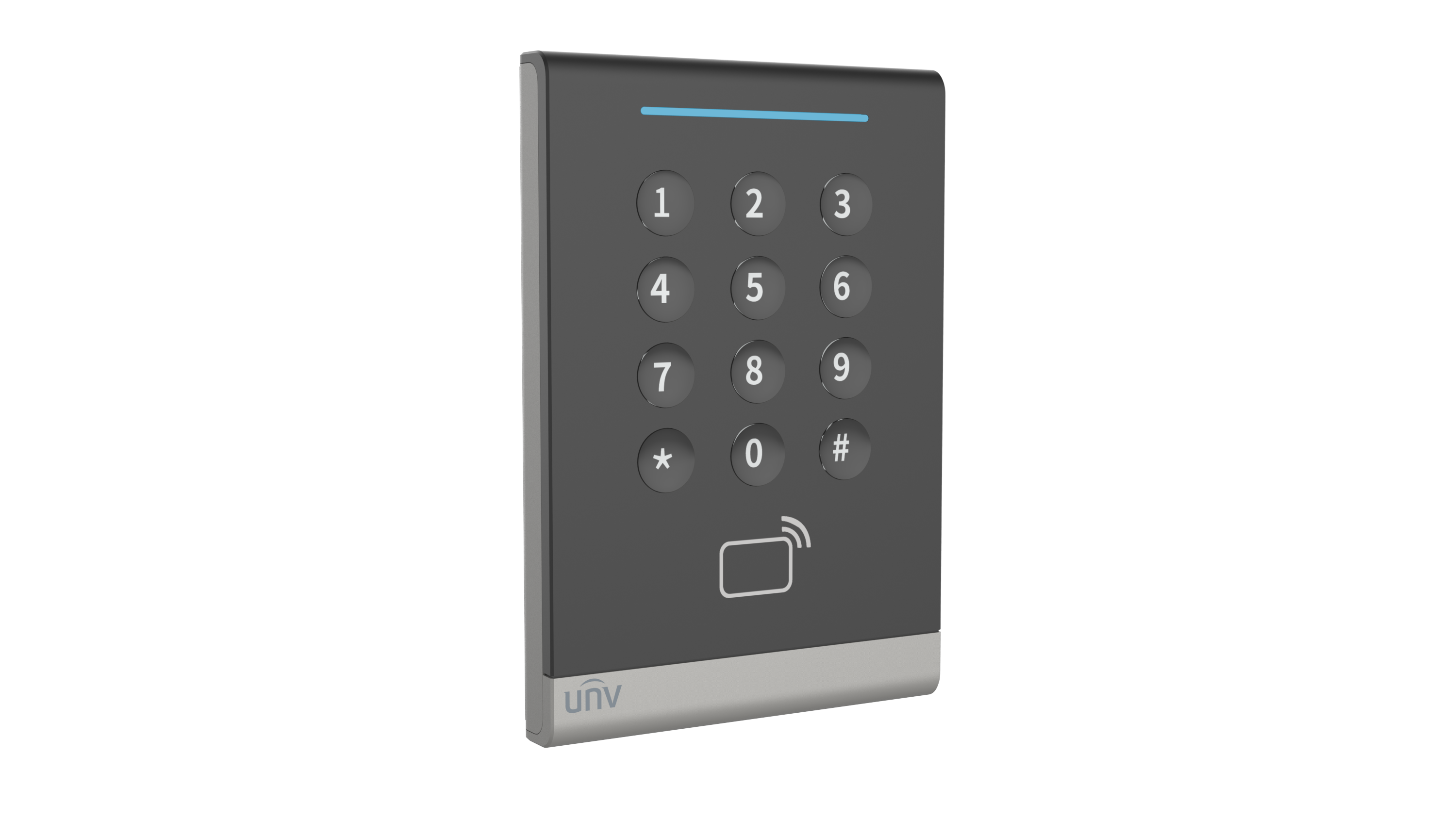

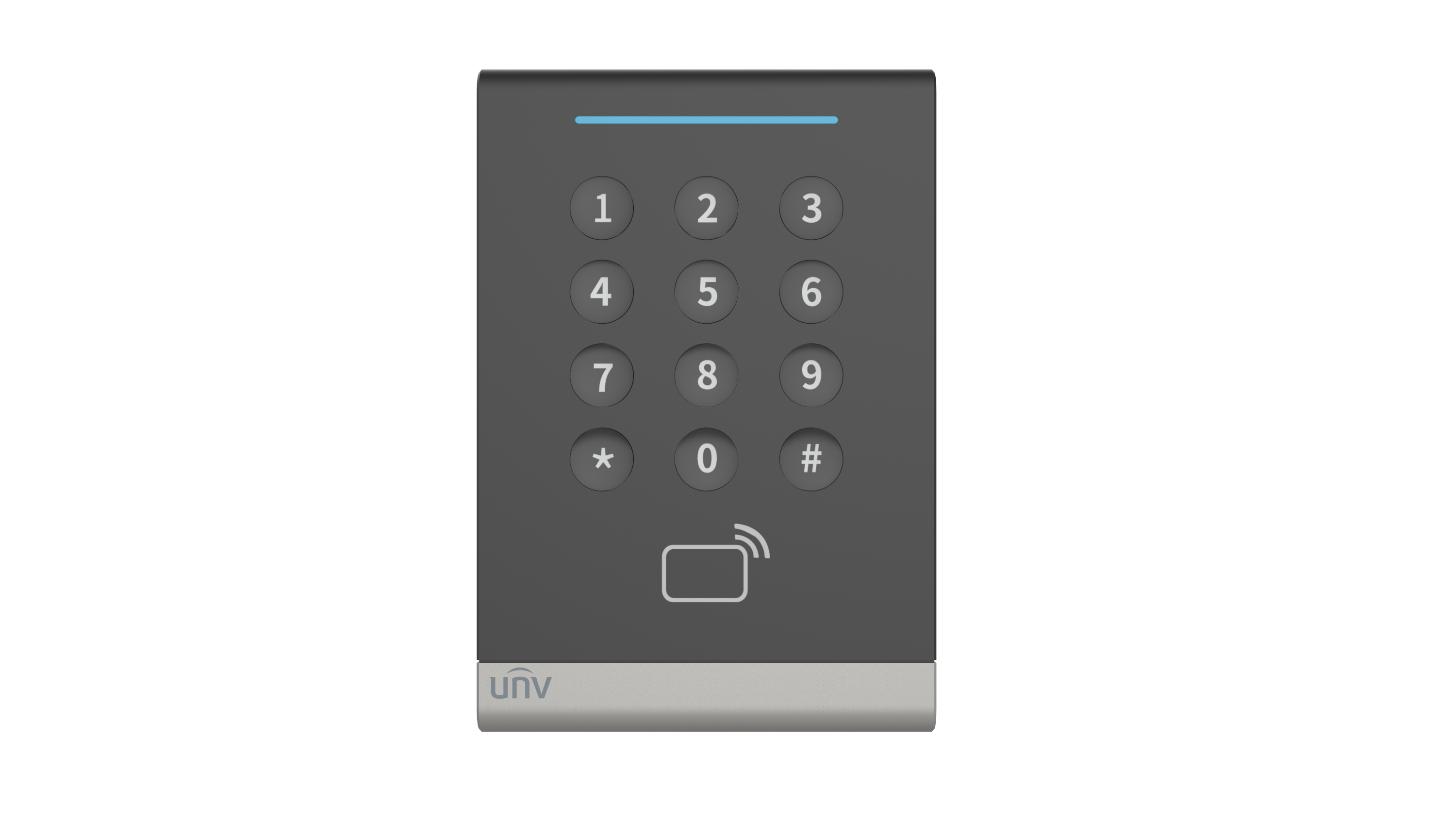

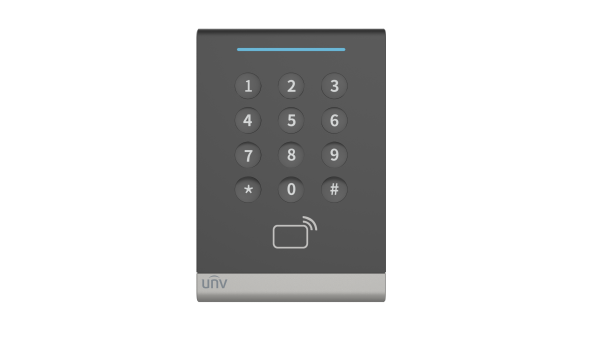

OEC-R3H-MK | ||||||||
Hardware Specification | ||||||||
Operating Frequency | 13.56MHz | |||||||
Interface | Wiegand 26/34, RS485 | |||||||
Material | PC | |||||||
Dimensions (L x W x H) | 129*88*21mm | |||||||
Weight | 145g | |||||||
Mount Method | 115*73mm junction box, 86*86mm junction box | |||||||
Operating Temperature | -30°C to 65°C | |||||||
Operating Humidity | 10% to 90% | |||||||
Storage Temperature | -40°C to 65°C | |||||||
Indicator | Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed | |||||||
Power Consumption | 0.864W | |||||||
Operating Voltage | DC 12V ± 25% | |||||||
Operating Current | 72mA | |||||||
Reading Distance | IC card: max. 5cm | |||||||
Authentication Mode | Card, password | |||||||
Protection Level | IP65 | |||||||
Basic Business | ||||||||
Reading Time | < 1s | |||||||
Card Type | Mifare card |
Class | Date | Title | Language | Type | Download |
Datasheet | 11/28/2024 6:54:59 PM | UNV OEC-R3H-MK Wall Mount Mifare Card Reader with Keypad.pdf | English | Download |
Class | Date | Title | Type | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-R3H-MK_HD_Image_1.png | png | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-R3H-MK_HD_Image_2.png | png | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-R3H-MK_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 8/16/2024 5:16:03 AM | Quick Guide.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 10/22/2024 09:35:35 | OEC-R3H-MK_Dimensions_1.png | Download |
