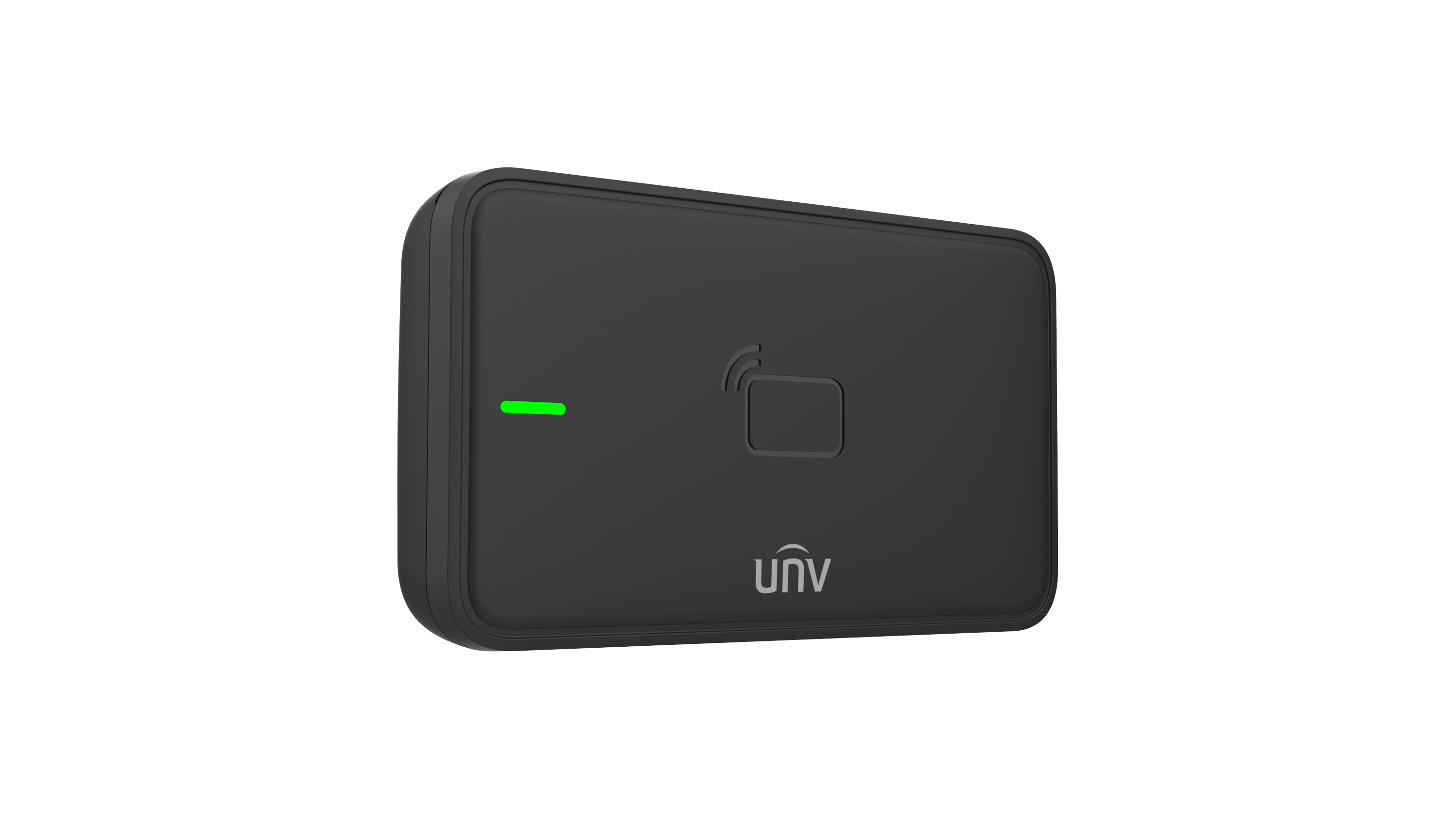

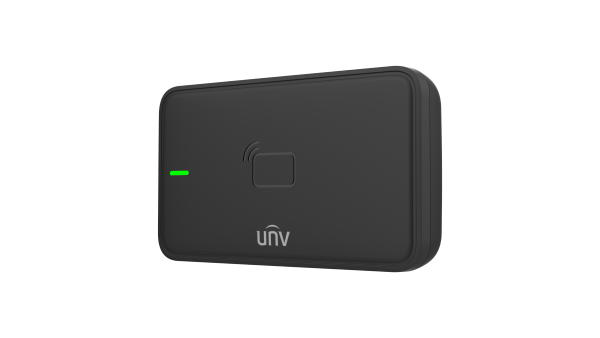

OEC-W2D-M | ||||||||
Hardware Specification | ||||||||
Material | PC | |||||||
Weight | 0.17kg (with package), 0.058kg (net weight) | |||||||
Mount Method | Desktop mount | |||||||
Power Supply | Voltage: DC 5V (powered by USB), current ≤ 116mA | |||||||
Operating Frequency | 13.56MHz | |||||||
Reading Distance | IC card: ≤ 3cm | |||||||
Operating Environment | Temperature: -30°C to 65°C, humidity: 10% to 90% | |||||||
Dimensions (L x W x H) | 110mm*65mm*24mm | |||||||
Interface | USB (plug and play, driver-free) | |||||||
Basic Business | ||||||||
Card Protocol | ISO 14443-A, ISO 14443-B | |||||||
Reading Time | < 1s | |||||||
Data Format | 10-digit decimal card number | |||||||
Specification Index | ||||||||
Application Scenario | Indoors |
Class | Date | Title | Language | Type | Download |
Datasheet | 11/28/2024 6:54:06 PM | UNV OEC-W2D-M Desktop Mifare Card Enroller.pdf | English | Download |
Class | Date | Title | Type | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-W2D-M_HD_Image_1.png | png | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-W2D-M_HD_Image_2.png | png | Download |
HD Image | 10/22/2024 9:35:35 AM | OEC-W2D-M_HD_Image_3.png | png | Download |
Class | Date | Title | Language | Type | Download |
Quick Guide | 8/16/2024 5:15:54 AM | Quick Guide.pdf | English | Download |
Class | Date | Title | Download |
Dimensions | 10/22/2024 9:35:35 AM | OEC-W2D-M_Dimensions_1.png | Download |
