UAC-B112-AF28-DL

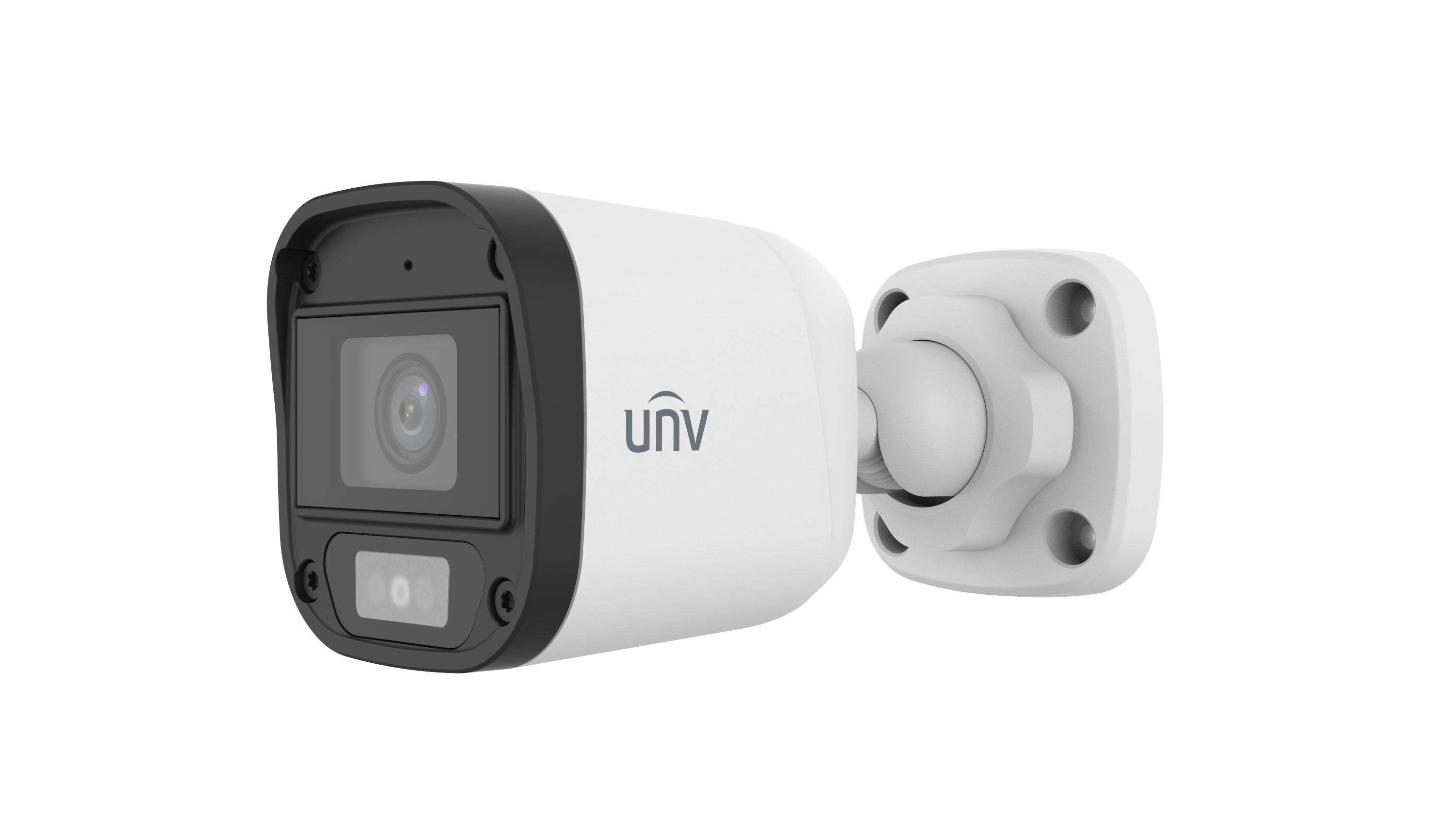

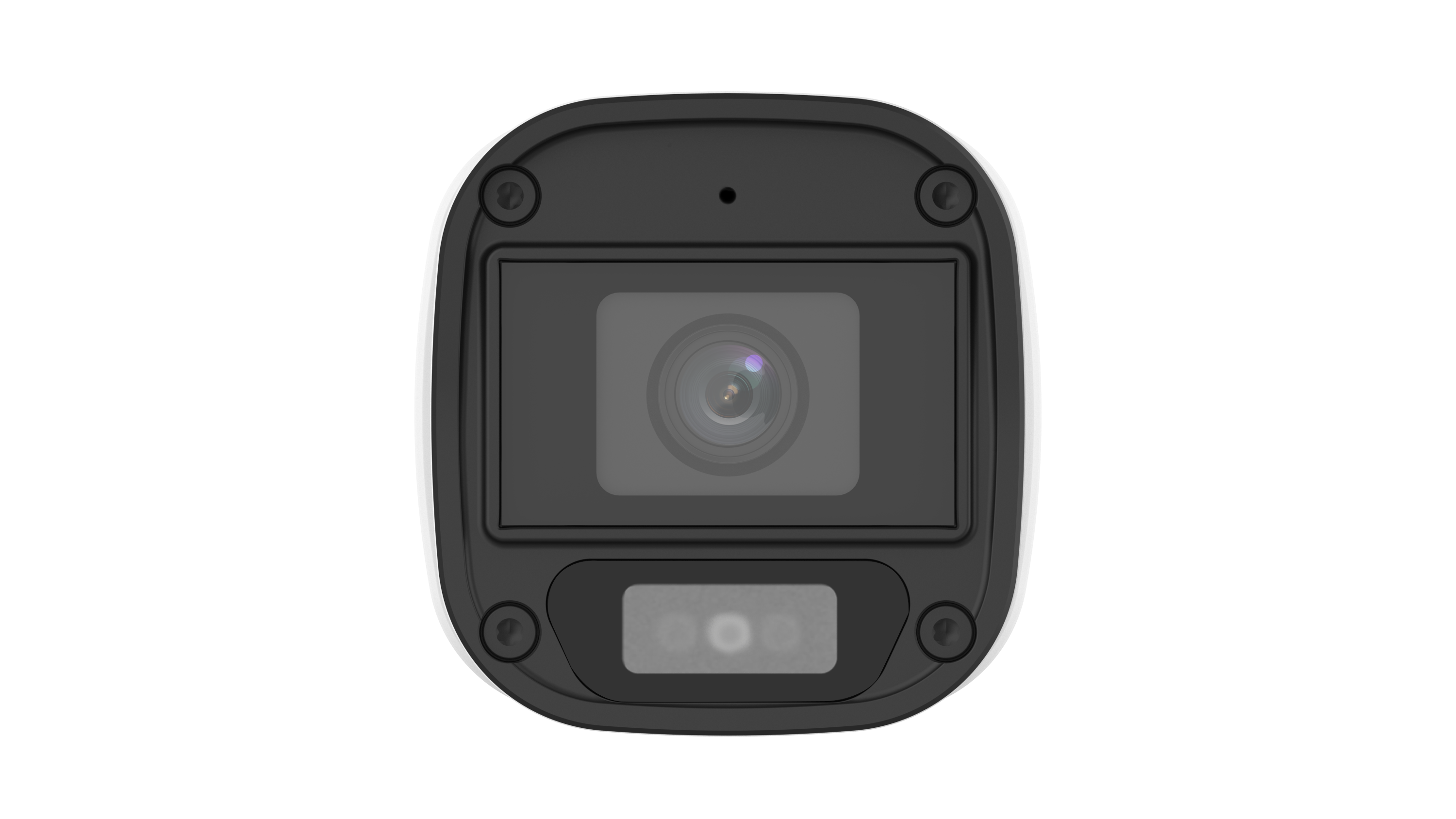

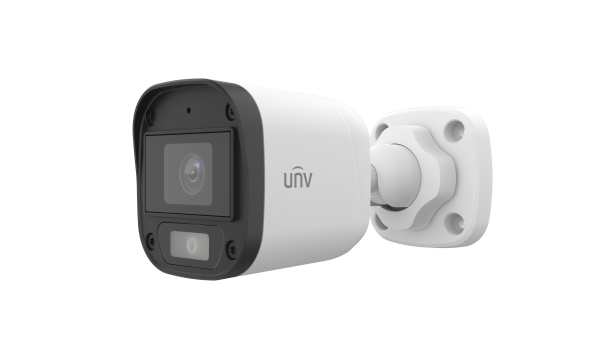

2MP ColorHunter Fixed Dual-light Bullet Analog Camera

• High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Smart Dual Light (only TVI)
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables

Datasheet
HD Image
User Manual
Quick Guide
Dimensions

Class	Date	Title	Language	Type	Download
Datasheet	11/28/2024 8:03:07 PM	UNV UAC-B112-AF28(40)-DL 2MP ColorHunter With Smart Dual Light Bullet Analog Camera.pdf	English	pdf	Download

Class	Date	Title	Type	Download
HD Image	11/1/2024 1:00:07 AM	UAC-B112-AF28-DL_HD_Image_1.png	png	Download
HD Image	11/1/2024 1:00:07 AM	UAC-B112-AF28-DL_HD_Image_2.png	png	Download
HD Image	11/1/2024 1:00:07 AM	UAC-B112-AF28-DL_HD_Image_3.png	png	Download

Class	Date	Title	Language	Type	Download
User Manual	2024/11/7 20:53:48	UNV-Analog Cameras User Manual.pdf	English	pdf	Download

Class	Date	Title	Language	Type	Download
Quick Guide	8/21/2024 5:21:00 AM	Quick Guide.pdf	English	pdf	Download

Class	Date	Title	Download
Dimensions	11/1/2024 1:00:07 AM	UAC-B112-AF28-DL_Dimensions_1.png	Download

	UAC-B112-AF28-DL	UAC-B112-AF40-DL
Sensor
Pixel	2MP
Sensor Size	1/3.0" CMOS
Min. Illumination	0.01 lux (F2.0, AGC ON) 0 lux (Illuminator ON)
Lens
Focus	2.8 mm	4.0 mm
Lens Mount	M12
Angle of View (H)	91.5°	75.1°
Angle of View (V)	51.2°	41.8°
Angle of View (D)	106.3°	86.2°
Illuminator
Illuminator Number	Two IR illuminators; One white-light illuminator
Illumination Distance	IR: 20m (65.6 ft) White light: 20m (65.6 ft)
Lifetime	≥60000 hours
Video
Resolution	1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Frame Rate	TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Shutter Time	PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s
Exposure Mode	Four modes: Global(default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital Noise Reduction	2D/3D
White Balance	Two modes: Auto (default), Manual
WDR	DWDR
Light Mode	Dual light (default) , Infared, White light
Flip	Supports 180°horizontal flip, 180°vertical flip
Digital Defog	N/A
Audio
Built-in Mic	Support
Camera Audio	TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface	5.5 mm Power Interface
Video Output	BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature	-30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)
Humidity	≤95% RH (non-condensing)
Surge Protection	4KV for power, 4KV for video output interfaces
General
Power	DC12V±25%
Power Consumption	MAX 2.8W
Mount	Corner Mount, Pole Mount
Dimensions	140mm61mm65mm (LWH)
Material	Plastic
Weight	142g (0.31lb)
OSD Menu Language	11 Languages English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
