UAC-B115-F28 | UAC-B115-F40 | |||||||
Sensor | ||||||||
Pixel | 5 MP | |||||||
Sensor Size | 1/2.7" CMOS | |||||||
Min. Illumination | 0.02 lux (F2.0, AGC ON) 0 lux (IR on) | |||||||
Lens | ||||||||
Focus | 2.8 mm | 4.0 mm | ||||||
Lens Mount | M12 | |||||||
Angle of View (H) | 102.2° | 82.9° | ||||||
Angle of View (V) | 53.9° | 46.1° | ||||||
Angle of View (D) | 124.8° | 100.0° | ||||||
Illuminator | ||||||||
Illuminator Number | One IR illuminator | |||||||
Illumination Distance | 20m | |||||||
Lifetime | ≥60000 hours | |||||||
Video | ||||||||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) | |||||||
Frame Rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | |||||||
Shutter Time | PAL: 1/25s-1/50000s, NTSC: 1/30s-1/50000s | |||||||
Image | ||||||||
Exposure Mode | Four modes: Global(default), BLC, HLC, DWDR | |||||||
Day/Night | Three modes: Auto (default), Day, Night | |||||||
Digital Noise Reduction | 2D | |||||||
White Balance | Two modes: Auto (default), Manual | |||||||
WDR | DWDR | |||||||
Smart IR | Support | |||||||
Flip | Supports 180°horizontal flip, 180°vertical flip | |||||||
Interface | ||||||||
Power Interface | 5.5 mm Power Interface | |||||||
Video Output | BNC, supports TVI/AHD/CVI/CVBS | |||||||
Operating Environment | ||||||||
Temperature | -30°C to 60°C (-22°F to 140°F) | |||||||
Humidity | ≤95% RH (non-condensing) | |||||||
Surge Protection | 4KV for power, 4KV for video output interfaces | |||||||
General | ||||||||
Power | DC12V±25% | |||||||
Power Consumption | MAX 3.6W | |||||||

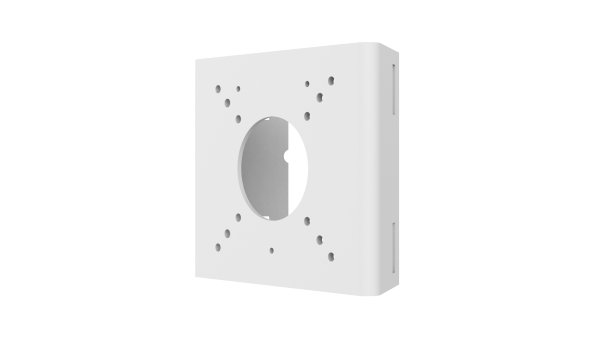

Mount | Corner Mount, Pole Mount | |||||||
Dimensions | 142mm*63mm*65mm (L*W*H) | |||||||
Material | Plastic | |||||||
Weight | 135g(0.30lb) | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B) | |||||||
Safety | CE-LVD (EN 62368-1) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
Protection | IP67 (IEC 60529) |
