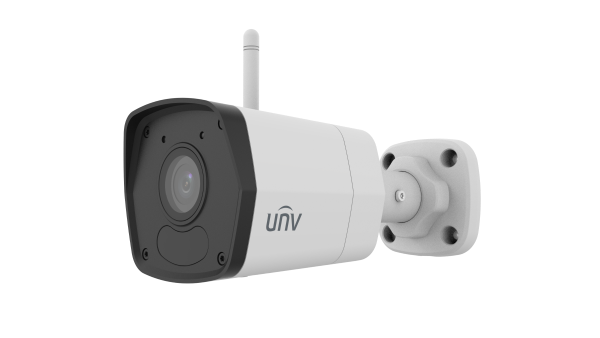

IPC2122LB-AF28WK-G | IPC2122LB-AF40WK-G | KIT/NVR301-04LS3-W/4*IPC2122LB-AF40WK-G | ||||||||||
Audio | ||||||||||||
Sampling Rate | 8 KHz | |||||||||||
Storage | ||||||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||||||
Network Storage | ANR, NAS (NFS) | |||||||||||
Network | ||||||||||||
Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | |||||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||||
User/Host | Up to 32 users, 2 user levels: administrator and common user | |||||||||||
Client | UNV-Link, UNV-Link Pro, EZStation | |||||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||||
Wi-Fi | ||||||||||||
Wireless Standards | IEEE802.11b/g/n | |||||||||||
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||||||||
Channel Bandwidth | 20 MHz Support | |||||||||||
Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | |||||||||||
Wi-Fi Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||||||||
Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps | |||||||||||
Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) | |||||||||||
Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | |||||||||||
Interface | ||||||||||||
Audio I/O | N/A | |||||||||||
Alarm I/O | N/A | |||||||||||
Serial Port | N/A | |||||||||||
Built-in Mic | Support | |||||||||||
Built-in Speaker | N/A | |||||||||||
WIFI | Support | |||||||||||
Network | 1 x RJ45 10M/100M Base-TX Ethernet | |||||||||||
Video Output | N/A | |||||||||||
Certification | ||||||||||||
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) | |||||||||||
RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | |||||||||||
Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||||||
Protection | IP67 (IEC 60529) | |||||||||||
General | ||||||||||||
Power | DC 12V±25% | DC 12V±25% | DC 12V±25% Power consumption: Max 4.0W | |||||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||||||
Dimensions | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) (L x W x H) | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) (L x W x H) | 172 × 76 ×72 mm (6.8” × 3” × 2.8”) | |||||||||
Weight | 0.25 kg (0.55 lb) | |||||||||||
Material | Metal + Plastic | |||||||||||
Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||||||
Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||||||
Surge Protection | 4KV | |||||||||||
Reset Button | Support | |||||||||||
Web Client Language | 4 Languages English, Russian, Spanish, Vietnamese |
