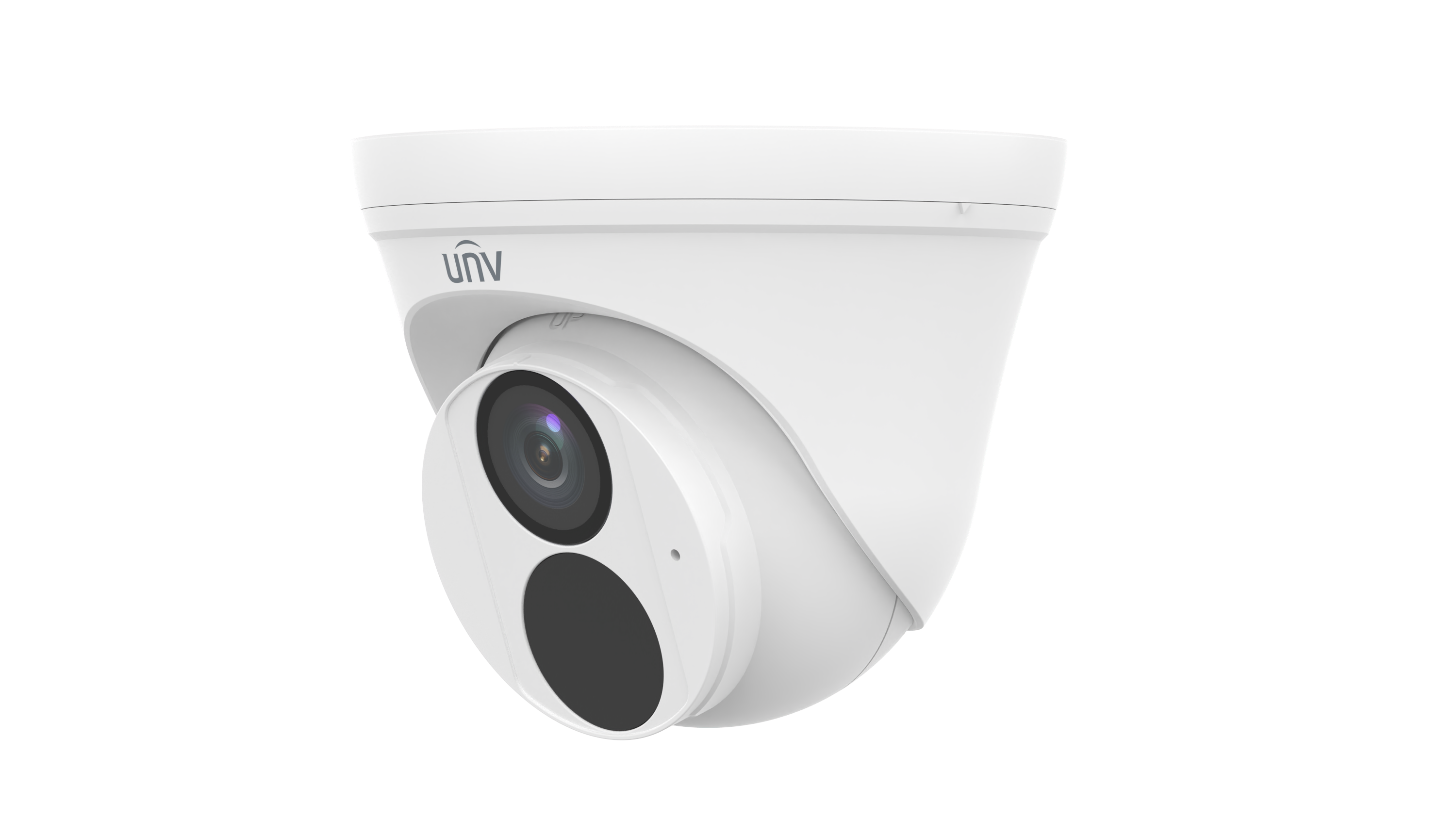

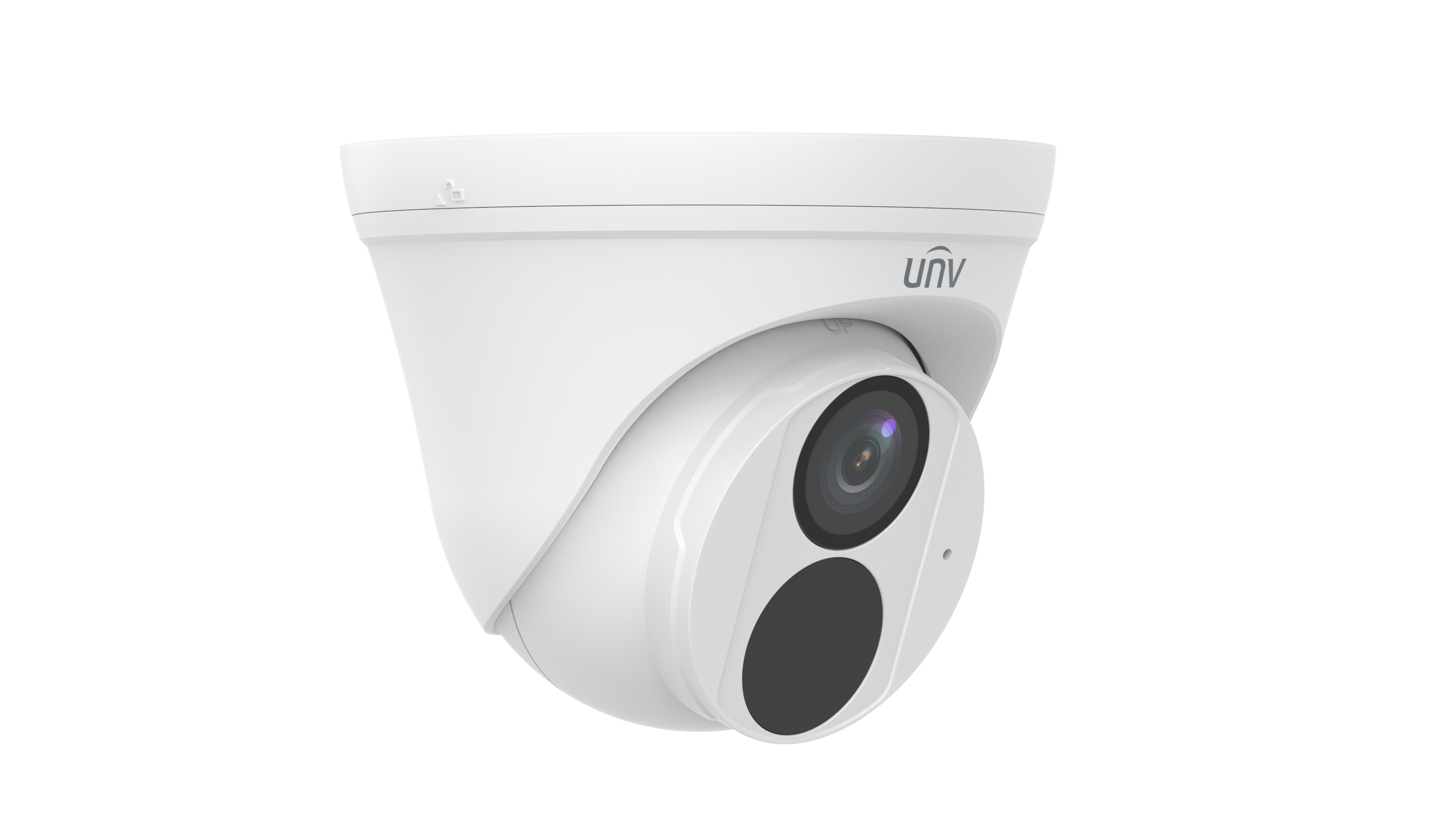

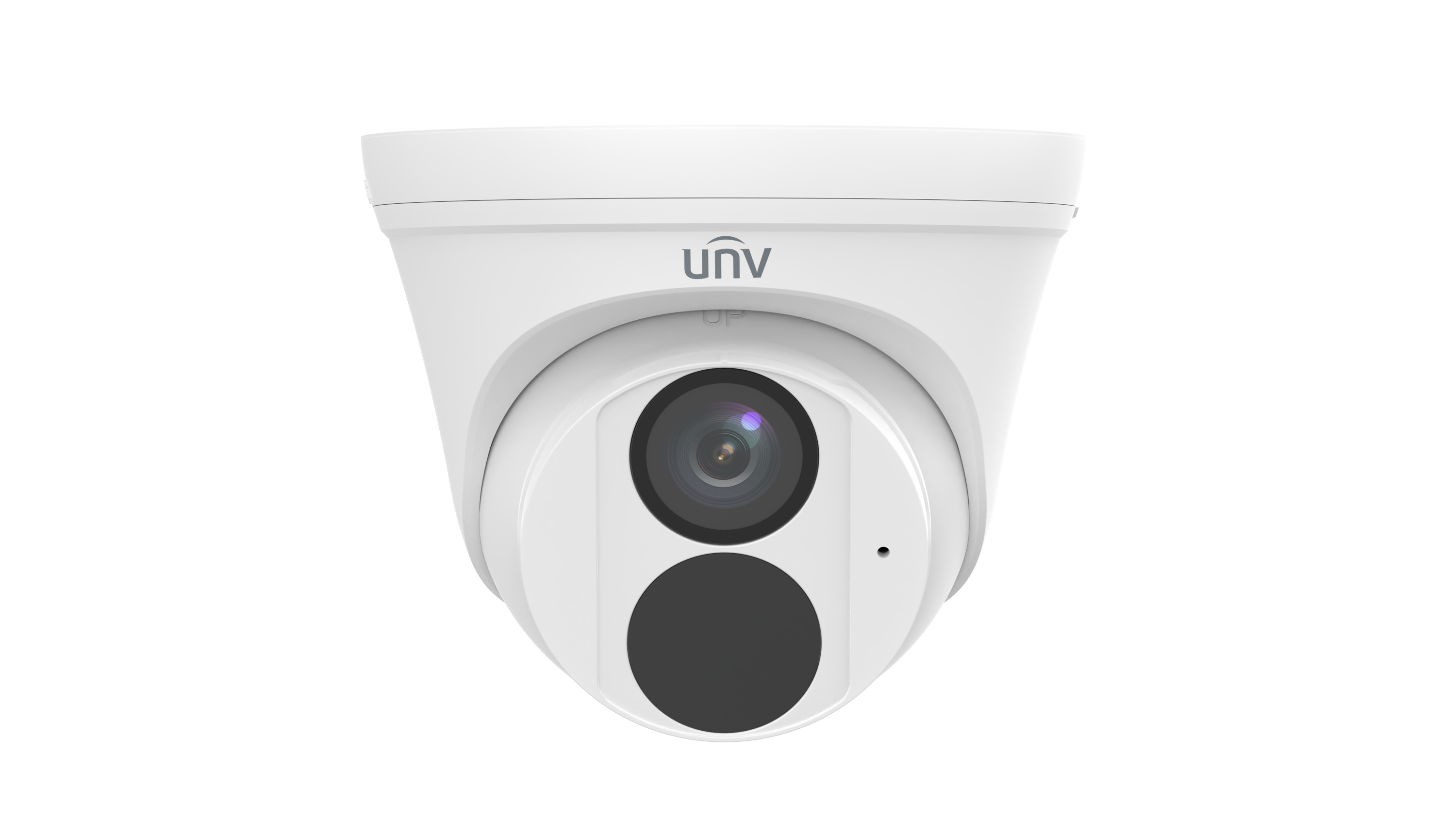

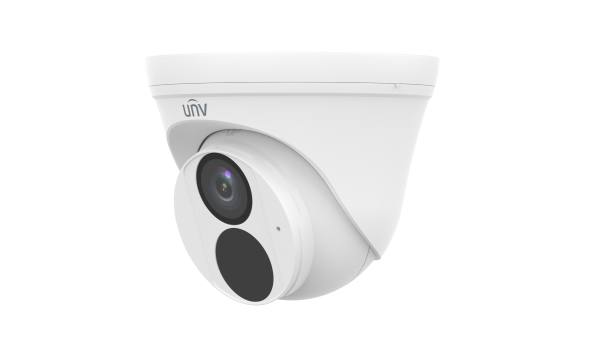

| IPC3612LB-AF28K-A2 |
Camera |
Max Resolution | 2 MP |
Sensor | 1/3.0" CMOS |
Min. Illumination | Colour:0.01 lux (F2.0, AGC ON) 0 lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
S/N | >52 dB |
WDR | DWDR |
Lens |
Focal Length | 2.8 mm |
Iris Type | Fixed |
Iris | F2.0 |
Field of View (H) | 99.5° |
Field of View (V) | 56.5° |
Field of View (D) | 114.4° |
Lens Type | Fixed |
DORI |
DORI Distance (Lens) | 2.8 mm |
DORI Distance (Detect) | 46.7m (153.1ft) |
DORI Distance (Observe) | 18.7m (61.2ft) |
DORI Distance (Recognize) | 9.3m (30.6ft) |
DORI Distance (Identify) | 4.7m (15.3ft) |
Illuminator |
Supplemental Light | IR |
Illumination Distance (IR) | 30 m (98.4 ft) |
Wavelength | 850 nm |
IR On/Off Control | Auto/Manual |
Video |
Video Compression | Ultra 265, H.265, H.264 |
H.264 Code Profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps |
Video Bit Rate | 128 Kbps to 6144 Kbps |
U-code | Support |
OSD | Up to 4 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Support |
Video Stream | Dual Streams |
Image |
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area White Balance |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Support |
Flip | Normal, Flip Vertical, Flip Horizontal, 180° |
Dewarping | N/A |
HLC | Support |
BLC | Support |
Defog | Digital Defog |
Image Stabilization | N/A |
Events |
Basic Detection | Human Body Detection 2.0, Motion Detection, Audio Detection |
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication |
Audio |
Audio Compression | G.711U,G.711A |
Audio Bitrate | 64 Kbps |
Two-way Audio | N/A |
Suppression | Support |
Sampling Rate | 8 kHz |
Storage |
Edge Storage | Micro SD, up to 512 GB |
Network |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS |
Compatible Integration | ONVIF (Profile S, Profile T) , API, SDK |
User/Host | Up to 32 users, 2 user levels: administrator and common user |
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
Client | UNV-Link, UNV-Link Pro, EZStation |
Web Browser | Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+, Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
Interface |
Audio I/O | N/A |
Alarm I/O | N/A |
Serial Port | N/A |
Built-in Mic | Support |
Built-in Speaker | N/A |
WIFI | N/A |
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Video Output | N/A |
Certification |
EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
Safety | CE LVD (EN 62368-1) |
Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU) |
Protection | IP67 (IEC 60529)
|
General |
Power | DC 12V±25%, PoE (IEEE 802.3af) |
Power Consumption | Max 3.9 W |
Power Interface | Ø5.5 mm coaxial power plug |
Dimensions | Ø118 x 95mm (Ø4.6” x 3.8”) (Ø x H) |
Weight | 0.25 kg (0.55 lb) |
Material | Metal + Plastic |
Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) |
Surge Protection | 4 KV |
Reset Button | N/A |
Web Client Language | 4 Languages: English, Russian, Spanish, Vietnamese |
