IPC354SB-ADNF28(40)K-I0

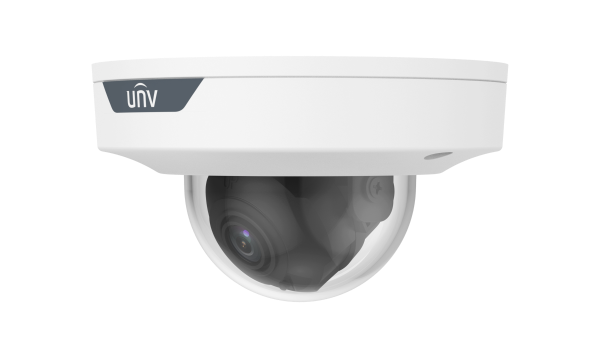

4MP LightHunter Fixed IR Dome Network Camera
• High quality image with 4MP, 1/2.7"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98 ft) IR distance
• Supports 512 G Micro SD card
• Cable-free
• Support PoE power supply
Specification
Accessories
Download
How to buy
 IPC354SB-ADNF28K-I0IPC354SB-ADNF40K-I0
Camera
Max Resolution4 MP
Sensor1/2.7" CMOS
Min. IlluminationColour:0.003 lux (F1.6, AGC ON)
0 lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment AnglePan: 3°~360°, Tilt: 0° ~ 68°, Rotate:3°~360°
WDR120 dB
S/N>52 dB
Lens
Focal Length2.8 mm4.0 mm
IrisF1.6
Field of View (H)101.1°83.5°
Field of View (V)55.3°43.0°
Field of View (D)111.1°99.7°
Lens TypeFixed
Iris TypeFixed
DORI
DORI Distance (Lens)2.8mm4.0mm
DORI Distance (Detect)63.0m(206.7ft)90.0m(295.2ft)
DORI Distance (Observe)25.2m(82.7ft)36.0m(118.1ft)
DORI Distance (Recognize)12.6m(41.3ft)18.0m(59.1ft)
DORI Distance (Identify)6.3m(20.7ft)9.0m(29.5ft)
Illuminator
Illumination Distance (IR)30 m (98.4 ft)
Wavelength850 nm
Light On/Off ControlAuto/Manual
Supplemental LightIR
Video
H.264 Code ProfileBaseline profile, Main profile, High profile
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
ROISupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
Video StreamTriple Streams
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
DewarpingN/A
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People CountingSupport People Flow Counting and Crowd Density Monitoring
Statistical AnalysisN/A
Events
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR, NAS (NFS)
Network
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientUNV-Link, UNV-Link Pro, EZStation
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O1/1
Serial PortN/A
Built-in MicSupport
Built-in SpeakerN/A
WIFIN/A
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video OutputN/A
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax 4.5W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ109 x 62mm (Ø4.3” x 2.4”) (Ø x H)
Weight0.22 kg (0.49 lb)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
MaterialMetal + Plastic
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
