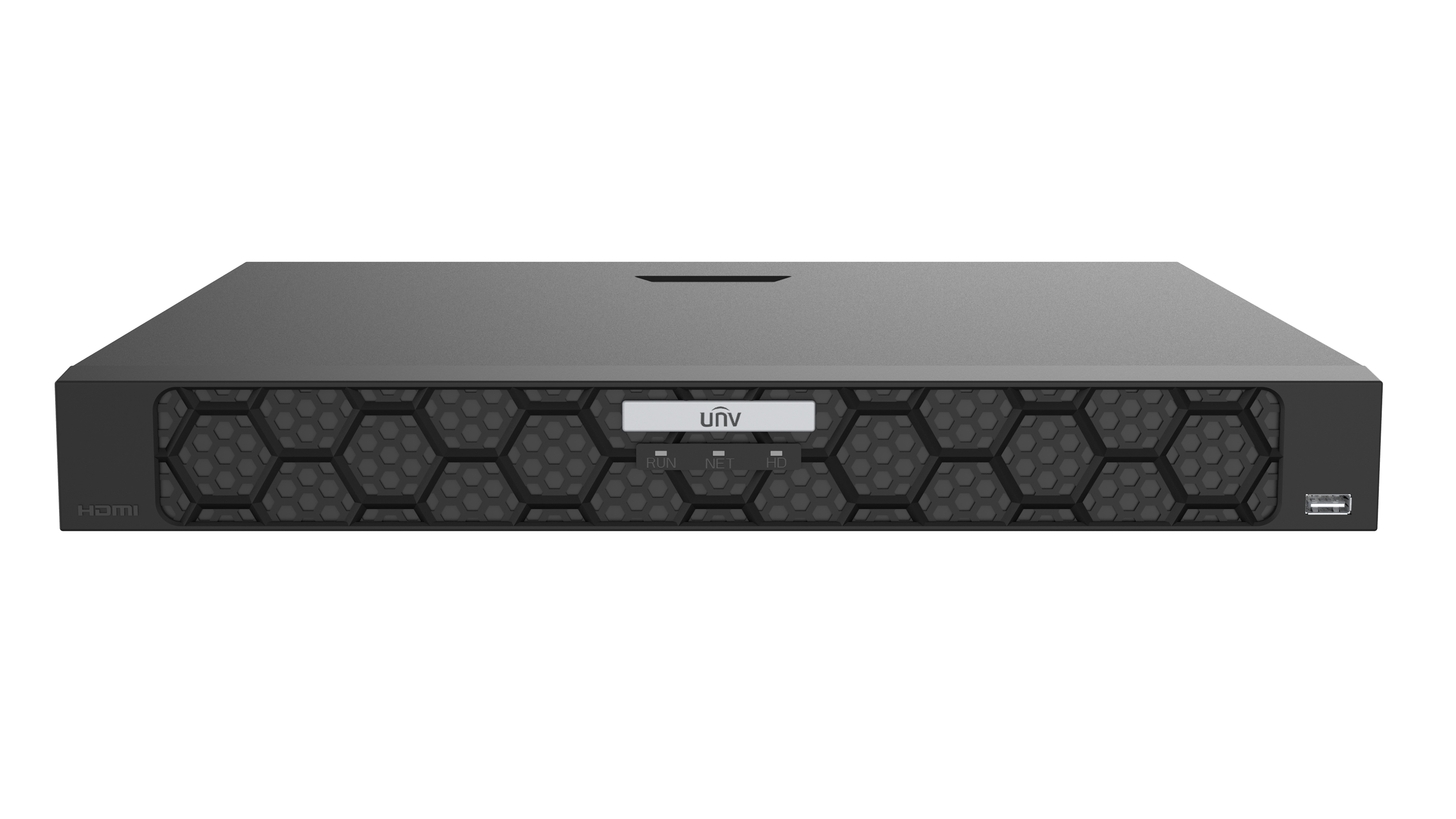

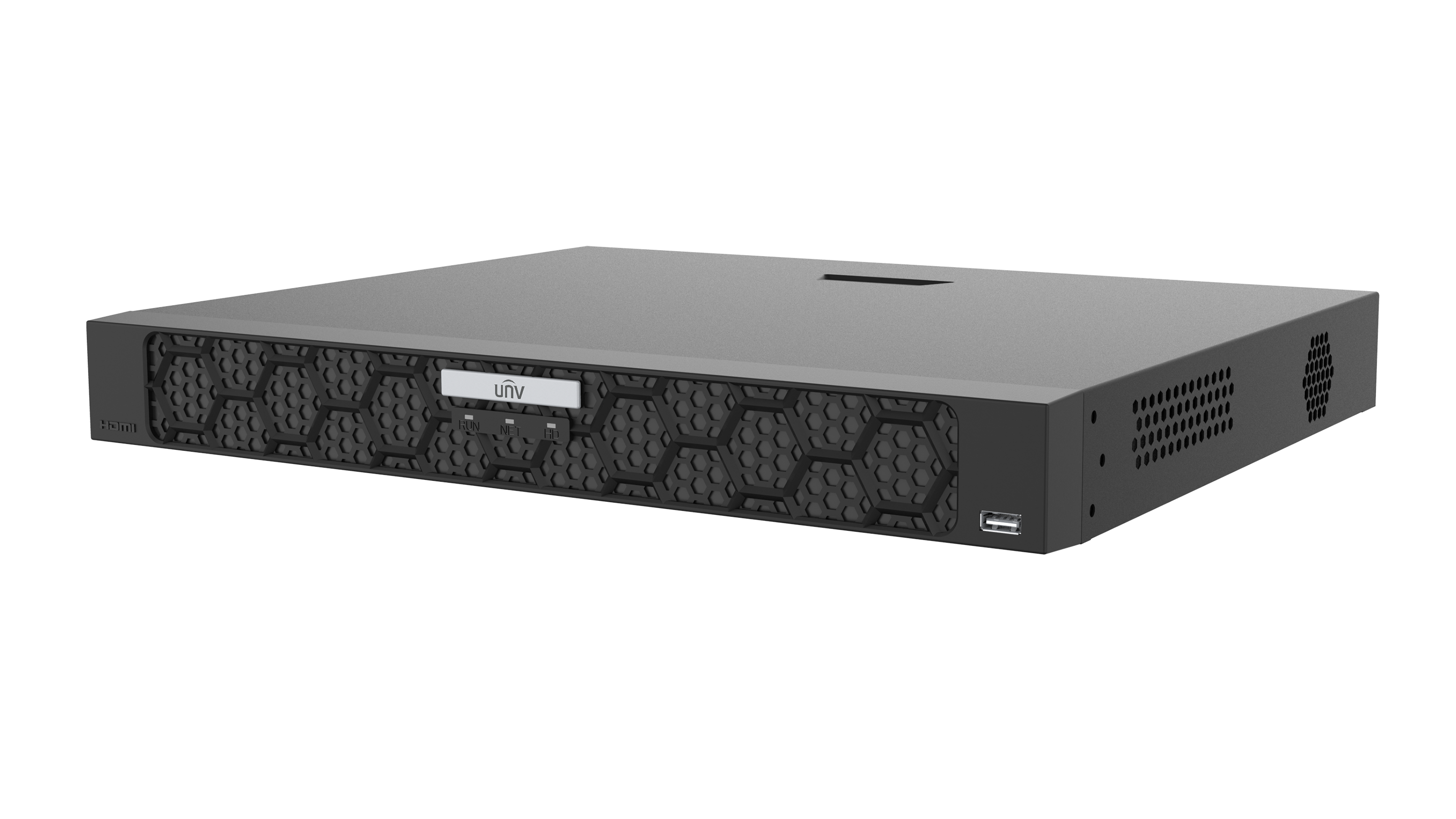

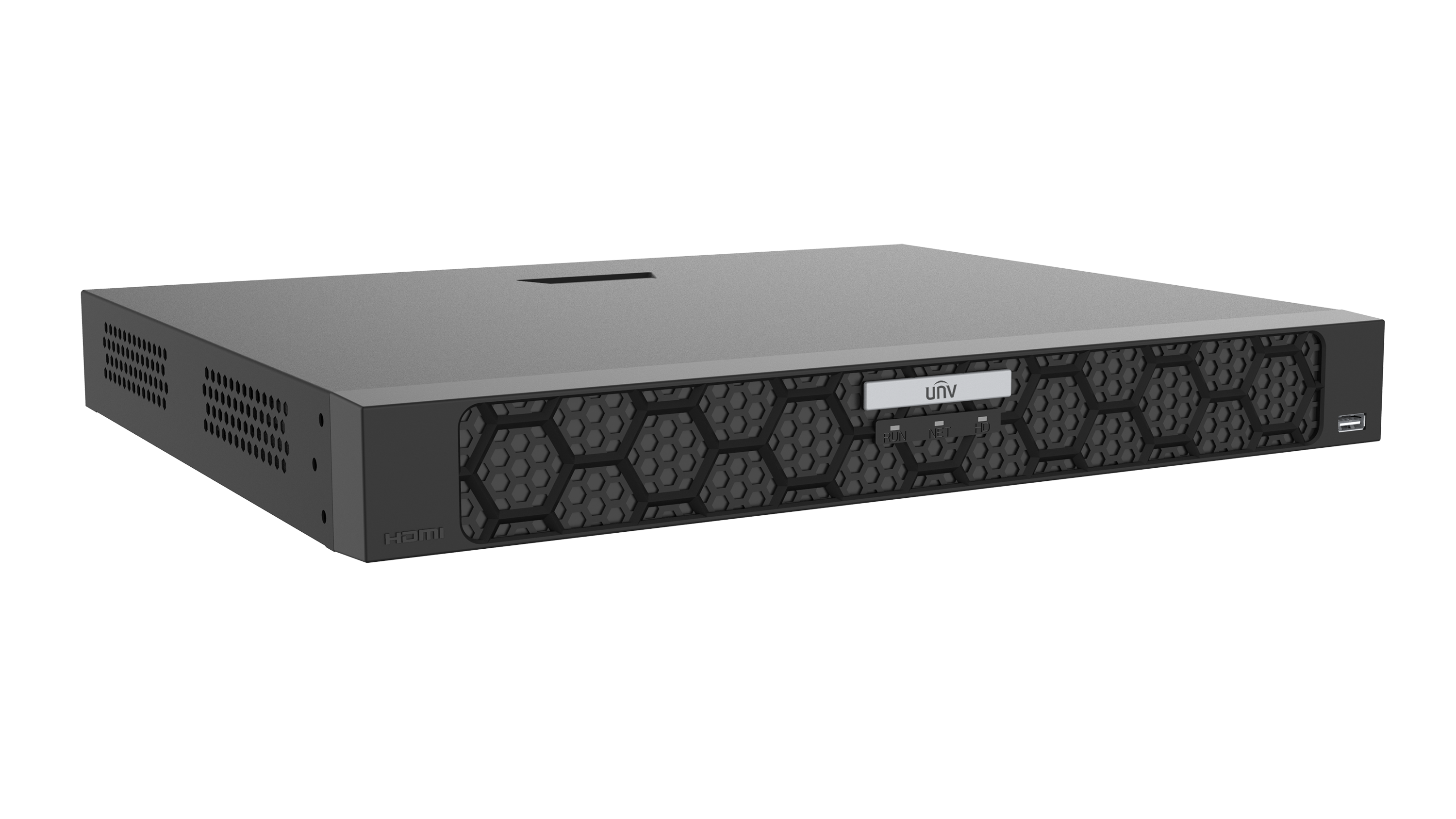

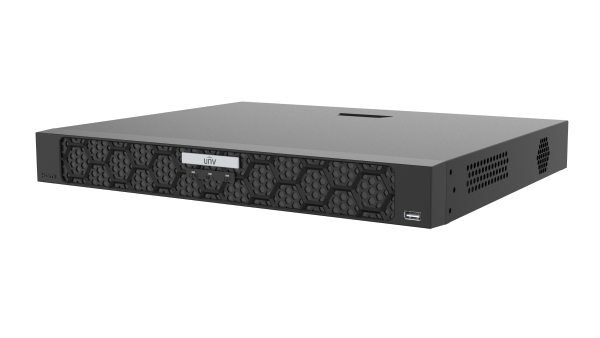

NVR502-08B-P8-IQ - Uniview - Leader of AIoT Solution

NVR502-08B-P8-IQ

NVR502-16B-P16-IQ

NVR502-32B-P16-IQ

Decoding

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30
Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 8 x 1080P@30

Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30

Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30
Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1

Decoding Capability Description

The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.

Audio Compression

G.711A, G.711U

Network

Incoming Bandwidth

Smart Off：320Mbps
Smart On：160Mbps

Outgoing Bandwidth

160 Mbps

Remote Users

128

Protocols

TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4

Browser(Plugin)

Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

Video/Audio Input

IP Video Input

8-ch

16-ch

32-ch

RCA Audio Input

1-ch

Video/Audio Output

HDMI Output

4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

RCA Audio Output

1-ch

Liveview Display

1/4/6/8/9

1/4/6/8/9/16

1/4/6/8/9/16/25/32

Corridor Mode Screen

3/4/5/7/9

3/4/5/7/9/10/12/16

3/4/5/7/9/10/12/16/32

Two-way Audio

1-ch, RCA (Using the audio input and output)

Snapshot

FTP/Schedule/Event Snapshot

4-ch snapshot, up to 4K resolution

Recording

Recording Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF

Synchronous Playback in Local

16-ch

Smart

VCA Detection by IPC

Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring

Smart by NVR

Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)

VCA Search

Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch

Smart by IPC

All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Search by Image

Support

Vehicle Picture Library

Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

SIP by NVR

4-ch

UMD by NVR

8-ch

Capacity of Snapshot Records

2 millions records for face snapshot, 2 millions records for vehicle snapshot, 3 millions records for SIP, 2 millions records for video Metadata

Alarm

General Alarm

Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection

Alert Alarm

IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA

2 SATA Interfaces

Capacity

Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)

Disk Group

Support

Redundant Storage

Support

Disk Array Type

RAID 1

External Interface

Network Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB

Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0

RS485

RS232

N/A

Alarm In

8-ch

Alarm Out

2-ch

Power Supply

AC 100~240V

Power Switch

Support

PoE

PoE Interface

8 RJ45 10M/100M self-adaptive Ethernet Interface

16 RJ45 10M/100M self-adaptive Ethernet Interface

Max Power

Max 30W for single port, Max 130W in total

Max 30W for single port, Max 240W in total

Supported Standard

IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature

-10 °C ~ 50 °C (14 °F ~ 122 °F)

Working Humidity

≤ 90% RH (non-condensing)

Power Consumption (without HDD)

≤ 12W

Dimensions

Weight (without HDD)

≤ 2.7Kg (6.0lb)

Height

Dimensions

380mm × 322mm × 53mm (15.0"×12.7"×2.1")

Certification

CE; FCC; UL; RoHS; WEEE

EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035

FCC

Part15 Subpart B
