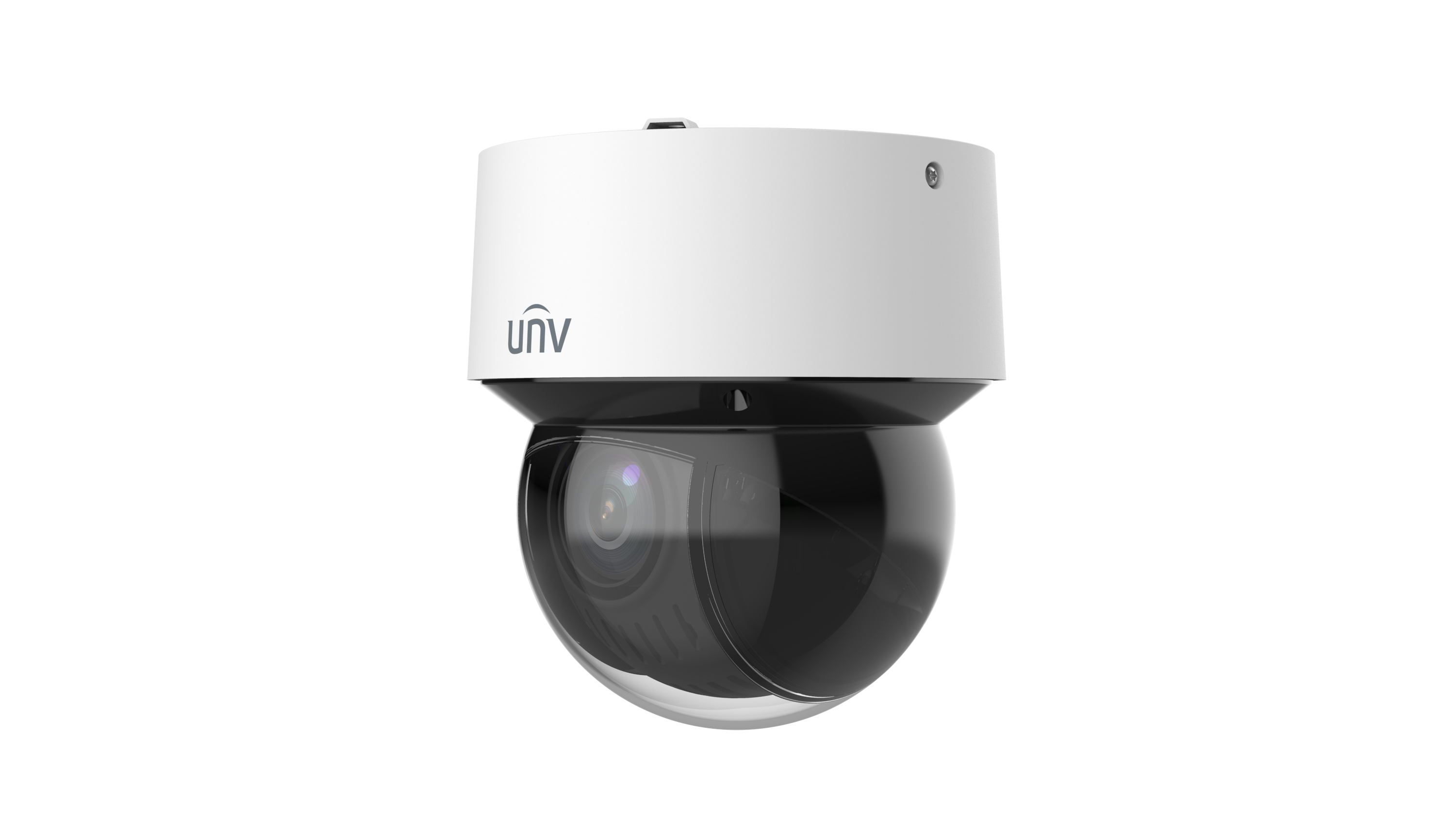

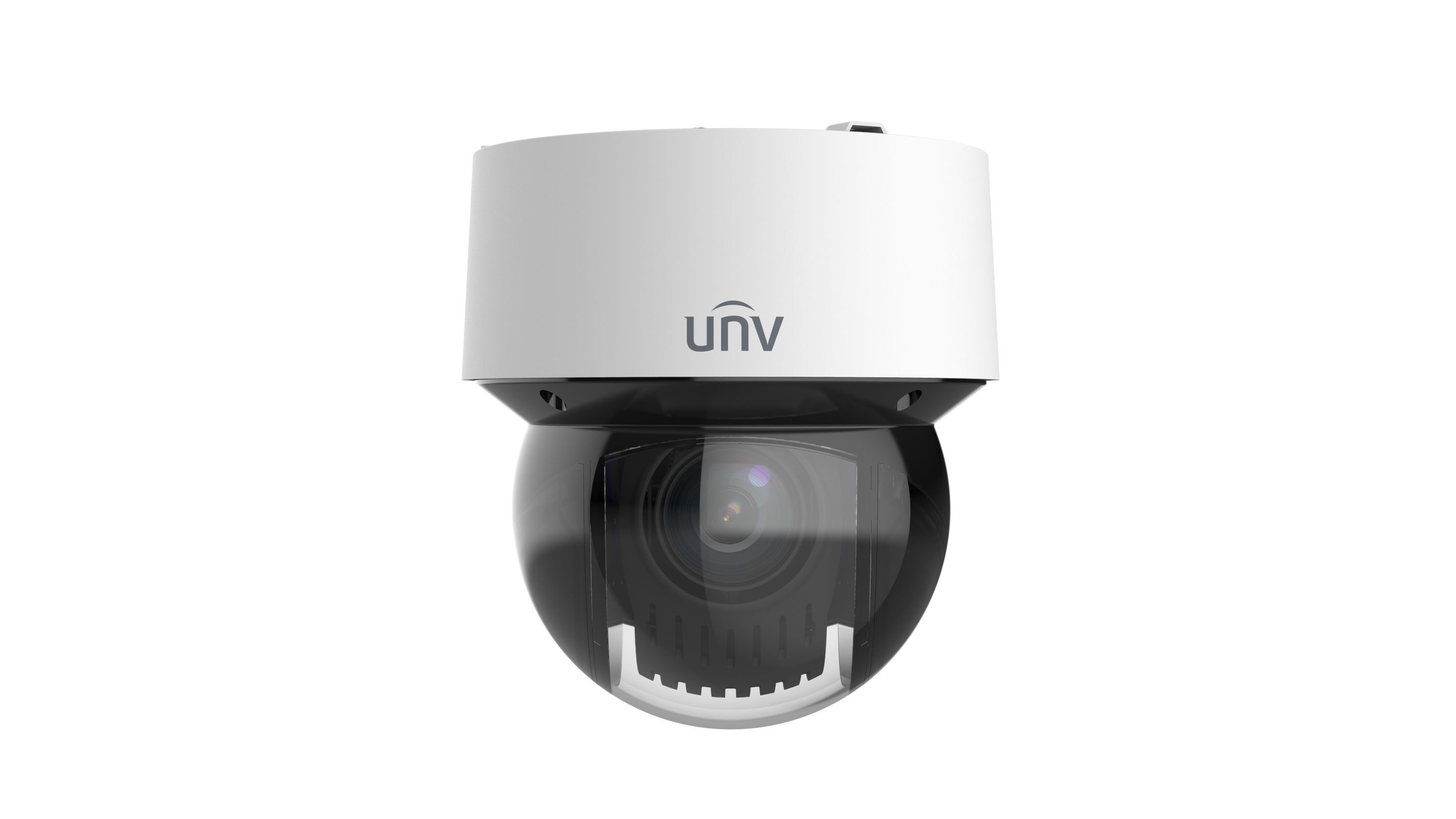

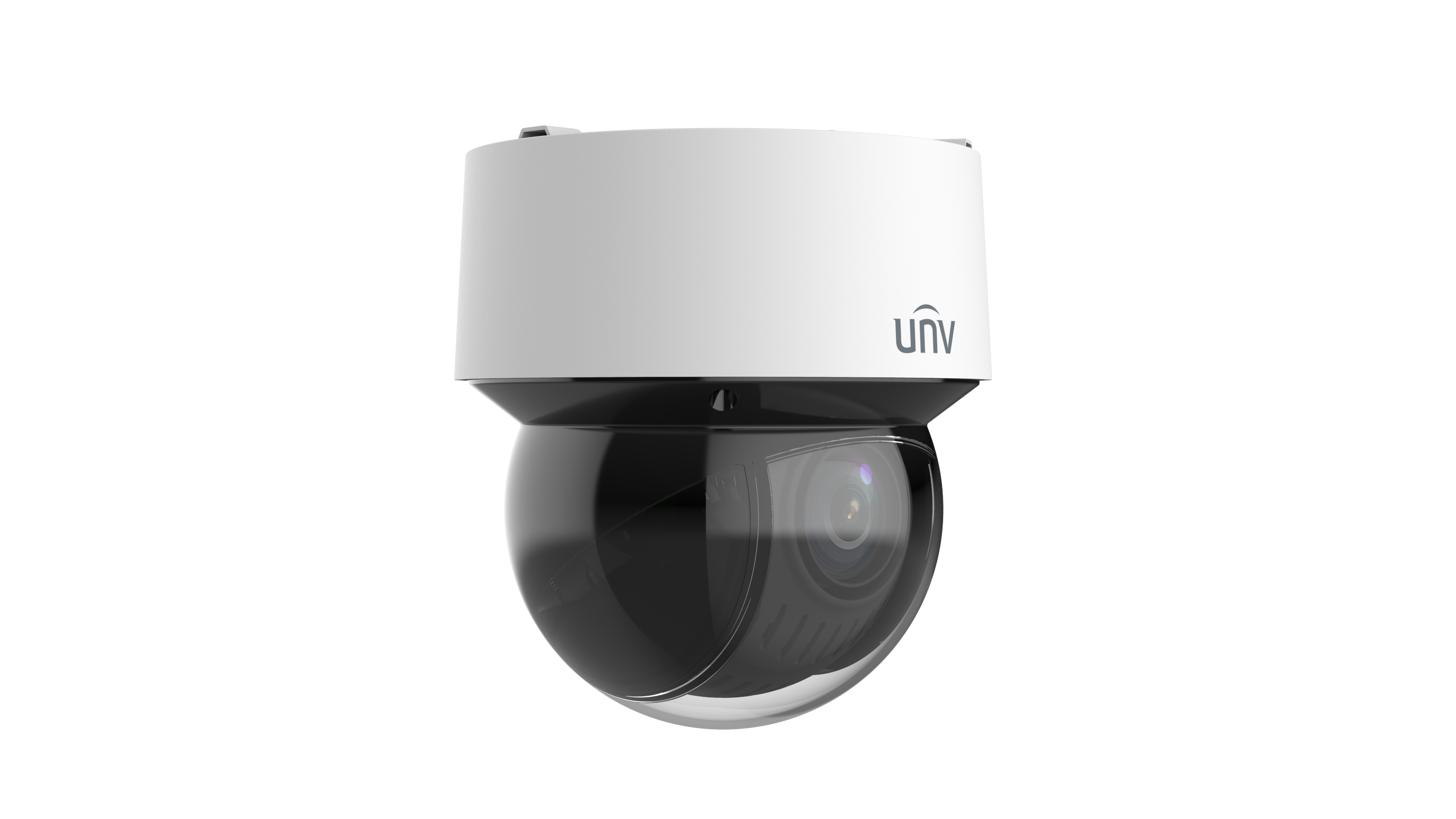

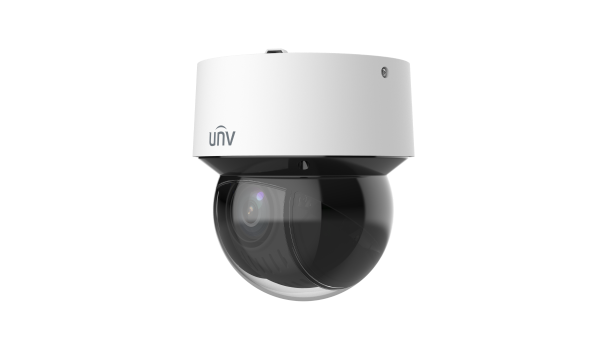

IPC6432LR-X16-VG1 | ||||||||
Camera | ||||||||
Max Resolution | 2MP | |||||||
Sensor | 1/2.8" CMOS | |||||||
Min. Illumination | Colour: 0.003 Lux (F1.78, AGC ON) 0 Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
WDR | 120dB | |||||||
S/N | >52dB | |||||||
Lens | ||||||||
Focal Length | 5.5 ~ 88 mm | |||||||
Optical Zoom | 16X | |||||||
Iris | F1.78-F3.73 | |||||||
Field of View (H) | 52.46°~3.67° | |||||||
Field of View (V) | 30.98°~2.07° | |||||||
Field of View (D) | 64.53°~4.33° | |||||||
DORI | ||||||||
DORI Distance (Detect) | 88.0m~1412.7m(288.7ft~4634.8ft) | |||||||
DORI Distance (Observe) | 35.2m~565.1m(115.5ft~1853.9ft) | |||||||
DORI Distance (Recognize) | 17.6m~282.5m(57.7ft~927.0ft) | |||||||
DORI Distance (Identify) | 8.8m~141.3m(28.9ft~463.5ft) | |||||||
Illuminator | ||||||||
Illumination Distance (IR) | Up to 100m (328 ft) IR range | |||||||
IR On/Off Control | Auto/Manual | |||||||
Wavelength | 850 nm | |||||||
Video | ||||||||
Privacy Mask | 24 areas, up to 4 areas per scene | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps Sub Stream: 720P(1280*720), Max 60fps | |||||||
Video Bit Rate | 128 Kbps ~ 16 Mbps | |||||||
U-code | Support | |||||||
ROI | Support | |||||||
Video Stream | Dual Streams | |||||||
OSD | Up to 4 OSDs | |||||||
Image | ||||||||
Defog | Digital Defog | |||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | |||||||
Digital Noise Reduction | 2D/3D DNR | |||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | |||||||
HLC | Support | |||||||
BLC | Support | |||||||
Smart IR | Support | |||||||
Intelligent | ||||||||
Auto Tracking | Support, target filtering: human and vehicle | |||||||
Smart Intrusion Prevention | Cross line detection, Intrusion detection (support false alarm filtering and the classification of human and vehicle) | |||||||
Events | ||||||||
Basic Detection | Motion Detection, Tampering Alarm, Audio Detection | |||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, Alarm Input | |||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | |||||||
Audio Bitrate | 128 Kbps | |||||||
Two-way Audio | Support | |||||||
Suppression | Support | |||||||
Sampling Rate | 16KHZ | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | |||||||
Network Storage | ANR, NAS (NFS) | |||||||
Network | ||||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
Protocols | IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
Client | EZStation, UNV-Link, UNV-Link Pro | |||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
PTZ | ||||||||
Pan Range | 360°(endless) | |||||||
Pan Speed | 0.1°/s~240°/s | |||||||
Tilt Range | –5°~90°(auto flip) | |||||||
Tilt Speed | 0.1°/s~120°/s | |||||||
Number of Presets | 1024 | |||||||
Route Patrol | 16 patrols, up to 32 actions for each patrol | |||||||
Recorded Patrol | 16 patrols, up to 128 actions for each patrol | |||||||
Preset Patrol | 16 patrols, up to 64 presets for each patrol | |||||||
Patrol Stay Time | 15s ~ 1800s | |||||||
Home Position | Support | |||||||
Interface | ||||||||
Audio I/O | 1 Input: impedance 1kΩ; amplitude 2.5V [p-p], 1 Output: impedance 600Ω; amplitude 2.5V [p-p] | |||||||
Alarm I/O | 2/1 | |||||||
Serial Port | 1*RS485 | |||||||
Network | 1*RJ45 10M/100M Base-TX Ethernet | |||||||
Certification | ||||||||
EMC | CE-EMC (EN 55032: 2015+A11:2020+A1:2020,EN IEC 61000-3-2: 2019+A1: 2021,EN 61000-3-3: 2013+A1: 2019+A2:2021,EN 50130-4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863) | |||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||||
General | ||||||||
Power | DC12V(±10%,3A), PoE+(IEEE 802.3at) | |||||||
Power Consumption | Max 23W | |||||||
Power Interface | Ø 5.5 mm coaxial power plug | |||||||
Dimensions | Ø 167 x 181mm (Ø 6.6” x 7.1”) (Ø x H) | |||||||
Weight | 2.3Kg(5.07lb) | |||||||
Working Environment | -40℃~65℃ (-40°F~149°F), Humidity: ≤95% RH (non-condensing) | |||||||
Storage Environment | -40℃~70℃ (-40°F~158°F), Humidity: ≤95% RH (non-condensing) | |||||||
Surge Protection | 6KV | |||||||
Reset Button | Support |
