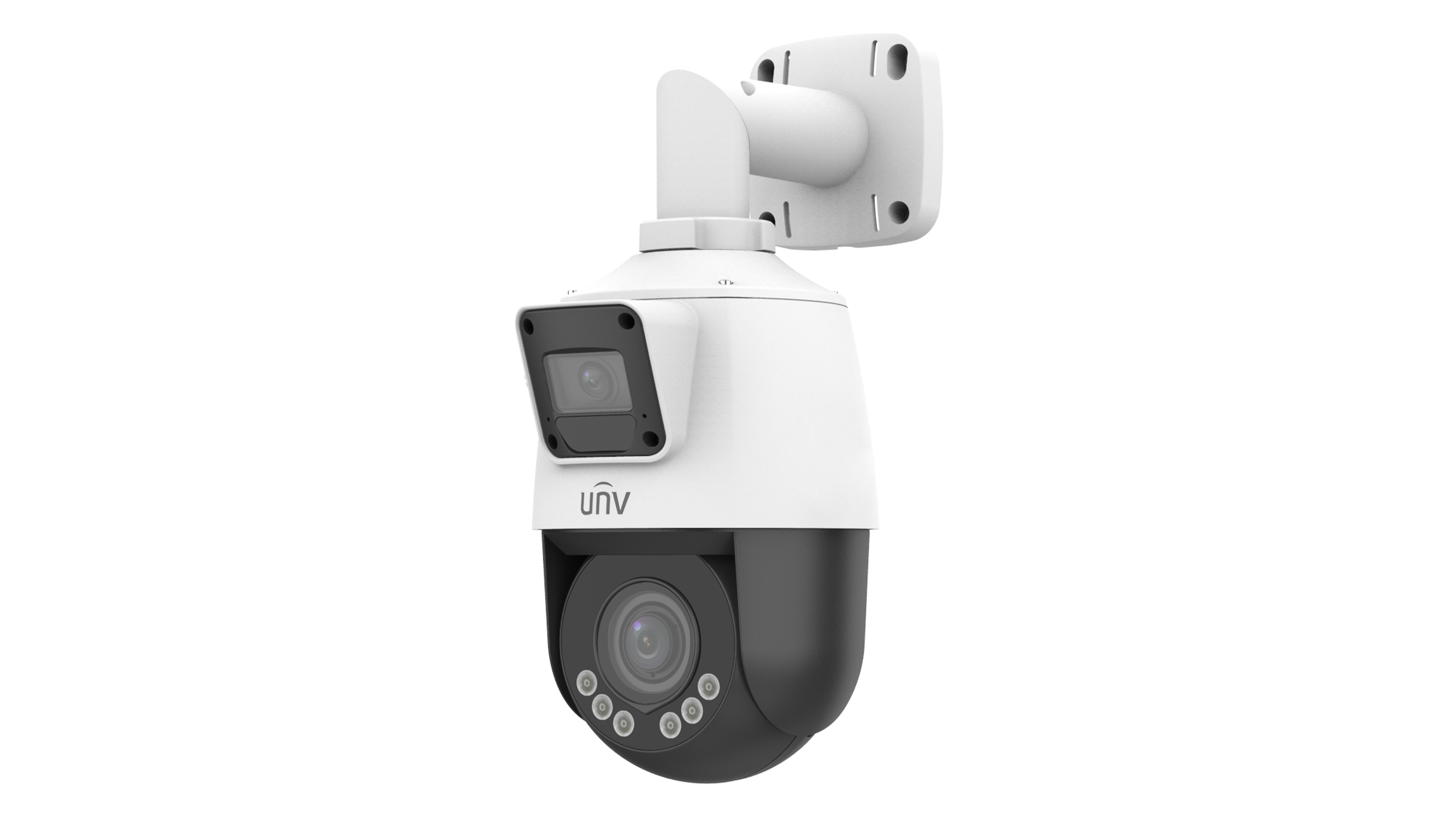

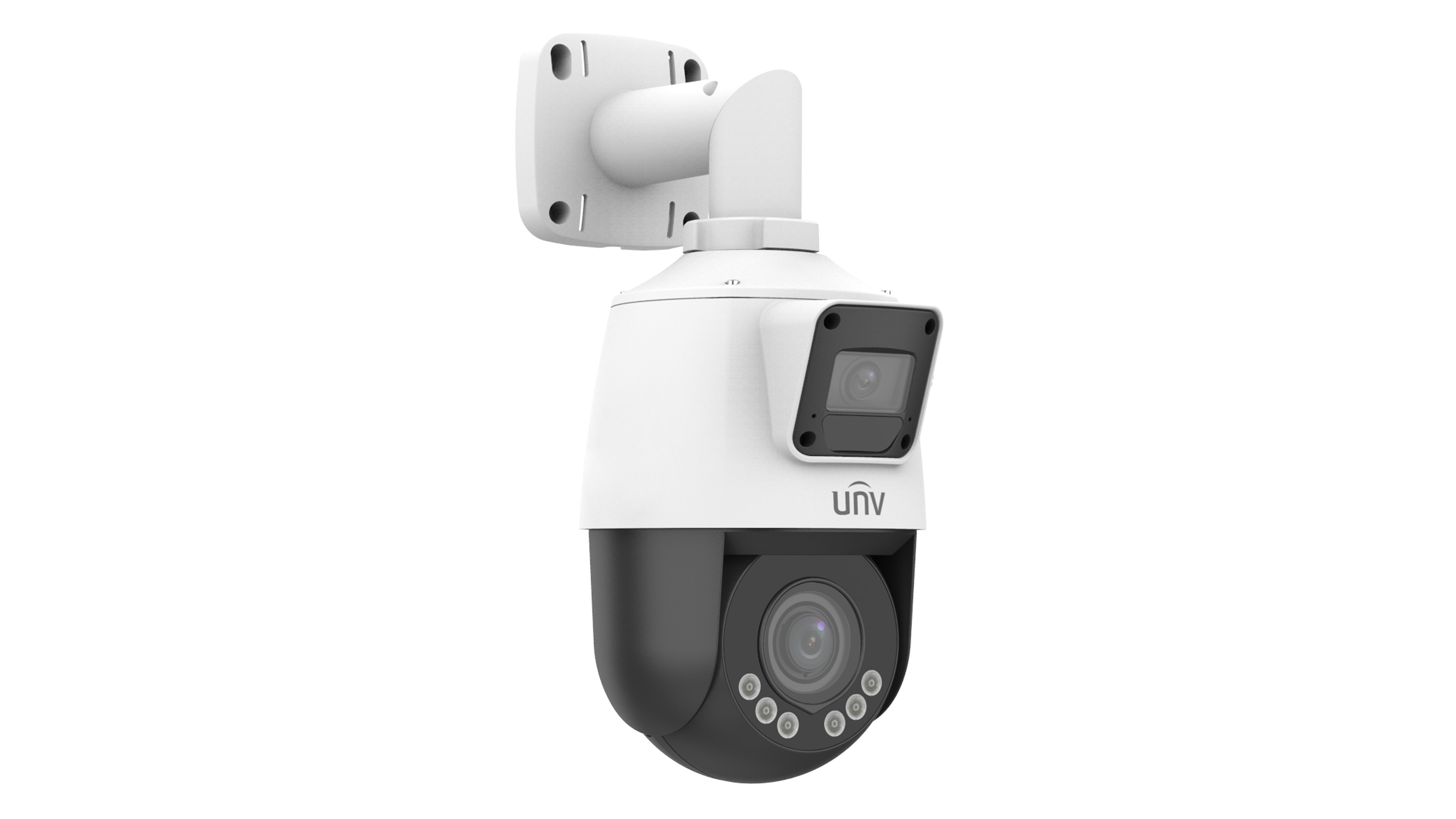

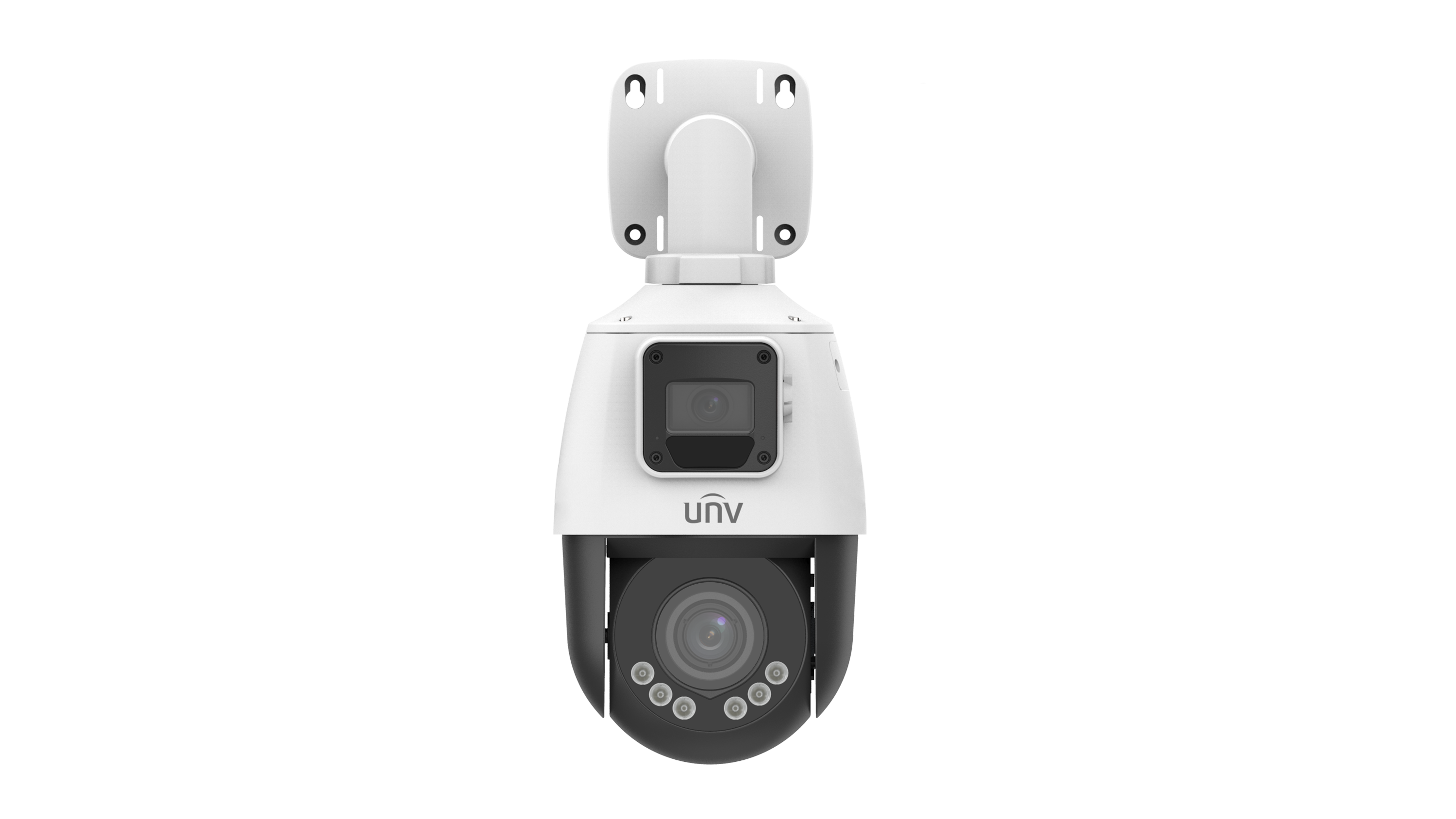

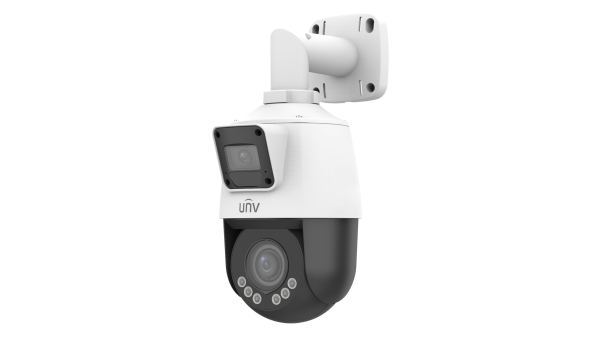

IPC9312LFW-AF28-2X4 | ||||||||
Channel | ||||||||
Camera | ||||||||
Sensor | 1/2.8" CMOS | 1/2.8" CMOS | ||||||
Min. Illumination | Color: 0.002 lux (F1.6, AGC ON) 0 lux with IR |
Color: 0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light |
||||||
Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | ||||||
Shutter | Auto/Manual, 1 to 1/100000 s | Auto/Manual, 1 to 1/100000 s | ||||||
WDR | 120 dB | 120 dB | ||||||
S/N | >52 dB | >52 dB | ||||||
Lens | ||||||||
Focal Length | 2.8 mm | 2.8 to 12 mm | ||||||
Optical Zoom | N/A | 4X | ||||||
Iris | F1.6 | F1.6 | ||||||
Field of View (H) | 102.4° | 106.6° ~ 30.6° | ||||||
Field of View (V) | 54.9° | 56.5° ~ 17.4° | ||||||
Field of View (D) | 133.1° | 138.6° ~ 37.6° | ||||||
DORI | ||||||||
DORI Distance (Detect) | 43.4 m (142.5 ft) | 43.4 m ~ 162.9 m (142.5 ft ~ 534.6 ft) | ||||||
DORI Distance (Observe) | 17.4 m (57.0 ft) | 17.4 m ~ 65.2 m (57.0 ft ~ 213.8 ft) | ||||||
DORI Distance (Recognize) | 8.7 m (28.5 ft) | 8.7 m ~ 32.6 m (28.5 ft ~ 106.9 ft) | ||||||
DORI Distance (Identify) | 4.3 m (14.3 ft) | 4.3 m ~ 16.3 m (14.3 ft ~ 53.5 ft) | ||||||
Illuminator | ||||||||
Wavelength | 850 nm | 850 nm | ||||||
Light On/Off Control | Auto/Manual | Auto/Manual | ||||||
Illumination Distance (IR) | 10 m (32.8 ft) | 50 m (164.0 ft) | ||||||
Illumination Distance (Warm Light) | N/A | 10 m (32.8 ft) | ||||||
Image | ||||||||
Defog | Digital Defog | Digital Defog | ||||||
White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 | ||||||
Digital Noise Reduction | 2D/3D DNR | 2D/3D DNR | ||||||
Smart IR | Support | Support | ||||||
Flip | Normal, Flip Vertical, Flip Horizontal, 180° | Normal, Flip Vertical, Flip Horizontal, 180° | ||||||
HLC | Support | Support | ||||||
BLC | Support | Support | ||||||
Intelligent | ||||||||
Linkage Function | Support. Triggered by fixed lens via smart intrusion prevention function to track target | Support. Triggered by fixed lens via smart intrusion prevention function to track target | ||||||
Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | ||||||
Video | ||||||||
Frame Rate-Main Stream | 2MP (1920 x 1080) @25 fps (Default) 2MP (1920 x 1080), Max 25 fps 720P (1280 x 720), Max 25 fps |
2MP (1920 x 1080) @25 fps (Default) 2MP (1920 x 1080), Max 25 fps 720P (1280 x 720), Max 25 fps |
||||||
Frame Rate-Sub Stream | 720P (1280 x 720), Max 25 fps D1 (720 x 576), Max 25 fps 640 x 360, Max 25 fps 2CIF (704 x 288), Max 25 fps CIF (325 x 288), Max 25 fps |
720P (1280 x 720), Max 25 fps D1 (720 x 576), Max 25 fps 640 x 360, Max 25 fps 2CIF (704 x 288), Max 25 fps CIF (325 x 288), Max 25 fps |
||||||
Privacy Mask | 24 areas, up to 4 areas per scene | 24 areas, up to 4 areas per scene | ||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | Ultra 265, H.265, H.264, MJPEG | ||||||
Video Bit Rate | 128 Kbps to 16 Mbps | 128 Kbps to 16 Mbps | ||||||
U-code | Support (Main stream) | Support (Main stream) | ||||||
ROI | Support | Support | ||||||
Video Stream | Dual Streams | Dual Streams | ||||||
OSD | Up to 4 OSDs | Up to 4 OSDs | ||||||
Events | ||||||||
Basic Detection | Motion Detection, Audio Detection | Motion Detection, Audio Detection | ||||||
General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
PTZ | ||||||||
Pan Range | N/A | 0° ~ 345° | ||||||
Pan Speed | N/A | 1°/s ~ 40°/s | ||||||
Tilt Range | 18° ± 5° | -10° ~ 100° | ||||||
Tilt Speed | N/A | 2°/s ~ 50°/s | ||||||
Number of Presets | N/A | 256 | ||||||
Preset Patrol | N/A | 16 patrols, up to 64 presets for each patrol | ||||||
Patrol Stay Time | 1000 s to 1800 s | 1000 s to 1800 s | ||||||
Home Position | N/A | Support | ||||||
Audio | ||||||||
Audio Compression | G.711U, G.711A | G.711U, G.711A | ||||||
Audio Bitrate | 128 Kbps | 128 Kbps | ||||||
Two-way Audio | Support | Support | ||||||
Suppression | Support | Support | ||||||
Sampling Rate | 16KHz | 16KHz | ||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 512 GB | Micro SD, up to 512 GB | ||||||
Network Storage | ANR, NAS (NFS) | ANR, NAS (NFS) | ||||||
Network | ||||||||
Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile M), API, SDK | ONVIF (Profile S, Profile G, Profile M), API, SDK | ||||||
User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | Up to 32 users. 3 user levels: administrator, common user and operator | ||||||
Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | ||||||
Client | EZStation, UNV-Link, UNV-Link Pro | EZStation, UNV-Link, UNV-Link Pro | ||||||
Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ | ||||||
Interface | ||||||||
Built-in Mic | Built-in two mics | Built-in two mics | ||||||
Built-in Speaker | Support | Support | ||||||
Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | 1 × RJ45 10 M/100 M Base-TX Ethernet | ||||||
Certification | ||||||||
EMC | CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
||||||
Environment | CE-ROHS (2011/65/EU) | CE-ROHS (2011/65/EU) | ||||||
Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||
General | ||||||||
Power | DC12V, PoE+ (IEEE 802.3at) | DC12V, PoE+ (IEEE 802.3at) | ||||||
Power Consumption | MAX 16W | MAX 16W | ||||||
Power Interface | Ø5.5 mm coaxial power plug | Ø5.5 mm coaxial power plug | ||||||
Dimensions | Wall Mount: 192 x 134 x 302 mm (7.6" x 5.3" x 11.9") (L x W x H) Ceiling Mount: 154 x 134 x 363 mm (6.1" x 5.3" x 14.3") (L x W x H) |
Wall Mount: 192 x 134 x 302 mm (7.6" x 5.3" x 11.9") (L x W x H) Ceiling Mount: 154 x 134 x 363 mm (6.1" x 5.3" x 14.3") (L x W x H) |
||||||
Weight | 1.03 kg (2.27 lb) | 1.03 kg (2.27 lb) | ||||||
Working Environment | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Storage Environment | -30 ℃ to 70 ℃ (-22 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | -30 ℃ to 70 ℃ (-22 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) | ||||||
Surge Protection | 2 KV | 2 KV | ||||||
Reset Button | Support | Support | ||||||
Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
